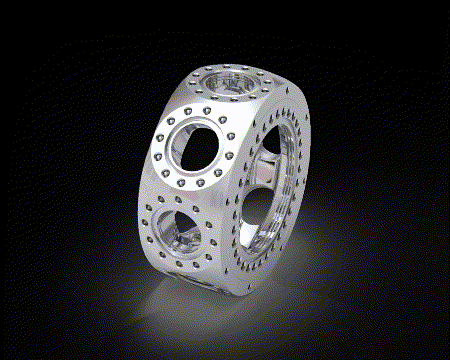

Multi-CF Spherical Cube UHV Vacuum Chamber
To enjoy the evolving portfolio of our Kimball Physics Facilities and Campus Tour, please visit Kimball Physics: Facilities, Campus and Surrounding Woodlands Tour in the Learning Center.
Work in Progress.
Please see Electron Gun Beam Systems: Selection Guide in the Learning Center.
Summary from Online Searches of Technical and Science Literature for Kimball Physics Products in Selected Categories
TRAPPED-ION QUANTUM COMPUTING CITATIONS
| PAPER | INSTITUTION | YEAR | KP PRODUCT USED | HOW USED |
|---|---|---|---|---|
| “A Room-Temperature XHV System for Trapped-Ion QIP” (arXiv:2512.11794) | University of Waterloo (IQC) | 2025 | 6″ Spherical Square (53-140320); 4.5″ Spherical Cube (evaluated) | Science chamber for XHV ion trap; selected via molecular flow simulation |
| “Developing the Tools for Effective Quantum Simulation with Trapped Ions” (PhD thesis) | Duke University | 2025 | “Kimball Octagon” | Science chamber for Yb+ ion trapping quantum computing research |
| “Spin-Motion Entanglement with a Single Mode-Locked Laser Pulse” (dissertation) | UC Santa Barbara | 2021 | MCF800-ExtOct-G2C8A16 (8″ Extended Octagon) | Vacuum chamber for trapped atomic ions used as qubits |
| “QSCOUT: Design Details and User Guide” | Sandia National Laboratories | Published | 6″ CF Spherical Square | DOE-funded trapped-ion quantum computing testbed (QSCOUT) |
| Trapped-ion thesis — ion-atom trap apparatus | MIT | 2011 | MCF450-SO20008 (4.5″ Spherical Octagon) | Ion-atom hybrid trap; “non-custom vacuum chamber with maximal solid angle for light collection” |
| Ion trap paper (arXiv:0901.4742) | University of Washington | 2010 | 4.5″ ConFlat Spherical Octagon | Ba+ single-ion trap; ion held for several days without laser cooling |
NEUTRAL ATOM / COLD ATOM CITATIONS
| PAPER | INSTITUTION | YEAR | KP PRODUCT USED | HOW USED |
|---|---|---|---|---|
| “Building Blocks of an Integrated Neutral Atom Quantum Computer” (thesis) | University of Wisconsin–Madison | Recent | 6″ Spherical Octagon; Groove Grabbers; MCF800-ThnFlg-G2-400 | Science chamber for neutral atom quantum computer; optical chip mounted using Groove Grabbers |
| “Laser Cooling, Trapping, and Coherent Control of SrF” (thesis) | University of Chicago | Published | MCF600-SphOct-F2C8; MCF800-SphSq-G2E4C4A16; MCF800-ThnFlg-G2-400 | Multi-chamber molecular trapping system; “chamber chosen to provide as much optical access as possible” |
| “Fast Loaded Dual Species MOT of Cold Sodium and Rubidium” | AIP Advances | 2023 | MCF600-SphOct-F2C8 (non-magnetic stainless steel) | Dual-species magneto-optical trap |
| “An Atomic Beam of Titanium for Ultracold Atom Experiments” (arXiv:2406.07779) | DOE Quantum Systems Accelerator | 2024 | 6″ Spherical Square (53-140320) | Ti atom source for quantum simulation |
CATHODES AND BEAM PRODUCTS
| PAPER | INSTITUTION | YEAR | KP PRODUCT USED | HOW USED |
|---|---|---|---|---|
| “The ALPHA-2 Apparatus” | CERN | 2025 | ES-064 Barium Oxide cathodes | Electron sources for CERN antihydrogen trapping — precision quantum tests of CPT symmetry |
| “A Very Low Energy Compact EBIT” | Review of Scientific Instruments | 2012 | LaB6 cathode | Electron beam ion trap |
| Gravity Probe B charge neutralization | Stanford / NASA | 2008 | Electron/ion gun | Spacecraft charge neutralization for general relativity experiment |

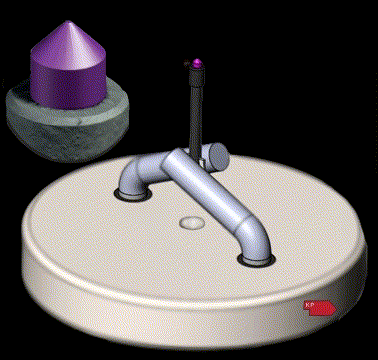

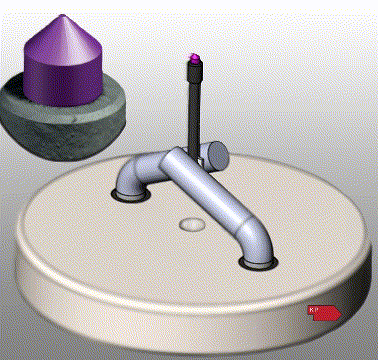

| PARAMETER | CATHODE ES-423E | CATHODE ES-462 (Pincer) | CATHODE ES-423GR |
|---|---|---|---|
| Cathode Material | Lanthanum Hexaboride (LaB6) single crystal <100> | Lanthanum Hexaboride (LaB6) single crystal <100> | Lanthanum Hexaboride (LaB6) single crystal <100> |
| Cathode Shape | Cone Geometry with 60° or 90° sides and precision micro-flat tip at apex. Full cylindrical with flat (180°) also available. | Cone Geometry with 60° or 90° sides and precision micro-flat tip at apex.
Pincer Mount for stable and optimized current, cathode emission and spatial positioning. |
Guard Ring Design with optimized emission from micro-flat surface, conic regions are not exposed.
Cone available with 60° or 90° sides and variable micro-flat tip diameter. |
| Microflat Size | Standard: 6, 15, 20, 50, 100, 300 microns available on conical geometry. 330 microns flat (180°). Other sizes available custom. | Standard: 6, 15, 20, 50, 100, 300 microns available on conical geometry. 330 microns flat (180°). Other sizes available custom. | Range: 0.010 to 0.250 mm dia. (10 – 250 microns) <100> oriented-single crystal. |
| Heater | Single piece carbon rod | Single piece carbon rod | Single piece carbon rod |
| Emission Area | 2.83 x 10-7 cm2 to 8.55 x 10-4 cm2,
Microflat area excluding conical sides |
2.83 x 10-7 cm2 to 8.55 x 10-4 cm2 Microflat area, excluding conical sides |
Range: 7.8 x 10-7 cm2 to 4.9 x 10-4 cm2 |
| Heating Current | 1.7A to 2.1A | 1.7A to 2.3A (system dependent) | 1.7A to 2.1A |
| Cathode Loading | 15 A/cm2 recommended for optimal performance** | 15 A/cm2 recommended for optimal performance** | 15 A/cm2 recommended for optimal performance** |
| Brightness | >106 A/cm2/sr | >106 A/cm2/sr | >106 A/cm2/sr |
| Work Function | 2.69 eV | 2.69 eV | 2.69 eV |
| Operating Temp | Approx. 1700-1900K | Approx. 1700-1900K | Approx. 1700-1900K |
| Energy Spread | Approx. 0.4 eV | Approx. 0.4 eV | Approx. 0.4 eV |
| Lifetime | Thousand plus hours with medium currents, good vacuum | Thousand plus hours with medium currents, good vacuum | Thousand plus hours with medium currents, good vacuum |
| Vacuum Level | 10-7 Torr or better recommended | 1 x 10-8 to 5 x 10-7 Torr recommended | 10-7 Torr or better recommended |
| Power Supply Capability | Voltage regulated power supply recommended, 4V, 3A | Voltage regulated power supply recommended, 4V, 3A | Voltage regulated power supply recommended, 4V, 3A |
| Base | AEI, CB-104, electron microscope bases, and other custom bases available | AEI | AEI, CB-104 or on a variety of custom bases are available. |
| Notes | **Higher loading (20-30 A/cm2 or higher) available, but with reduced lifespan. | ||
