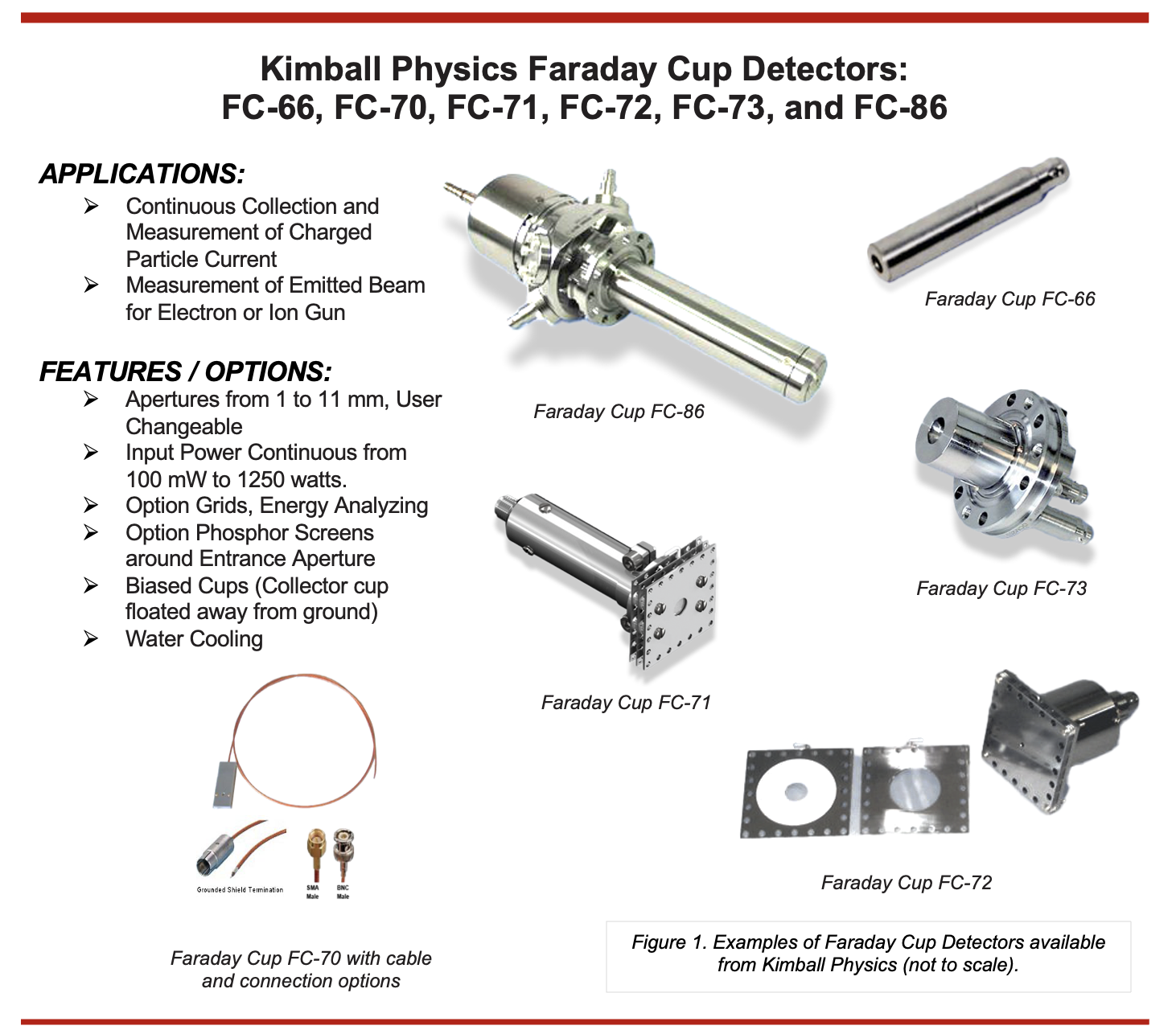

Kimball Physics Faraday Cup Detectors, Applications, Features and Options


Kimball Physics Faraday Cup Detectors are stand-alone units with no moving parts that are intended to be mounted in the vacuum system.  Most of these assemblies mount directly on the housing of electron guns for direct sampling of the beam and can be moved in and out of the beam path using pneumatic or mechanical actuators (Figure 3).  Please refer to the table later in this document for comparison of features available with Kimball Physics Faraday Cup Detectors.

The Faraday Cups are available in various configurations and capabilities, with continuous input power ranges from 100 mW to 1250 watts, aperture sizes from 1 mm to 11.00 mm, with features and options including one or multiple grids and phosphor screens. Configurations are available to be 1) placed and mounted within the vacuum space (FC-66, FC-70, FC-71, FC-72) and then connected externally to the ammeter through a vacuum flange feedthrough (see Kimball Physics product: In-Vacuum BNC Cable and Feedthrough(1.33”CF) or 2) the Faraday Cup is integrated into an assembly mounted directly on the CF flange of the vacuum chamber (FC-73, FC-86).

The Kimball Physics Faraday Cup Detectors, connected to an ammeter, are used to collect and measure charged particle current, such as the beam emitted from an electron or ion gun. Most models are UHV compatible and fully bakeable.

The Faraday cup basically consists of a hollow stainless steel cylinder closed at the base, with an appropriately sized aperture for collecting the electrons or ions. An outer, grounded cylinder provides shielding. An electrical connection is made to the base of the Faraday cup, terminating in a connector.

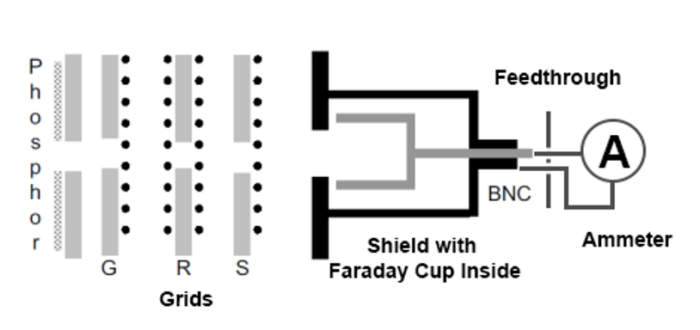

Figure 2. Faraday Cup (FC) schematic showing standard shield with FC inside and optional grids and phosphor screen.

The current is then conducted from the Faraday cup via an electrical Feedthrough Flange from the vacuum space and then connected to an external ammeter for measurement and recording. Kimball Physics has optional feedthroughs available for 0.95” and 1.33” CF flanges (see figure 4). Custom designed feedthroughs are also available from Kimball Physics as a separate option.

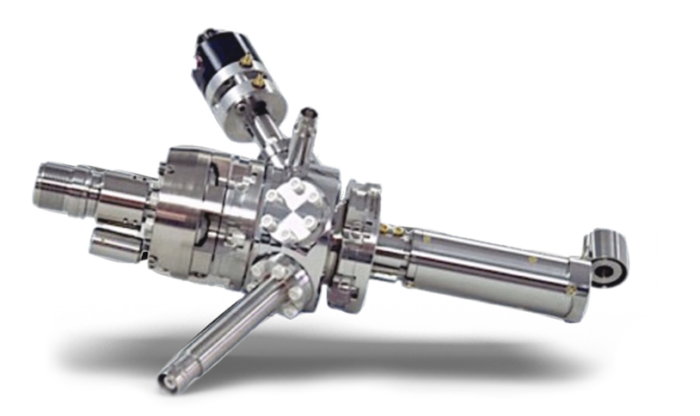

Figure 3. Faraday Cup (FC) mounted on the end of an electron gun with a mechanical actuator to move FC in and out of the beam.



The Kimball Physics Faraday Cup FC-73 comes with a set of three grids so that it can be used also as an energy analyzer. The FC-71 and FC-72 also have these grids available as options.  These grids are, in the order that the electrons or ions go through them: ground, retarding, and suppression, labeled G, R and S in the Figure 2 schematic above.

A variable potential is applied to the retarding grid to analyze the energies of electrons or ions. The grid voltage is negative for electrons/negative ions, or positive for positive ions. The current into the Faraday cup is measured while the retarding grid voltage is varied from zero to a voltage which cuts off the current completely.


A phosphor screen, made with high luminosity P22 phosphor (ZnS: Ag), is available as an option on the front plate of the FC-70, FC-71, FC-72 and is included and removable on the FC-86 Faraday cup. The use of a grounded phosphor target screen is helpful as it allows visual, real-time observation of the spot. The phosphor screen emits a pale blue light (photons) when bombarded by high energy particles (threshold value approximately 500 eV for electrons and 1000 eV for ions).

The screen can be used for gun alignment and to set the proper operating parameters necessary to obtain maximum beam uniformity or minimum spot size. Note that excessive current or exposure may cause phosphor screen damage.


The Faraday cup (FC-66, FC-72, FC-86) can be electrically biased to reduce scattering of electrons or ions collected in the Faraday cup and to reduce secondary electron emission. For electrons or negative ions, +50 V is typically adequate, and for positive ions, -50 V. This can be accomplished by placing a battery between the vacuum feedthrough and the ammeter.


Please refer to the comparison table (Table 1) below to learn more about the various features in our Kimball Physics Faraday Cup Detector models.

And please reach out to Kimball Physics with any questions or to discuss a possible custom solution for your application.

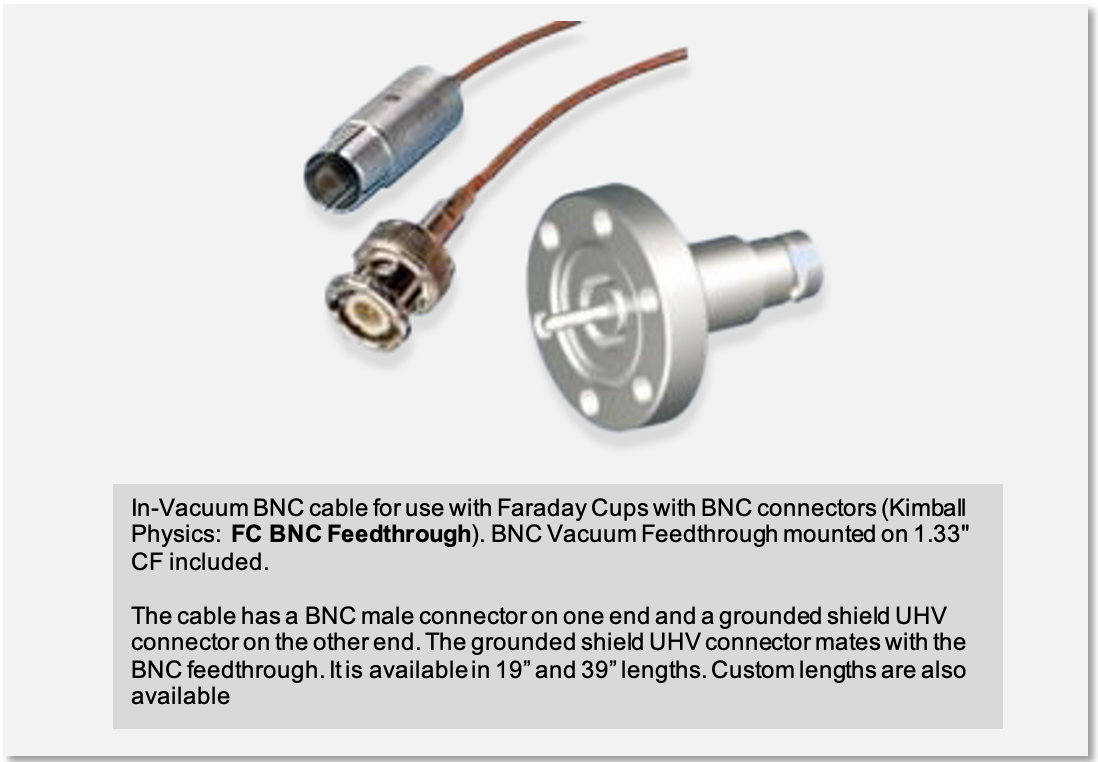

Figure 4. In-Vacuum BNC cable and 1.33” CF feedthrough for Faraday Cup (FC) connection.

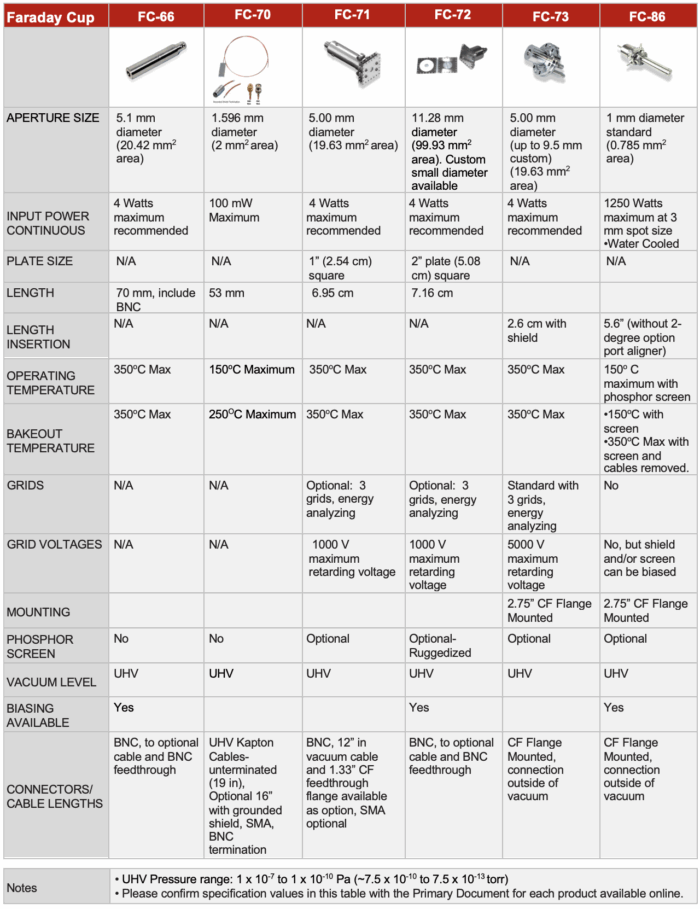

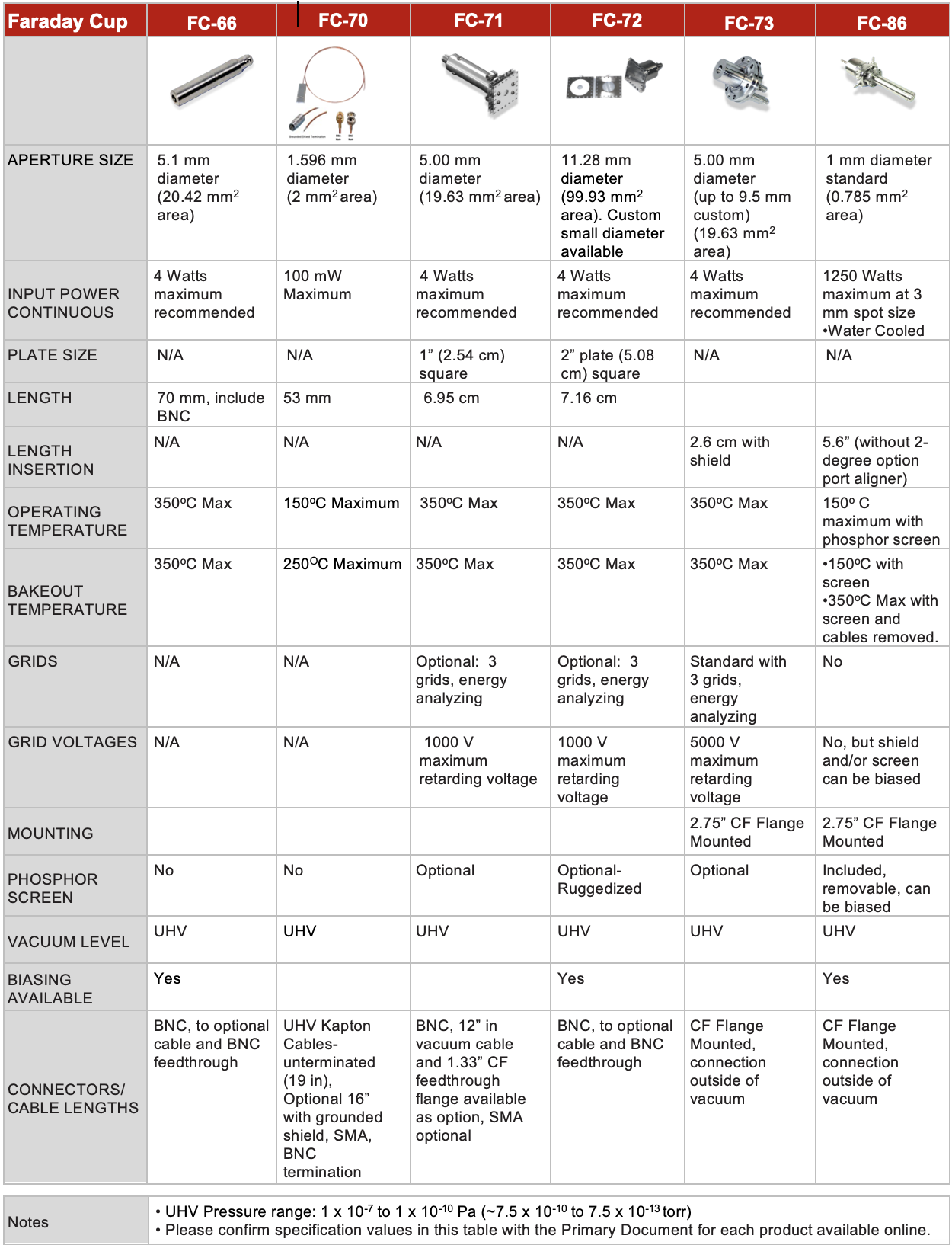

Table 1:  Comparison of Faraday Cup Features and Specifications
