EMG-4215 / EGPS-4215

EMG-4215 / EGPS-4215

Starting Price Tier 1 System – customizations not included:  $74,800

Versatile, modular gun with focusable, wide-angle beam and adjustable beam alignment



Tier System Packages

Please review the table below and choose the pre-configured System Package Tier that includes the base system with selected features included in the Tier Package.  Select the Tier Option you need in the Dropdown check box below.



Customized  System Packages

If you require additional  customizations not included in the pre-configured Tier Systems, please select the Customized option  in the Dropdown check box below. You can then speak with customer service to discuss further the requirements of your system.

Please note that for Customized Systems,  additional engineering fees will apply with longer fabrication / delivery times than experienced with the pre-configured Tier Systems.



To LEARN MORE:

Notes:

  • It is not necessarily possible to achieve maximum specifications simultaneously.
  • There may be limitations of which features / options / customizations can be combined into a single system.
  • Specifications, Availability and Pricing are Subject to Change Without Notice.



Electron Gun System EMG-4215 / EGPS-4215 Tier Package Table

Starting Price Tier 1 System – customizations not included:  $74,800

Versatile, modular gun with focusable, wide-angle beam and adjustable beam alignment



Tier System Packages

Please review the table below and choose the pre-configured System Package Tier that includes the base system with selected features included in the Tier Package.  Select the Tier Option you need in the Dropdown check box below.



Customized  System Packages

If you require additional  customizations not included in the pre-configured Tier Systems, please select the Customized option  in the Dropdown check box below. You can then speak with customer service to discuss further the requirements of your system.

Please note that for Customized Systems,  additional engineering fees will apply with longer fabrication / delivery times than experienced with the pre-configured Tier Systems.



To LEARN MORE:

Notes:

  • It is not necessarily possible to achieve maximum specifications simultaneously.
  • There may be limitations of which features / options / customizations can be combined into a single system.
  • Specifications, Availability and Pricing are Subject to Change Without Notice.



Electron Gun System EMG-4215 / EGPS-4215 Tier Package Table

Categories: ,
Model #: EMG-4215 EGPS-4215

Description

Medium Energy Electron Beam, High Current Density

1 keV to 30 keV

Applications:

  • MBE RHEED Studies
  • Electron Diffraction
  • Space Physics Studies
  • Gas Electron Fluorescence
  • X-ray Generation
  • Heating / Melting / Welding
  • Vacuum Physics Experiments

Features / Options:

  • New Modular Design
  • Internal Alignment During Operation
  • Collimated Beam
  • Spot Size down to 500 μm
  • Medium Current Beams to 5 mA
  • Electrostatic Focus and Deflection
  • Pulsing, Blanking, Rastering
  • UHV Compatible and Bakeable
  • Computer / Remote Control
  • User-Replaceable Firing Units

Energy Range: 1 keV to 30 keV
Beam Current: 1 nA to 5 mA
Spot Size: 0.5 mm to 25 mm Collimated or Flood

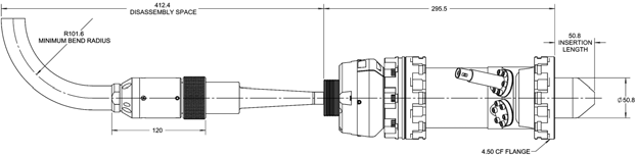

Mounting: 4.5″ CF

The Kimball Physics EMG-4215 Electron Gun, with its matching EGPS-4215 Power Supply, is a multi-purpose modular Electron Gun with applications in many areas. The EMG-4215/ EGPS-4215 is a complete subsystem ready to attach to a user’s vacuum system and turn on. The gun has the capability of producing a collimated, small spot or flood electron beam.

Beam current, beam divergence, and beam energy are all adjustable over wide ranges. The energy can be varied from 1 keV to 30 keV. With the lanthanum hexaboride cathode (LaB6), the beam current is independently adjustable from 1 nA to 5 mA. The gun can deliver spots down to 500 μm. Rastering is also available as an option.

The modular design of the EMG-4215 allows either the firing unit assembly or the lens assembly to be replaced. The firing unit cartridge (including the cathode, cathode-mount, and Wehnelt aperture) is user-replaceable without removing the entire gun from the vacuum chamber. The anode is also replaceable. The cathode to anode spacing is internally adjustable to vary perveance.

The gun features an adjustable cathode feedthrough assembly that allows the mechanical alignment of the firing unit with respect to the anode and the column. This alignment can be done in real-time while the gun is operating at full voltage with beam on.
