Description

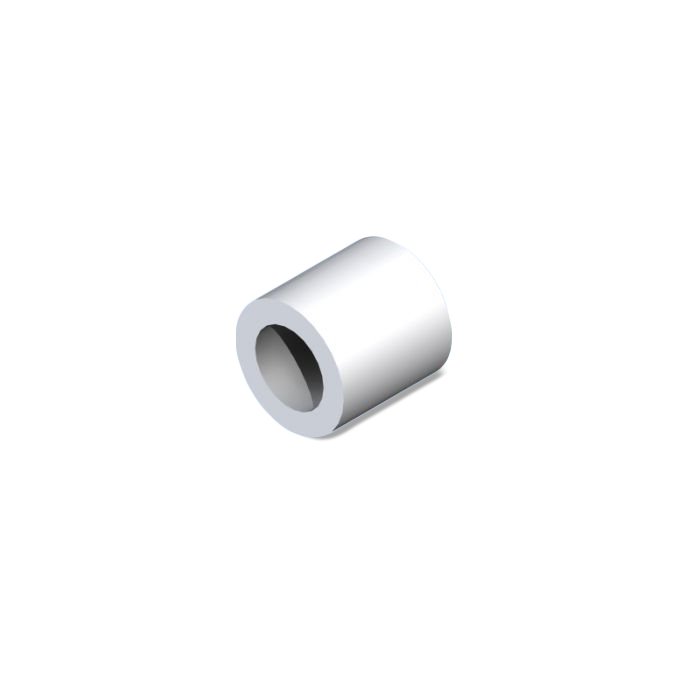

Spacers (SP parts) are fabricated in either Stainless Steel (SS) or Alumina (Al2O3) and are available in sizes that are compatible with Kimball Physics Series B or C eV Parts Size Series with several available length options. The components are essentially short tubes /spacers which slip over either the ceramic or metal rods, and are intended as an additional means of spacing the metal plates in the eV Part constructs. Rigid structures can be made by alternating metal and ceramic spacers on one or more ceramic rods. Since metal spacers are less costly than ceramic spacers, it is frequently desirable to use a long metal spacer in series with a small ceramic spacer to provide wide insulated gaps between plates
Products include:
Stainless Steel Spacers
Series B: SS-SP-B-XXX (XXX for various lengths) (16 parts/std pkg)
Series C: SS-SP-C-XXX (16 parts/std pkg)
(SS: Series B: ID 0.0.071″, OD 0.095″; Series C: ID 0.130″, OD 0.187″)
Alumina Spacers
Series B: Al2O3-SP-B-XXX (XXX for various lengths) (32 parts/std pkg)
Series C: Al2O3-SP-C-6000 (One six in. part/std pkg)
Series C: Al2O3-SP-C-XXX (16 parts/std pkg)
(Al2O3: Series B: ID 0.0.064″, OD 0.100″; Series C: ID 0.127″, OD 0.200″)
Please refer to the the Part Drawings in the Product Images Display (above right- click on highlighted image to enlarge it) or download the PDF documents in the Resources tab above for more information about product dimensions.
For more information about our eV Parts for creating concepts and prototypes, please visit our Learning Center section: eV Parts: Modular Components for Vacuum and Electron/Ion Beam System Prototyping and Apparatus.
