Element Clamps, Stainless Steel

Element Clamps, Stainless Steel

Used in lens and source assemblies. Two, four, or eight- pointed clamps, 1.15″ ODs with 0.500″ to 0.625″ IDs. Attach to C Series insulating or metal rods, tubes, eV Parts, and groove grabbers.

Used in lens and source assemblies. Two, four, or eight- pointed clamps, 1.15″ ODs with 0.500″ to 0.625″ IDs. Attach to C Series insulating or metal rods, tubes, eV Parts, and groove grabbers.

Model #: SS-EC Category:

Description

Precision elements used in lens and source assemblies and other experimental apparatus. They come in 7 designs including two-, four-, or eight-pointed clamps. They attach to C-Series rods, tubes, threaded rods and cylinders.

All clamps have a thickness of 0.150″ and an OD of 1.15″.

Products include:

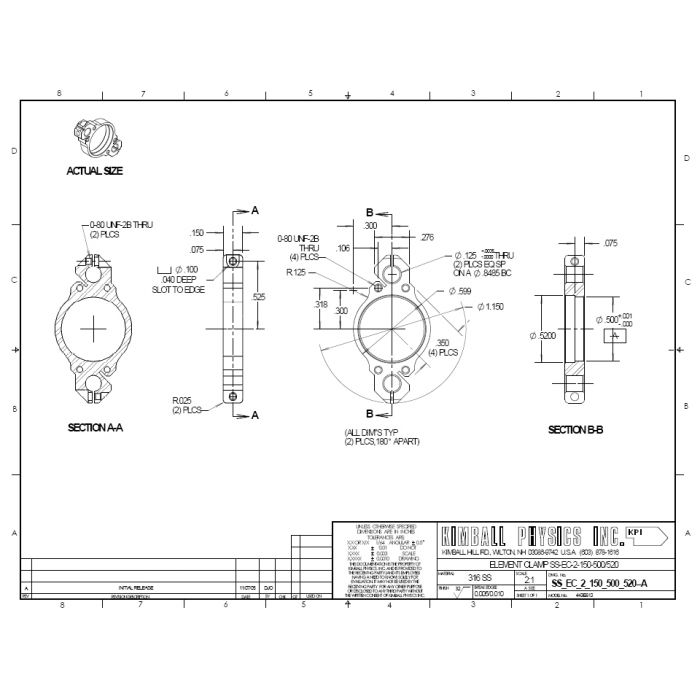

SS-EC-2-150/520 (2 points, 0.500″/0.520″ stepped ID, with tapped holes)
SS-EC-4-150-521 (4 points, 0.521″ ID, with tapped holes)

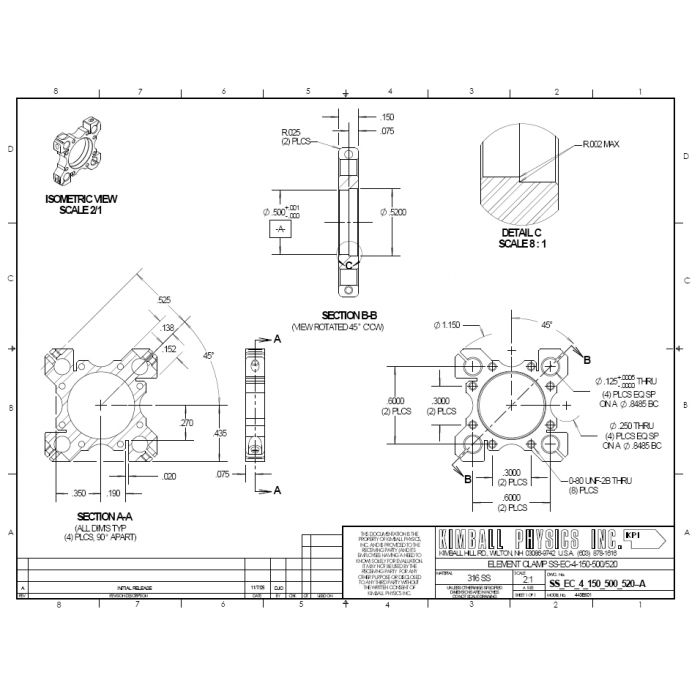

SS-EC-4-150-500/520 (4 points, 0.500″/0.520″ stepped ID, with tapped holes)
SS-EC-8-150-625 (8 points, 0.625″ ID, with tapped holes)
SS-EC-8-150-521 (8 points, 0.521″ ID, with tapped holes)
SS-EC-8-150-500/520 (8 points, 0.500″/0.520″ stepped ID, with tapped holes)
SS-EC-8-150-520-SP4 (8 points, 0.520″ ID, with tapped holes, sectioned into 4 pieces)

See Drawings above. Each product is sold separately.

Additional information

Weight 0.55 lbs
Inside diameter

, , ,

Element clamp points

, ,

Thickness

Material
