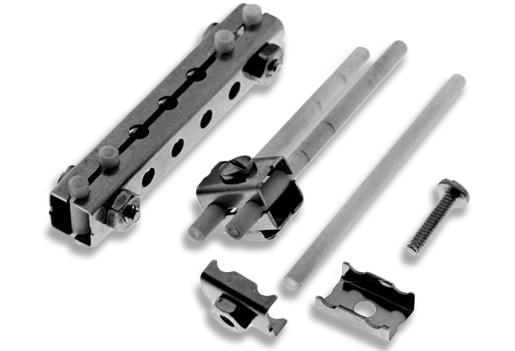

Screw clamp parts (SC parts) are clamps made out of plate material. Used for attaching and holding rods, split tubes, tubes and plates together, these clamps operate by pinching one or more rods between a pair of clamps. Each clamp consists of a double bracket cut through its mounting holes. Pressure is provided by a simple nut and screw.
Product families include:
C-Series (1/8 in. mounting holes)
SS – SC – CX (X varies from 2 to 7)
SS – SC – CXM
SS – SC – CA – A (machined part, sold as single item)
B-Series (1/16 in. mounrinf holes)
SS – SC – BX
SS – SC – BXM
All packages sold with (4) clamp halves and (4) nuts and bolts..
See print above for more details.
