Screw Clamp Assemblies

Screw Clamp Assemblies

$40.00$77.00

Packages contain 1 set / package



Model #: SS-SCA-C Category:

Description

Stainless steel screw clamp assemblies (SCA) and clamping plate assemblies (CPA) are used for heavier loads. These consist of machined, tapped/clear hole clamping bar pairs, or bars and plates held together by screws.

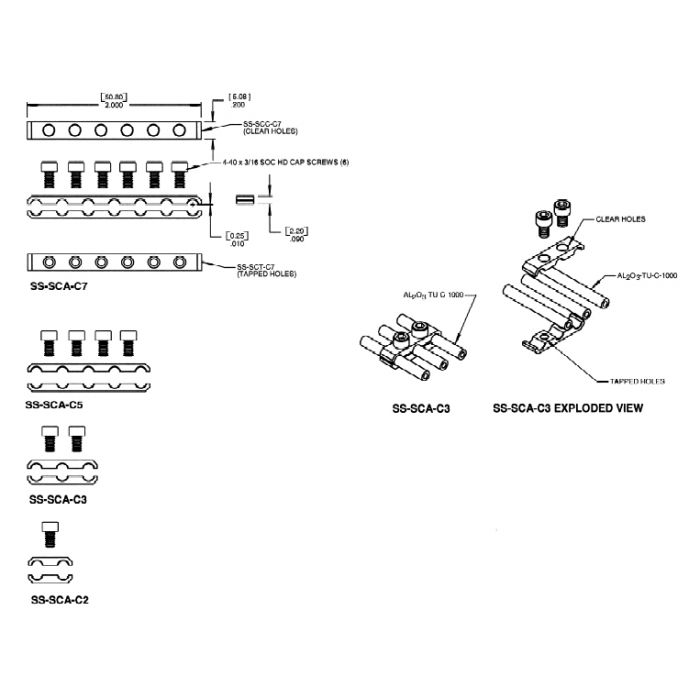

These are precision-machined, tapped/clear hole clamping bar pairs held together by screws for the purpose of mounting C-Series rods, tubes, and plates.

C-Series: 0.125″ holes, 0.300″ hole spacing

The product family is:
SS-SCA-CX (X is the number of rods/tubes that can be mounted and varies from 2 to 7.)
The quantity of stainless steel screws provided is (X-1). Each product is sold individually

Additional information

Weight 0.55 lbs
Screw clamp size

, , ,

Material

Resources
