2.75″ Groove Grabber – Large Load Axial Mounting

2.75″ Groove Grabber – Large Load Axial Mounting

$180.00

See specifications below.



Model #: MCF275-GrvGrb-C01
Part #: 53-720000 Categories: ,

Description

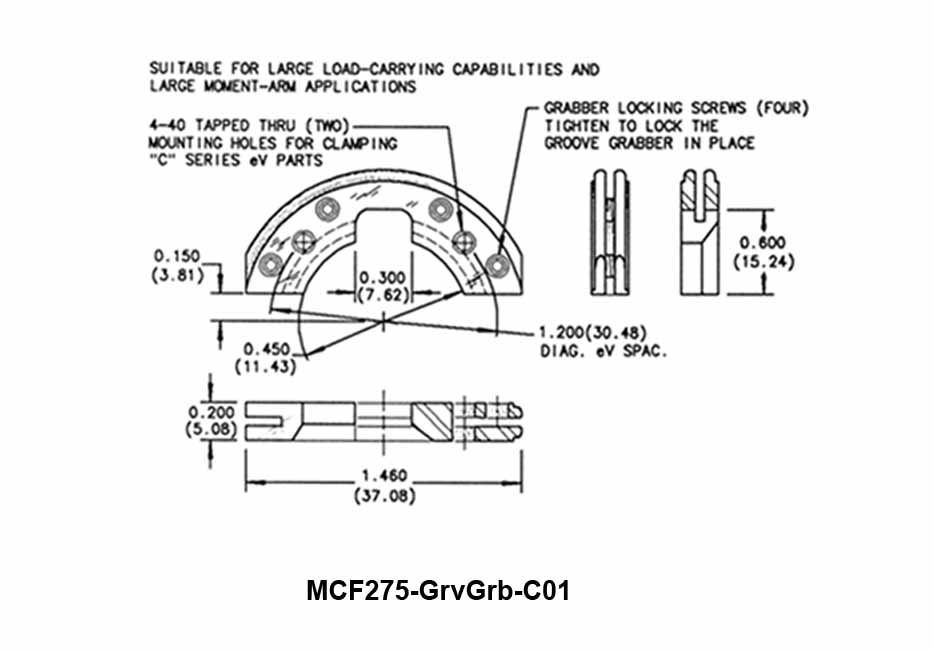

Attaches to Grabber Grooves in 2.75″ CF ports in Kimball Physics vacuum chambers & fittings
(2) 4-40 tapped holes for rigid mounting of large objects such as electron guns or ion sources
The (2) 4-40 tapped holes are not spaced for eV plates or brackets
All locking screws are gold plated for lubrication
Weight: 0.01 lbs. (0.05 kg)

Additional information

Weight 0.01 lbs
