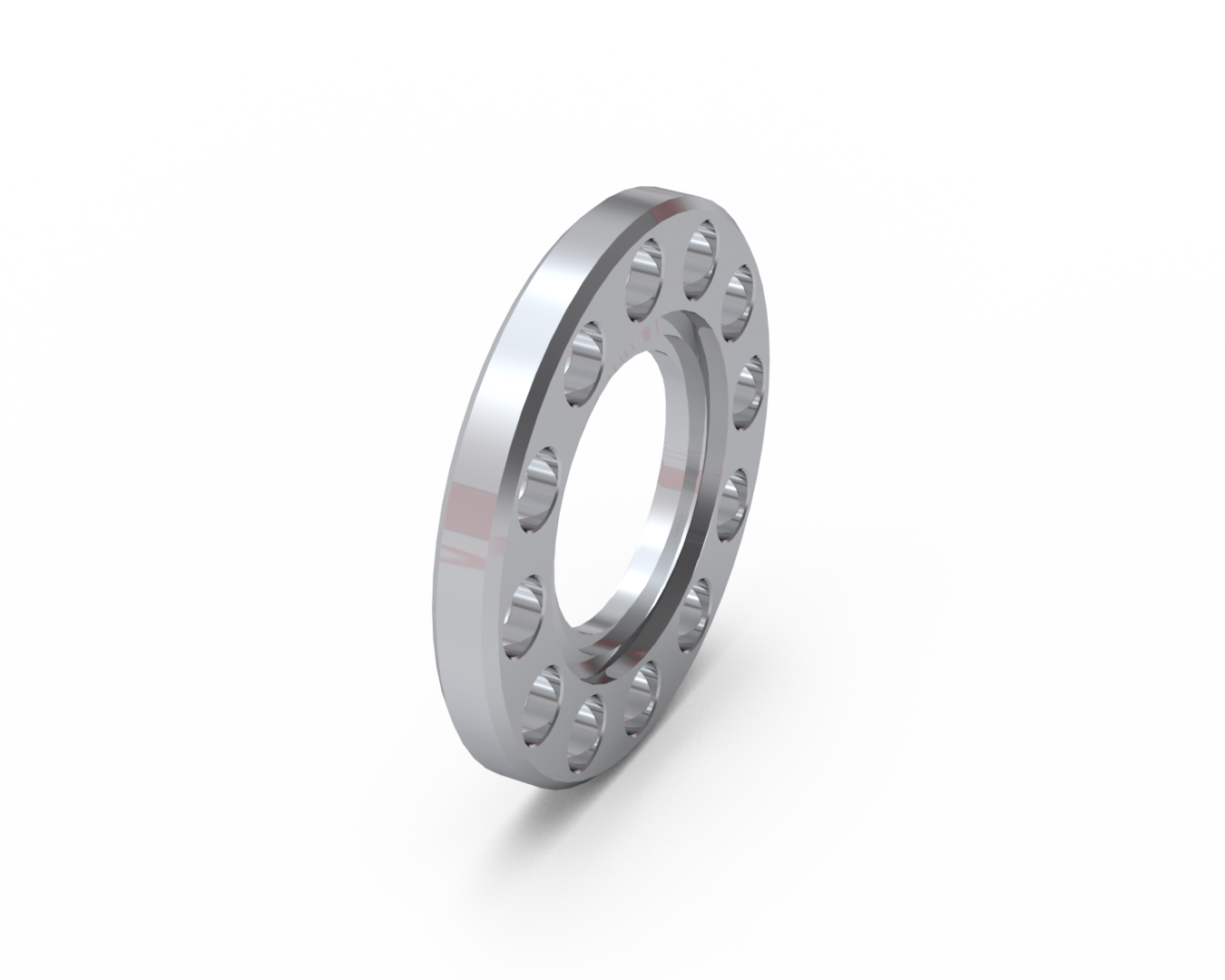

1.33″ Thin Flange – (0.175″) – Bore (0.640″)

1.33″ Thin Flange – (0.175″) – Bore (0.640″)

$124.00

See specifications below.

Out of stock

Part #: 53-640100 Categories: , ,
Model #: MCF133-ThnFlg-A2-175-ID640

Description

  • 1.33″CF 0.175″ nominal “gasket to gasket” thickness (includes gasket crushing allowance) with actual thickness dimension of 0.155″
  • Bore ID 0.640″
  • Can be used as a spacer in a UHV system
  • Double density clear bolt holes
  • Made from 316L stainless steel
  • Weight: 0.03 lbs. (0.01 kg)





Additional information

Weight 0.029 lbs
