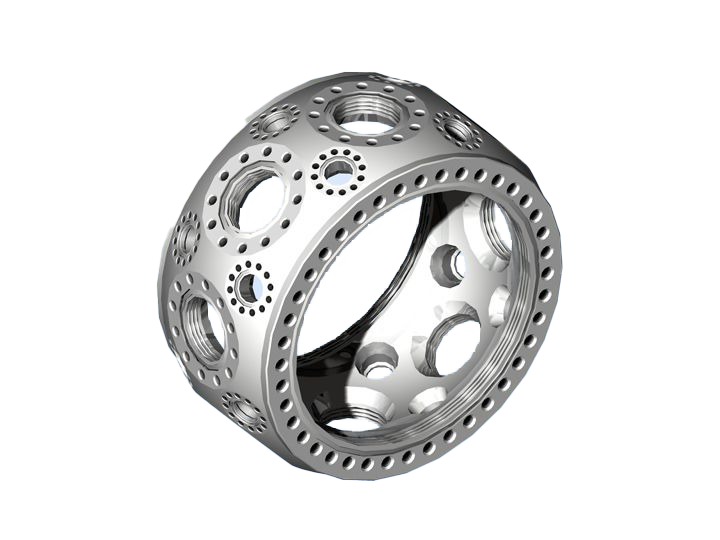

8.0″ Extended Spherical Octagon – Vacuum Chamber

8.0″ Extended Spherical Octagon – Vacuum Chamber

$8,203.00

See specifications below.

Out of stock

Part #: 53-180500 Categories: , ,
Model #: MCF800-ExtOct-G2C8A16

Description

UHV vacuum chamber
(2) 8.00″CF, (8) 2.75″CF and (16) 1.33″CF
Grabber Grooves for internal mounts on 2.75″CF and larger
Spherical ID: 7.10″ (180.34mm)
Internal volume: 166.6 cu. in. (2,729 cc)
Weight: 17.00 lbs (7.71 kg)

Additional information

Weight 17 lbs
