Kimball Physics UHV (Ultra-High Vacuum) Vacuum Chambers are precise, modular, multiport fittings and housings that utilize integrated ConFlatTM (CF) sealing surfaces at each port.
Kimball Physics’ Multi-CFTM UHV fittings are designed as both instrument housings and as vacuum chambers. The chambers are CNC fabricated for high precision and accuracy from a monolith of 316L Stainless Steel. Fabrication from Titanium Alloys and metric threads are also available as options.

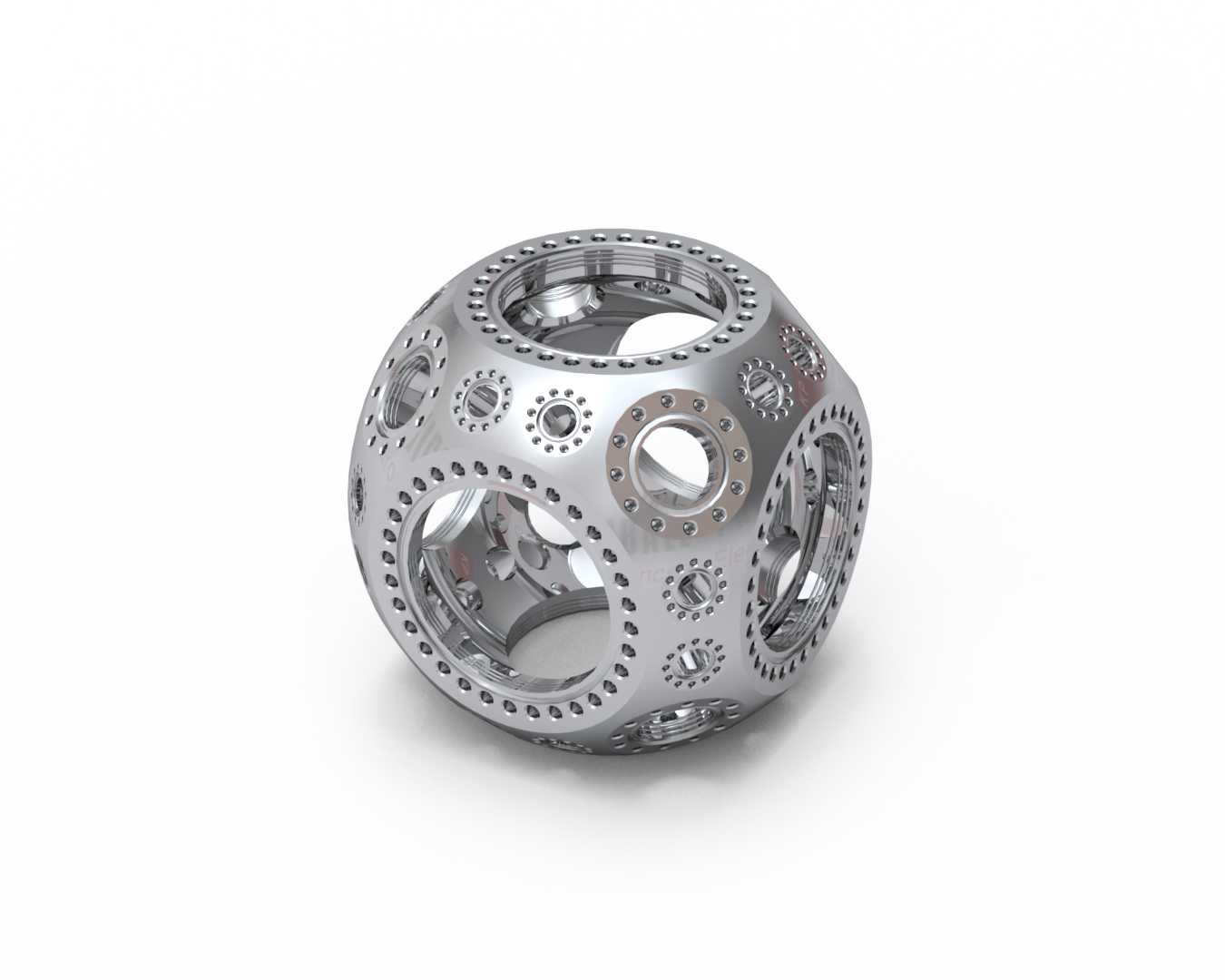

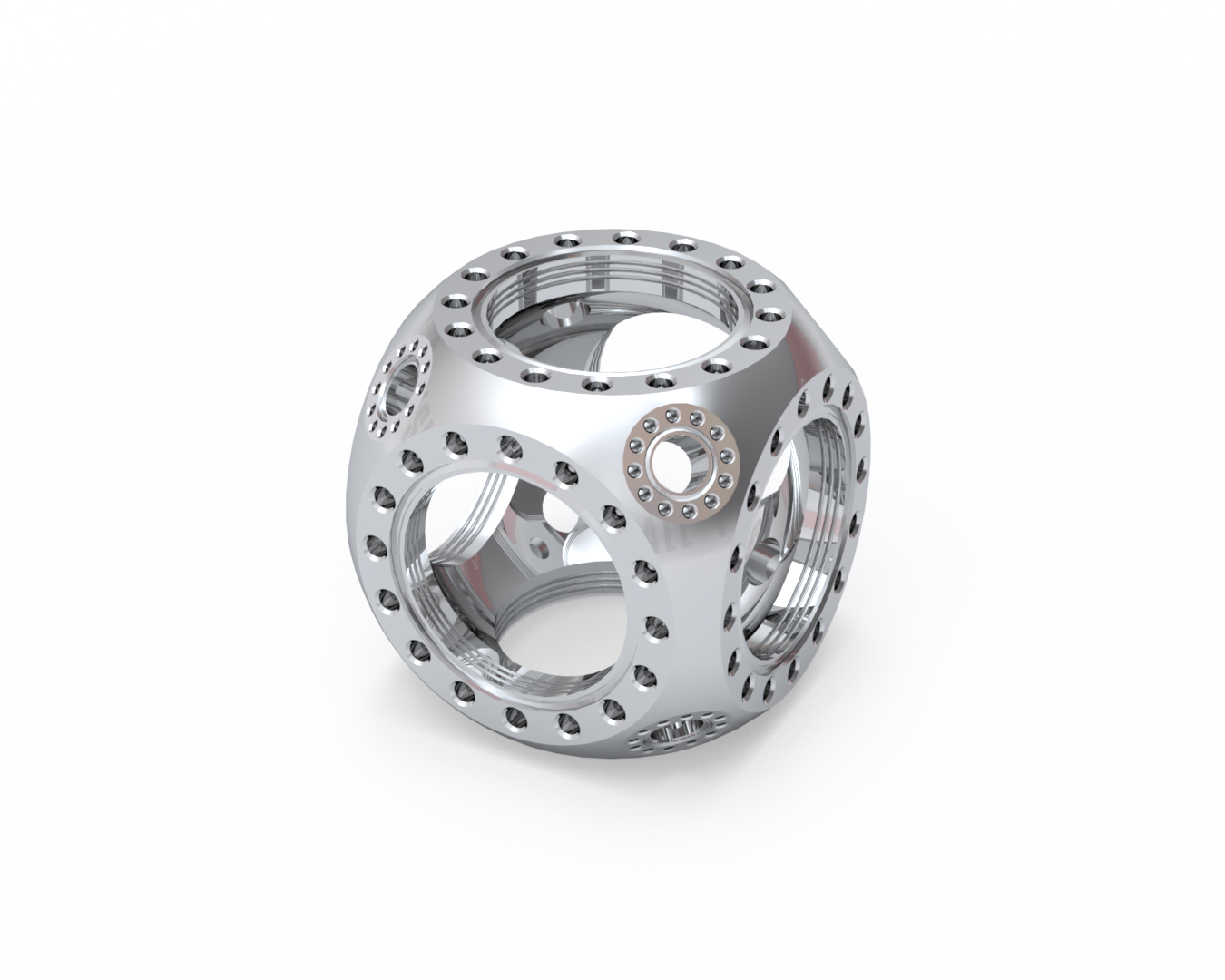

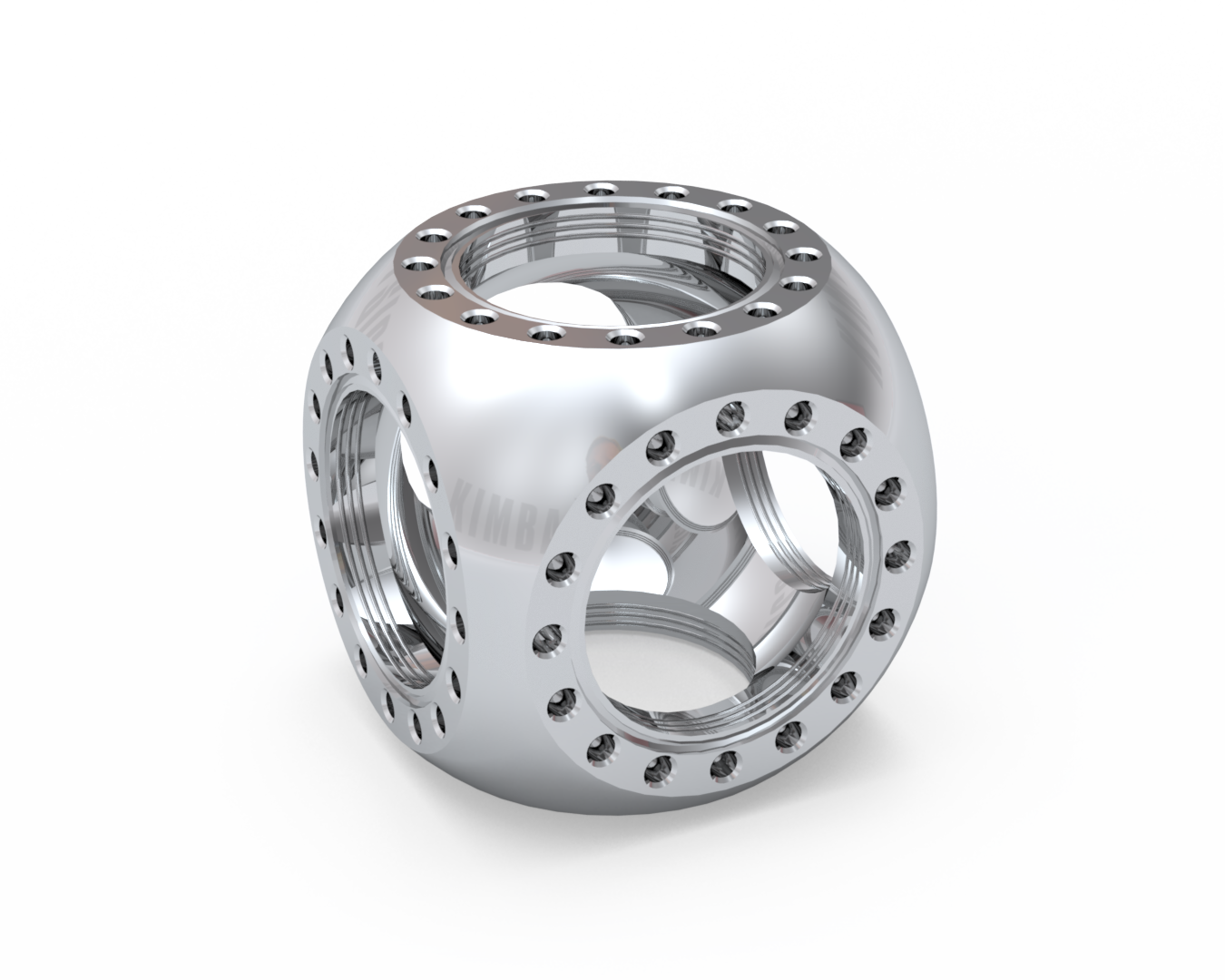

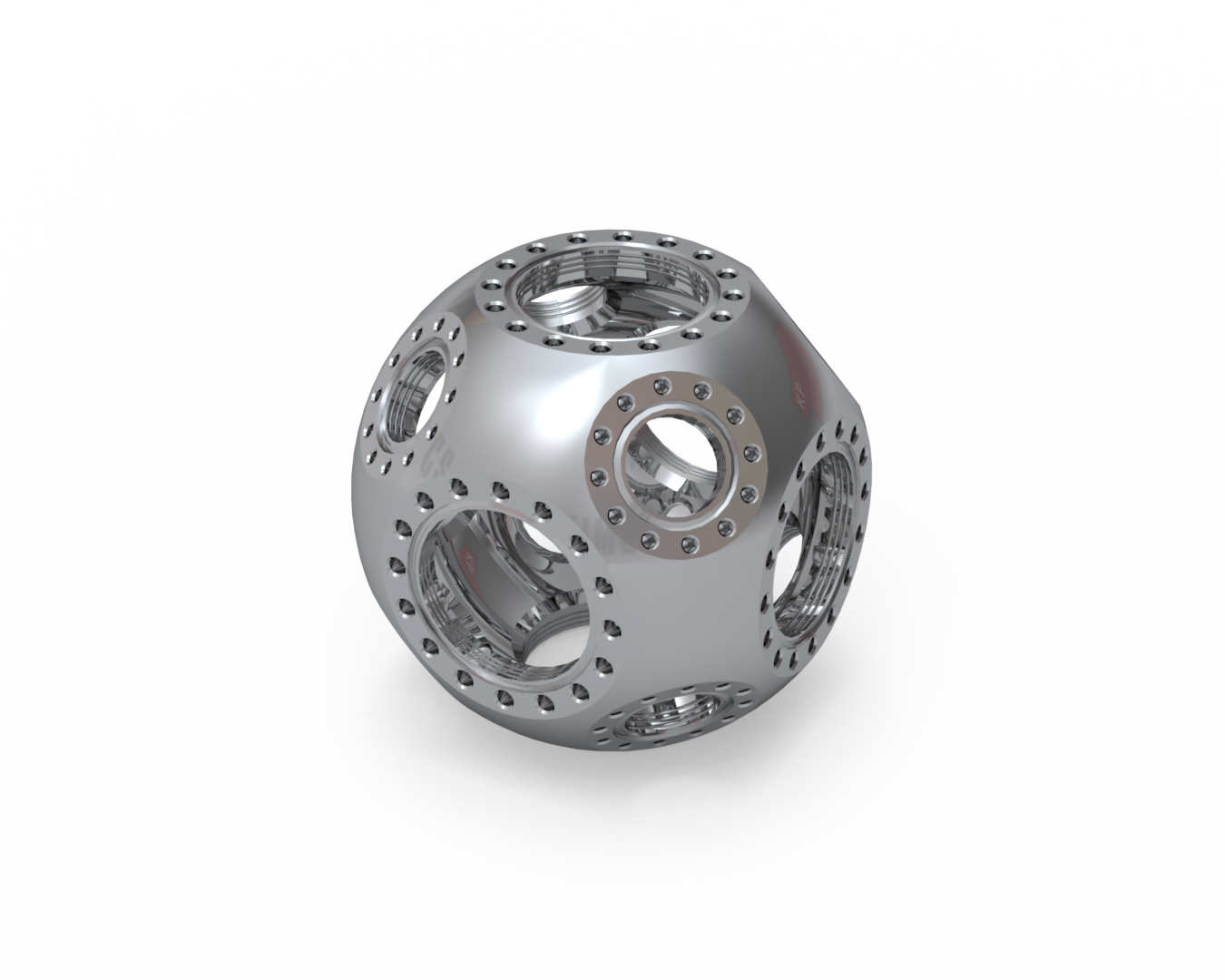

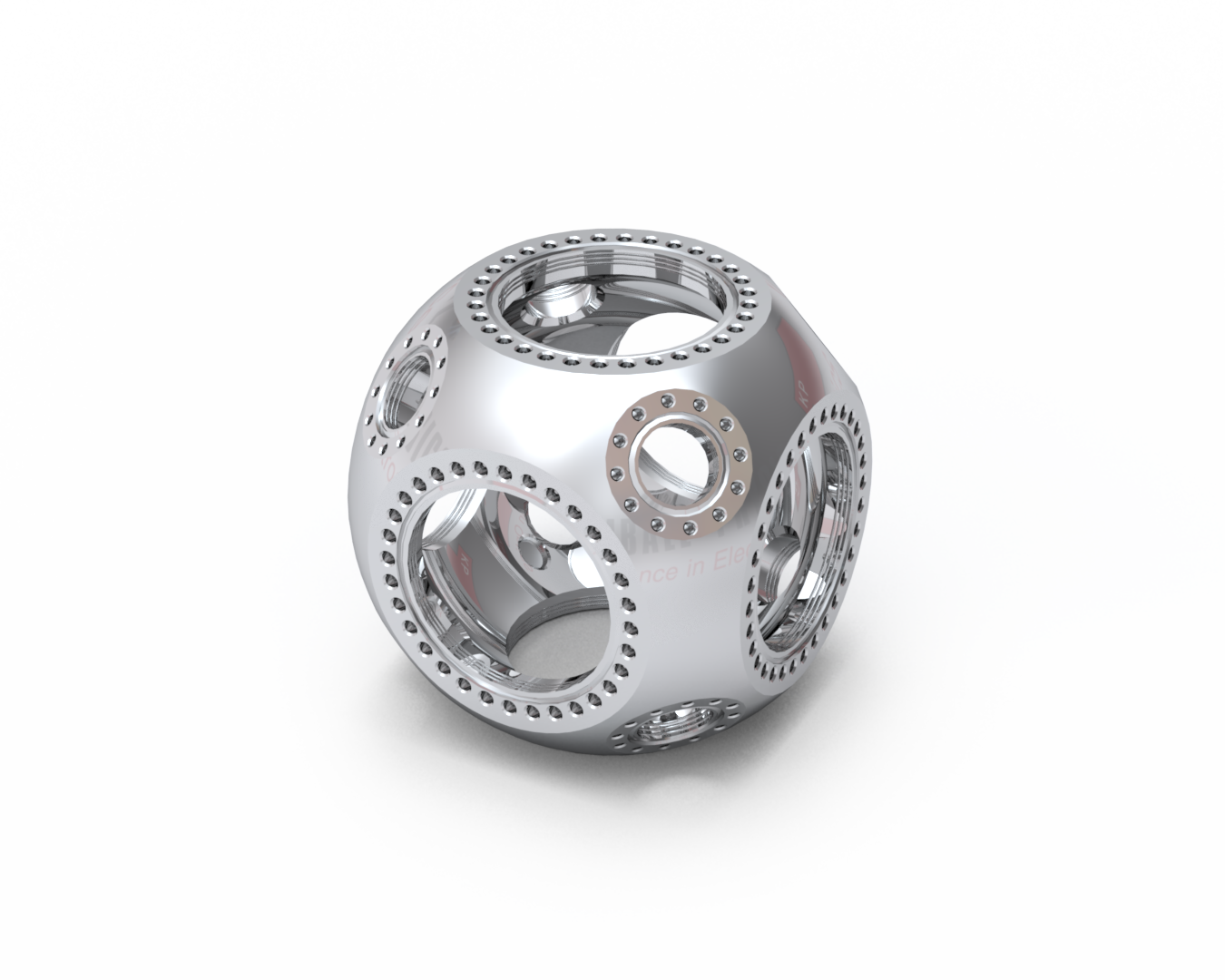

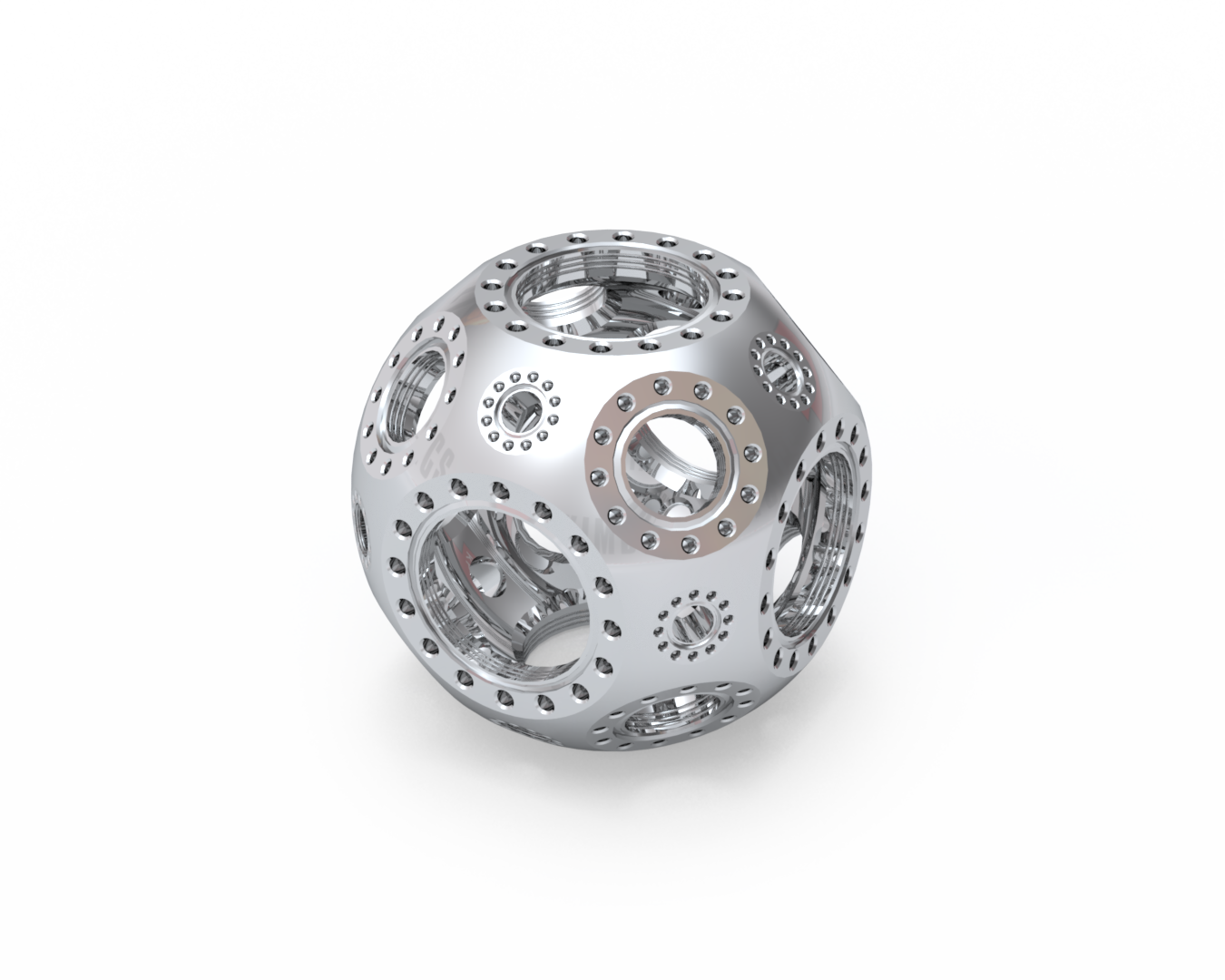

The Spherical Cube design is initially based on a hollow sphere with convex external and concave internal surfaces. The CF ports are primarily arranged in a six-sided cubic geometry. In the Expanded Spherical Cube design, the structure is enlarged to enable space between the six primary ports for additional smaller CF ports.
We have recently added a NEW Spherical Cube design, not shown in the table below, that falls into our sub-miniature category and that uses a cubic arrangement of six (6) 0.95″ CF ports. To LEARN more please see MCF095-SphCube-X6.
To LEARN MORE , please refer to the Spherical Cube and Expanded Spherical Cube Overview documents (PDF). To LEARN MORE about the various vacuum chamber designs, please visit our Learning Center and explore Interactive 3D Models of the various design configurations.
