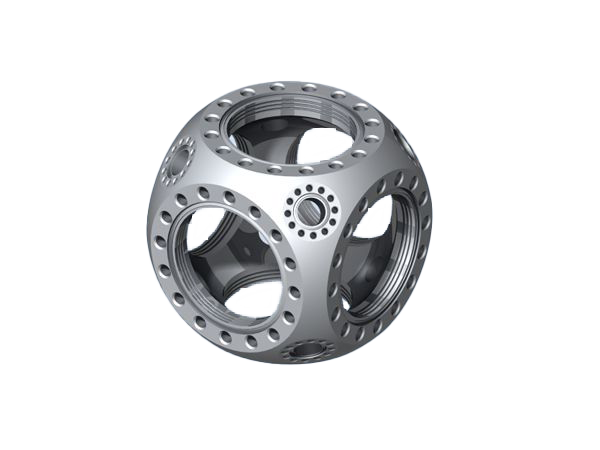

4.50″ Spherical Cube – Vacuum Chamber

4.50″ Spherical Cube – Vacuum Chamber

$4,080.00

See specifications below.



Model #: MCF450-SphCube-E6A8
Part #: 53-110500 Categories: ,

Description

UHV vacuum chamber
(6) 4.50″CF and (8) 1.33″CF
Grabber Grooves for internal mounts on 4.50″CF
Spherical ID: 4.80″ (121.92mm)
Internal volume: 71.6 cu. in. (1,174 cc)
Weight: 8.40 lbs (3.81 kg)

Additional information

Weight 8.4 lbs
