Kimball Physics UHV (Ultra-High Vacuum) Vacuum Chambers are precise, modular, multiport fittings and housings that utilize integrated ConFlatTM (CF) sealing surfaces at each port.
Kimball Physics’ Multi-CFTM UHV fittings are designed as both instrument housings and as vacuum chambers. The chambers are CNC fabricated for high precision and accuracy from a monolith of 316L Stainless Steel. Fabrication from Titanium Alloys and metric threads are also available as an option.

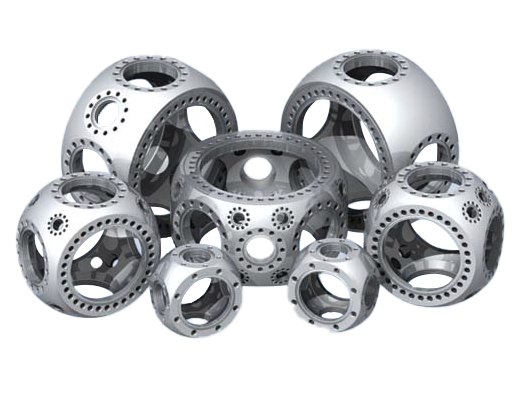

The Spherical Square Multi-CFTM UHV vacuum chambers are based on a design of two main or primary CF sealing ports that are parallel and offset sections cut through a global hollow spherical form. A secondary series of four CF sealing surface ports are equally spaced in a plane perpendicular to the main surfaces and generally provides a polygon array of ports in the form of a square. Other additional ports can augment the design and are dispersed in the spaces between the main and secondary ports. These designs are precision CNC fabricated from a single piece of 316L Stainless Steel unless otherwise noted. The option of using Titanium is also available.
To LEARN MORE , please refer to the Spherical Square Overview document (PDF). To LEARN MORE about the various vacuum chamber designs, please visit our Learning Center and explore Interactive 3D Models of the various design configurations.
