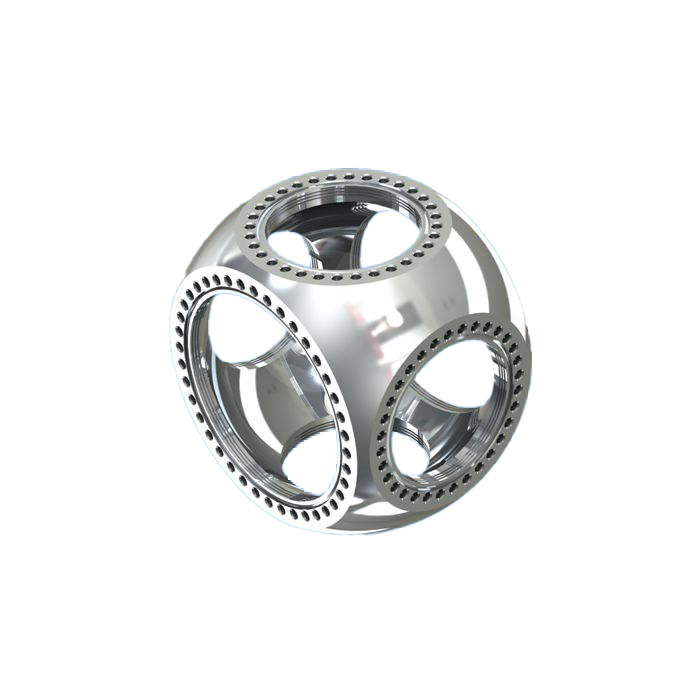

8.0″ Spherical Square – Vacuum Chamber

8.0″ Spherical Square – Vacuum Chamber

See specifications below.

See specifications below.

Model #: MCF800-SphSq-G2F4
Part #: 53-110980 Categories: ,

Description

Spherical Square
UHV vacuum chamber
(2) 8.00″CF, (4) 6.00″CF
Grabber Grooves for internal mounts on 8.00″ / 6.00″ CF ports
Spherical ID: 8.400″ (213.36 mm)
Internal volume: 303.6 cu. in. (4973.5 cc)
Weight: 27.6 lbs (12.5 kg)

Additional information

Weight 0.55 lbs
