1.33″ Double Spherical Cube – Vacuum Chamber

1.33″ Double Spherical Cube – Vacuum Chamber

$2,568.00

See specifications below.



Model #: MCF133-DblSphCube-A10
Part #: 53-142000 Categories: ,

Description

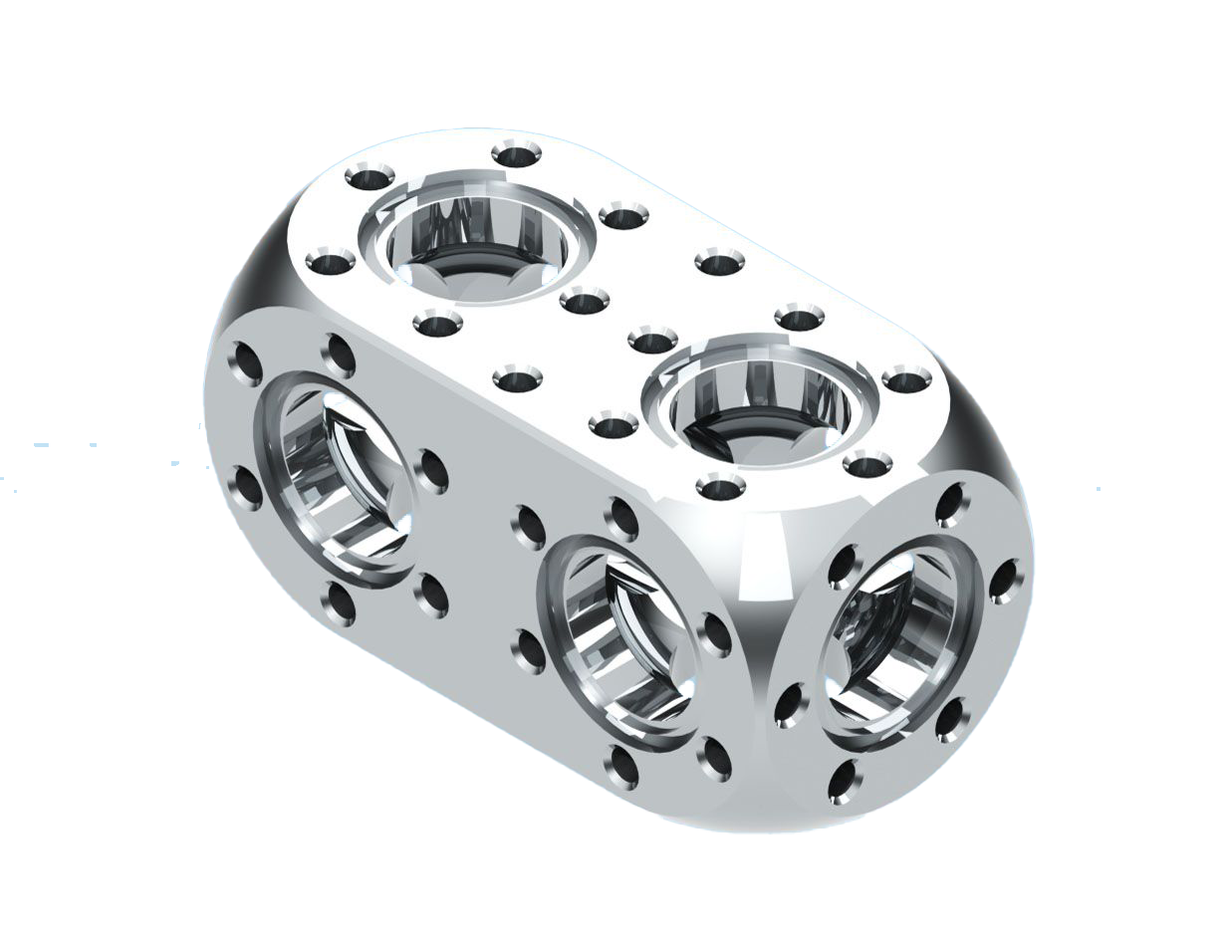

UHV miniature vacuum chamber
Designed as (2) spherical cubes side by side
Unitary 316L stainless steel construction
(10) 1.33″ CF ports
(4) External tapped holes for system mounting
Spherical ID: 1.10″ (27.94mm) – for each half
Internal volume: 1.97 cu. in. (32 cc)
Weight: 0.77 lbs (0.35 kg)
See print on left

Additional information

Weight 0.77 lbs
