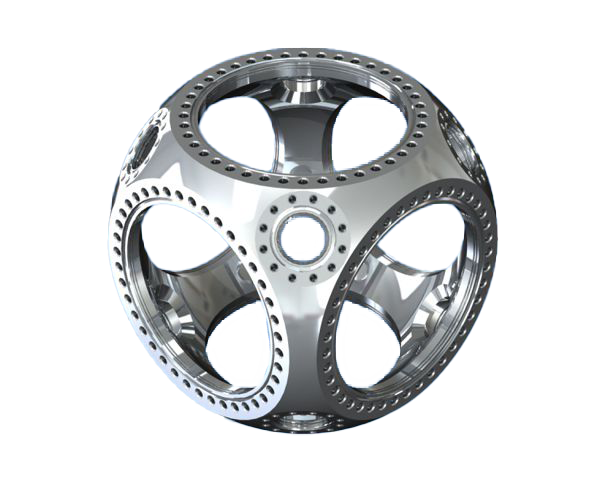

8.0″ Spherical Cube – Vacuum Chamber

8.0″ Spherical Cube – Vacuum Chamber

$12,720.00

See specifications below.



Model #: MCF800-SphCube-G6C8
Part #: 53-112000 Categories: ,

Description

UHV vacuum chamber
(6) 8.00″CF and (8) 2.75″CF
Grabber Grooves for internal mounts on all ports
Spherical ID: 10.20″ (259.08mm)
Internal volume: 552.7in3 (9057cc)
Weight: 31.76lbs. (14.4kg)

Additional information

Weight 31.76 lbs
