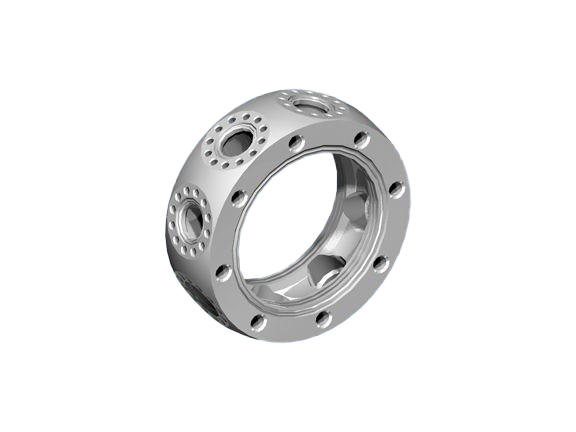

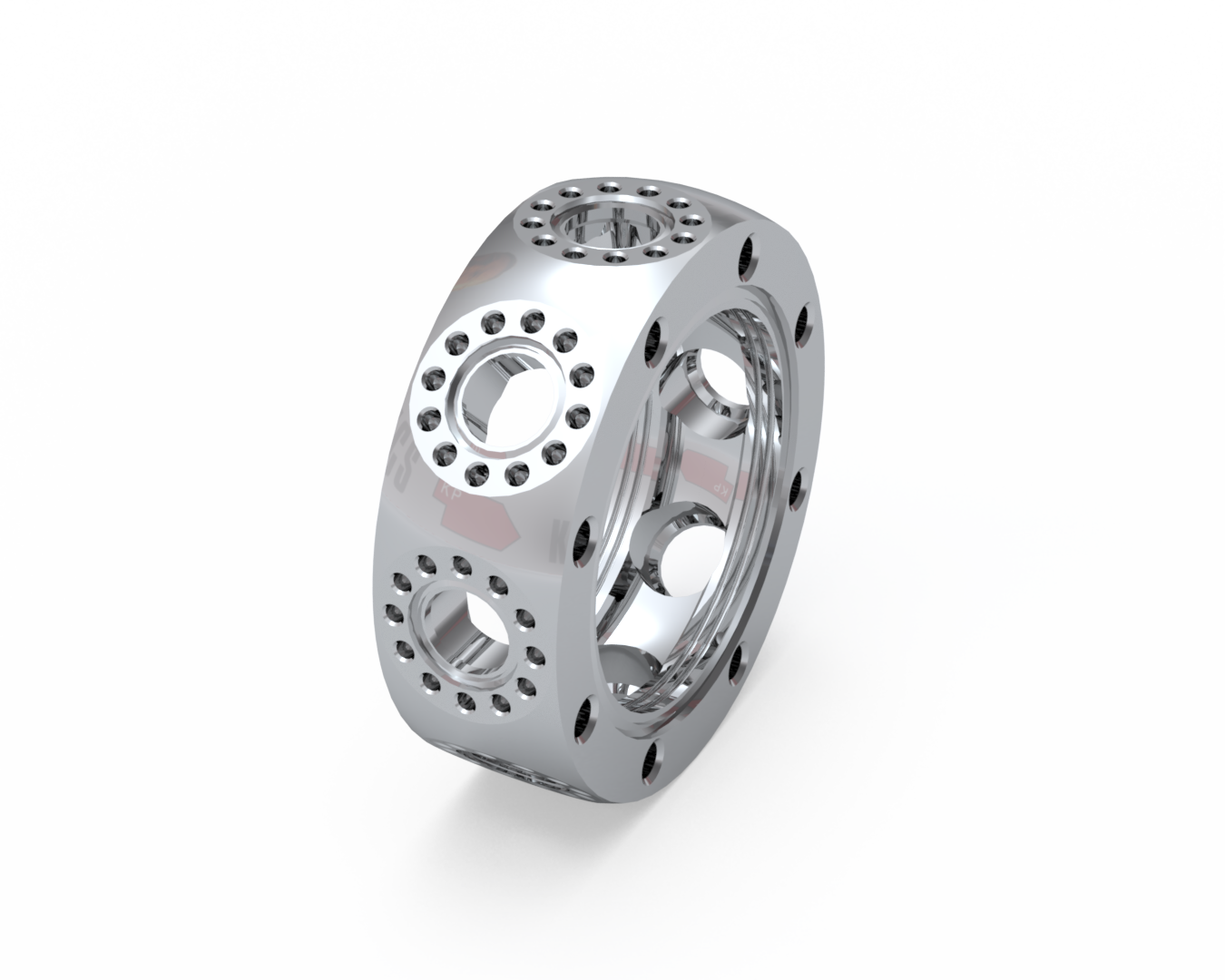

4.50″ Spherical Octagon (tapped holes) – Vacuum Chamber

4.50″ Spherical Octagon (tapped holes) – Vacuum Chamber

$1,668.00

See specifications below.

Bolt Holes *

Bolt Holes



Model #: MCF450-SphOct-E2A8
Part #: 53-180000 Categories: ,

Description

UHV vacuum chamber
(2) 4.50″CF (tapped) and (8) 1.33″CF
Grabber Grooves for internal mounts on 4.50″CF
Spherical ID: 3.20″ (81.28mm)
Internal volume: 12.0 cu. in. (197 cc)
Weight: 1.85 lbs (0.84 kg)

Additional information

Weight 1.85 lbs
