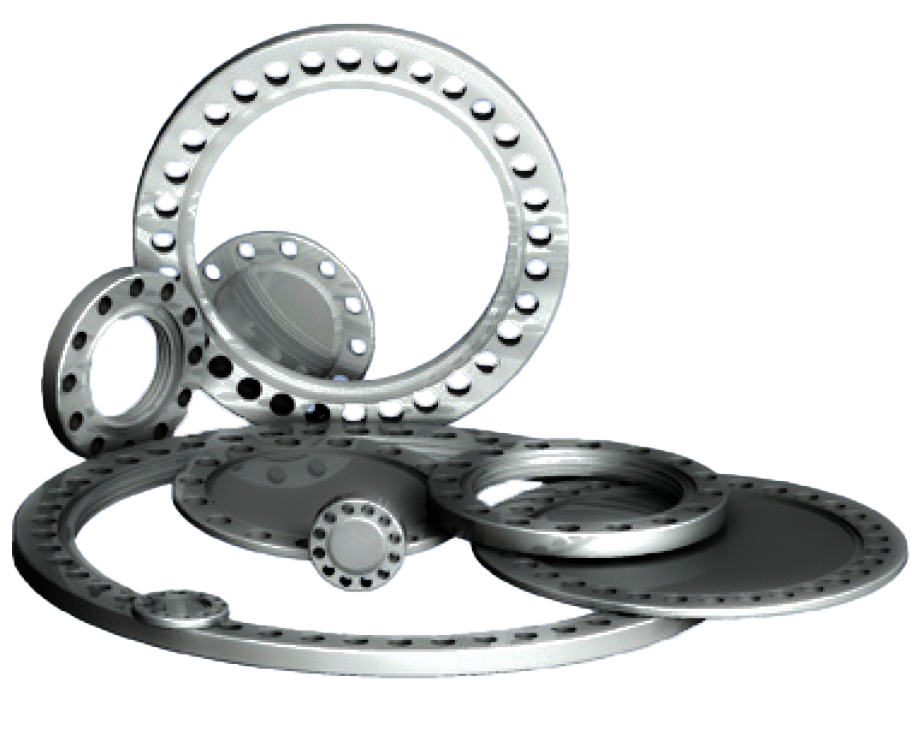

1.33″ Thin Flange (0.175″) – Blank

1.33″ Thin Flange (0.175″) – Blank


See specifications below.

Out of stock

Part #: 53-640000 Categories: , ,
Model #: MCF133-ThnFlg-A2-175


  • 1.33″CF 0.175″ nominal “gasket to gasket” thickness (includes gasket crushing allowance) with actual thickness dimension of 0.155″
  • Can be used as a spacer in a UHV system
  • Double density clear bolt holes
  • Customer can machine custom apertures to allow for:
    – Calibration of the pumping speed of a vacuum pump
    – Determination of the out-gassing rate of a vacuum chamber
    – Differential pumping.
  • Provide a platform for mounting experimental apparatus directly to the membrane
  • Made from 316L stainless steel
  • Weight: 0.03 lbs. (0.01 kg)

Additional information

Weight 0.034 lbs
