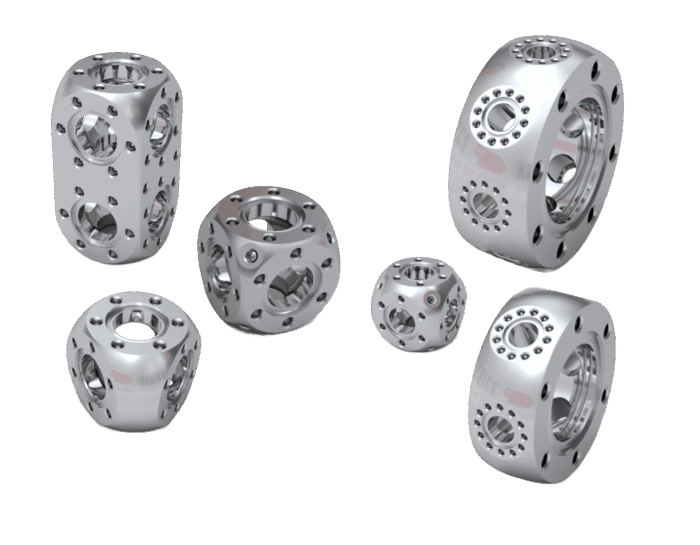

Kimball Physics Spherically based UHV vacuum chambers are available in miniature and sub-miniature sizes. We arbitrarily classify vacuum chambers as miniature with primary CF ports of 3.38″, 2.75″ or 1.33″ where they also include a 1.33″ or 0.95″ secondary CF port. One of our Newest Designs, a spherical cube with six(6) CF ports of 0.95″, we consider to be a sub-miniature design.
These systems are ideal for applications and experiments that require a limited volumetric footprint. Many of our larger chambers also include the smaller 1.33″ CF and 0.95″ CF Ports. The 0.95″ ports are also ideal for electrical feedthroughs.
Some of our NEWEST Multi-CF chambers in our miniature and sub-miniature designs include:
-
- Spherical Cube with six (6) 0.95″ CF ports (MCF095-SphCube-X6)
- Spherical Hexagon with (2) Primary 2.75″ CF ports and six (6) 0.95″ CF ports. (MCF-SphHex-C2X6)
- Spherical Octagon with (2) Primary 3.38″ ports and eight(8) 0.95″ CF ports. (MCF338-SphOct-D2X8)
Also Learn More about miniature and sub-miniature hardware accessories including Feedthroughs, Flange Adapters and Flange Multiplexers.
Table Summarizing Miniature and Sub-Miniature Mult-CF Vacuum Chambers / Instrument Housings available:
Please also refer to our Learning Center for a more in depth discussion of the Miniature and Sub-Miniature Systems and accessories that are available.
