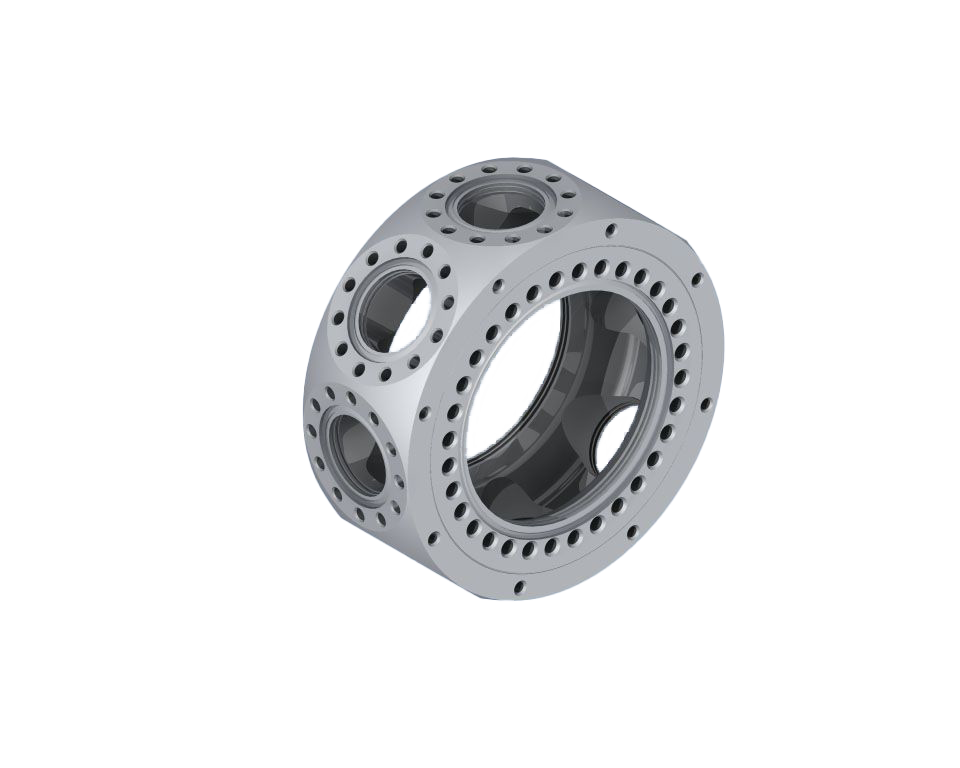

6.0″ Spherical Octagon – Vacuum Chamber

6.0″ Spherical Octagon – Vacuum Chamber

$4,974.00

See specifications below.

Out of stock

Part #: 53-180200 Categories: , ,
Model #: MCF600-SphOct-F2C8

Description

UHV vacuum chamber

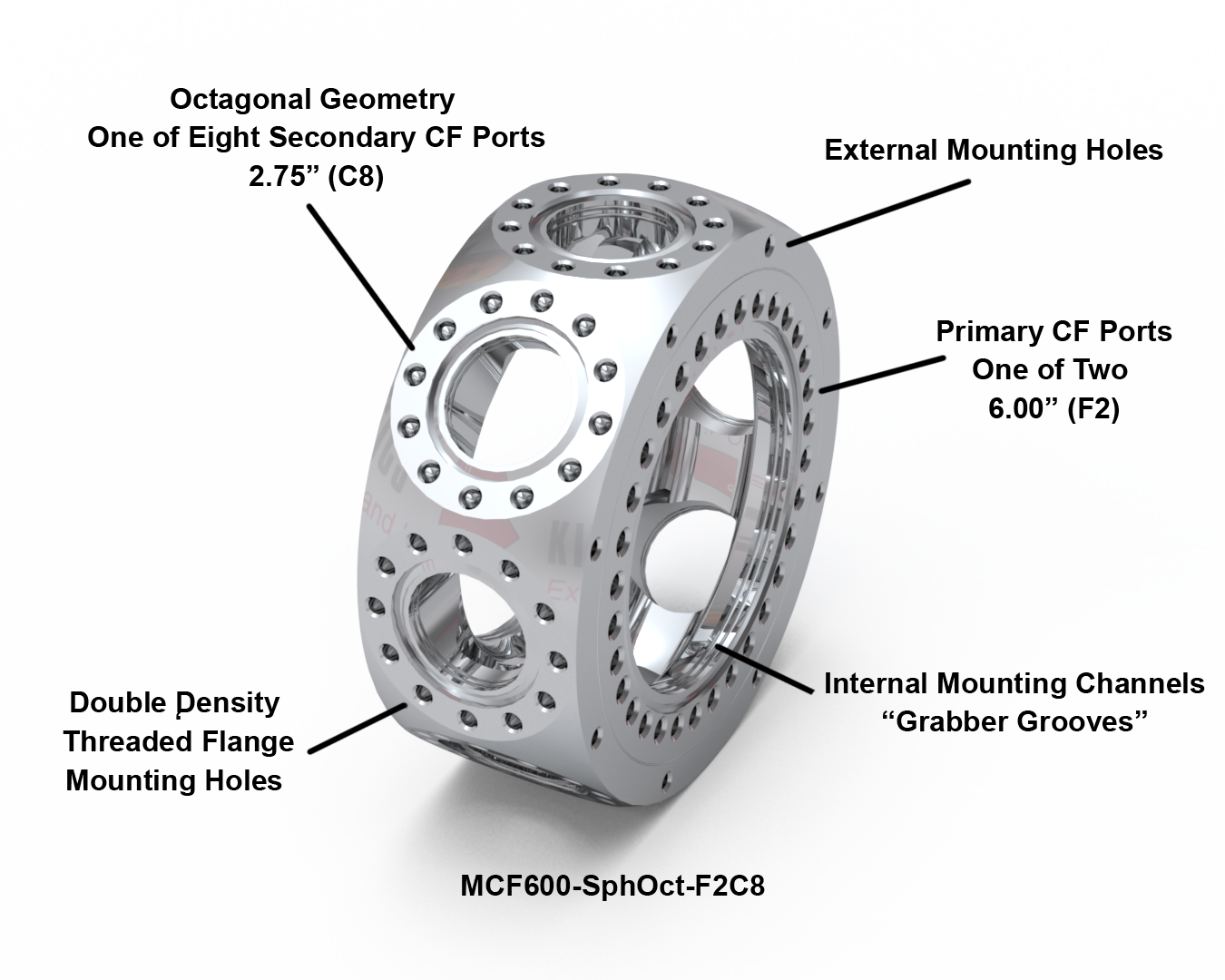

(2) 6.00″CF and (8) 2.75″CF
Grabber Grooves for internal mounts on all ports
Spherical ID: 4.80″ (121.92mm)
Internal volume: 77.1 cu. in. (1,263 cc)
Weight: 11.38 lbs (5.16 kg)



External Mounting capability with (8) bolt holes on 6 in. flange face which mates with MCF600-ExtBrkt-SM – the side mounted External Mounting Bracket (see bracket picture and drawing above)

Additional information

Weight 11.38 lbs
