6.00″ Groove Grabber – Reverse Split Axial Clamping

6.00″ Groove Grabber – Reverse Split Axial Clamping

$186.00

See specifications below.



Model #: MCF600-GrvGrb-C01
Part #: 53-760000 Categories: ,

Description

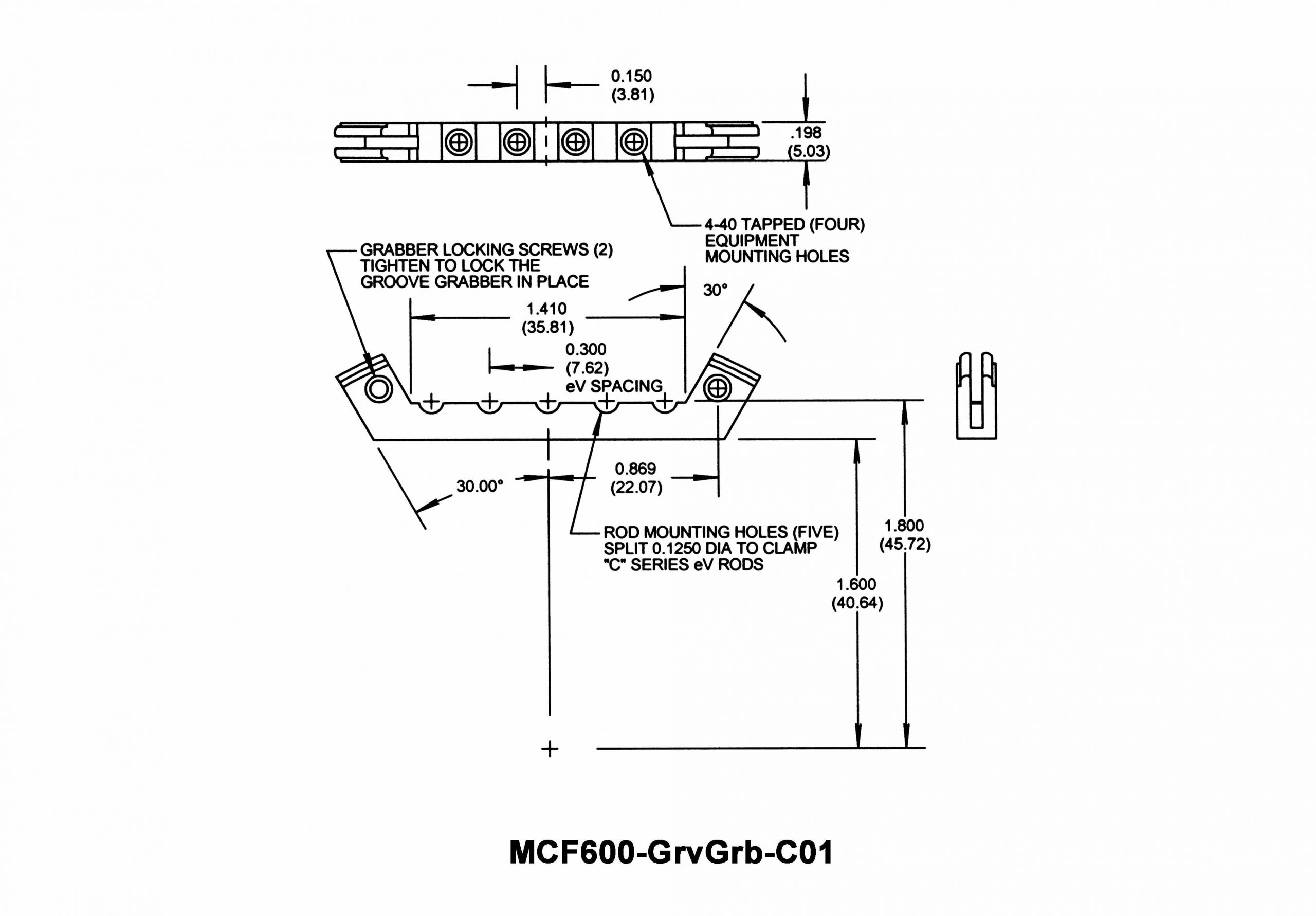

Attaches to Grabber Grooves in 6.00″ CF ports in Kimball Physics vacuum chambers & fittings
Reverse split design for clamping (5) 0.125″ rods or tubes parallel to port axis
(4) 4-40 tapped holes (4 screws incl) for mounting “C” Series eV plates and brackets parallel to port axis
See Related Products Section (to the right) for eV Parts options
All screws are gold plated for lubrication
Weight: 0.03 lbs. (0.01 kg)

Additional information

Weight 0.029 lbs
