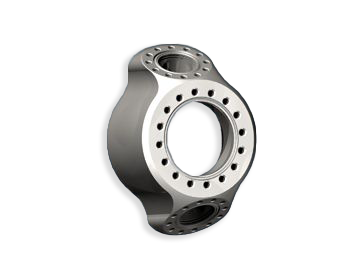

4.50″CF Weldable Cluster – (2) 2.75″CF

4.50″CF Weldable Cluster – (2) 2.75″CF

Instrument housing / vacuum chamber
(1) 6.0″weldable port, (1) 4.50″CF and (2) 2.75″CF
Weld to a 6.0″ O.D. tube or 6 CF (with preparation)
Incorporates Grabber Grooves for internal mounting on 2.75″CF and 4.50″CF
Double density bolt holes for 2.75″ and 4.50″ CF ports
Internal Voume: 48.9 cu. in. (801 cc)
Weight: 7.37 lb. (3.34 kg)

Instrument housing / vacuum chamber
(1) 6.0″weldable port, (1) 4.50″CF and (2) 2.75″CF
Weld to a 6.0″ O.D. tube or 6 CF (with preparation)
Incorporates Grabber Grooves for internal mounting on 2.75″CF and 4.50″CF
Double density bolt holes for 2.75″ and 4.50″ CF ports
Internal Voume: 48.9 cu. in. (801 cc)
Weight: 7.37 lb. (3.34 kg)

Model #: MCF450-WeldClstr-E1C2
Part #: 53-330500 Categories: ,

Description

Weldable Clusters

Additional information

Weight 7.37 lbs
