4.50″ Perimeter Weld Flange

4.50″ Perimeter Weld Flange

$270.00

4.50″CF weldable tapped flange

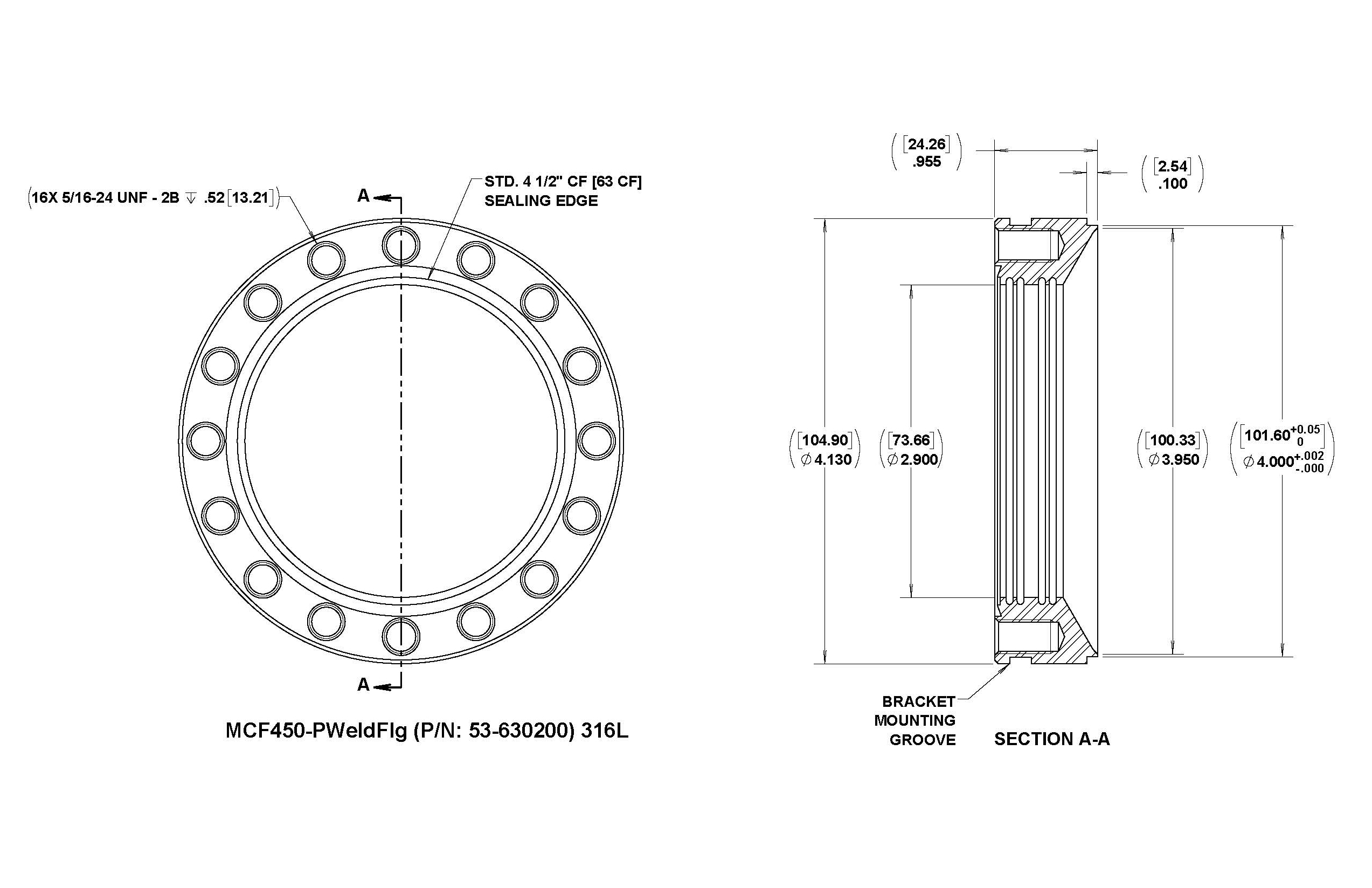

Model #: MCF450-PWeldFlg
Part #: 53-630200 Categories: ,

Description

Weld into spheres, tubes, cones and other shapes
Oversize conical bores improve chamber access
Tapped holes do not require nut clearance
Has an external groove for an External Mounting Clamp
Incorporates Grabber Grooves
Weight: 1.33 lbs. (0.61 kg)

Additional information

Weight 1.334 lbs
