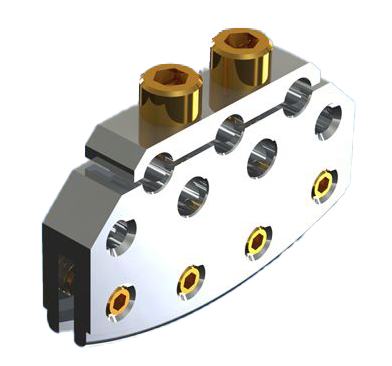

4.50″ Groove Grabber – Split Axial Clamping

4.50″ Groove Grabber – Split Axial Clamping

$222.00

Attaches to Grabber Grooves in 4.50″ CF ports in Kimball Physics vacuum chambers & fittings
Split design for clamping (3) 0.125″ Rods or Tubes parallel to port axis
(2) 4-40 tapped holes (2 screws incl) for mounting “C” Series eV Plates & Brackets parallel to port axis
(2) 4-40 tapped holes for mounting “C” Series eV Plates & Brackets perpendicular to port axis
(2) additional 0.125″ clearance holes parallel to port axis
See Related Products Section (to the right) for eV Parts options
All screws are gold plated for lubrication.
Weight: 0.02 lbs. (0.01 kg)



Out of stock

Part #: 53-740920 Categories: , ,

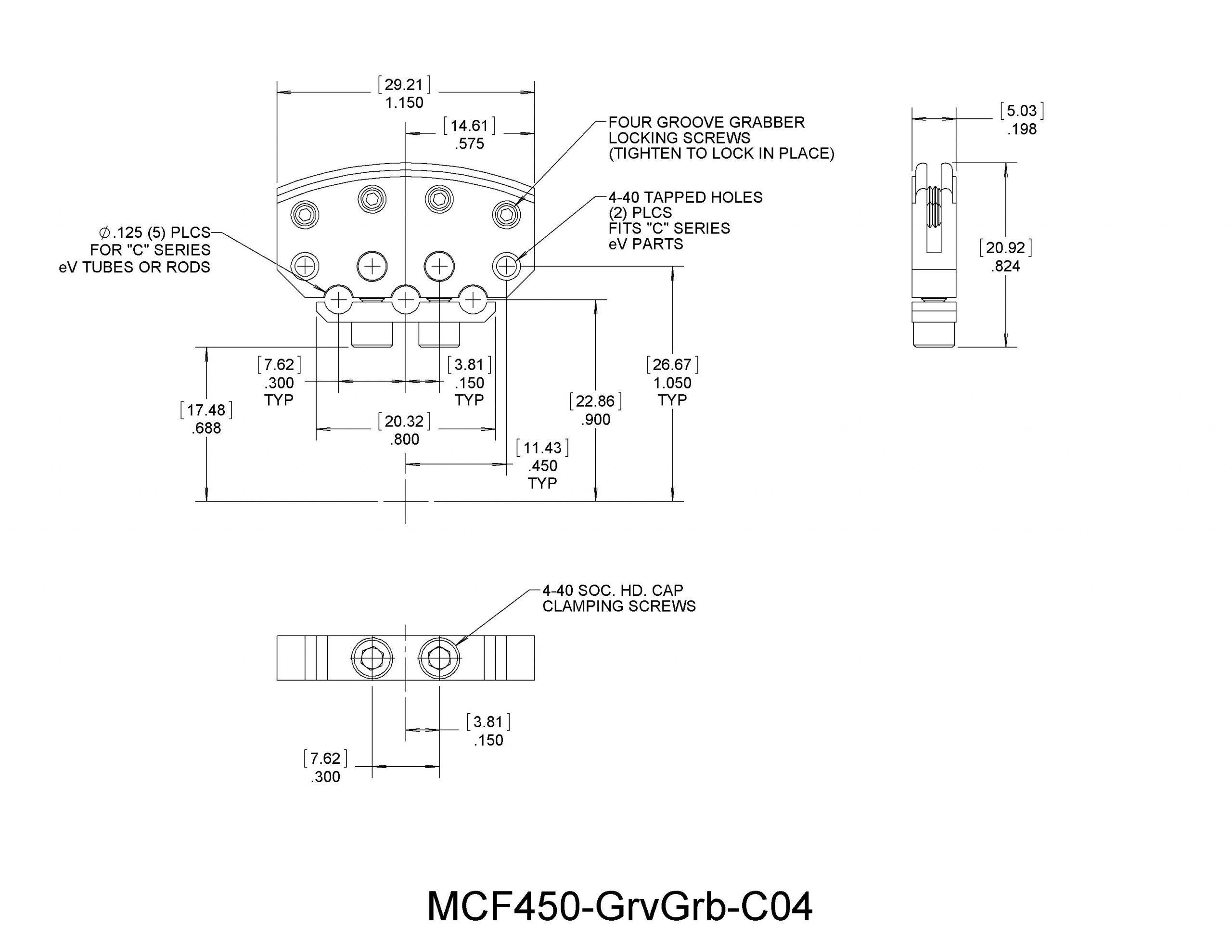

Model #: MCF450-GrvGrb-C04

Description

Attaches to 4.50″ CF ports in Kimball Physics’ vacuum chambers and fittings.
Mounts up to (3) “C” Series rods and tubes.
Has (2) additional clearance holes.
Mounts “C” Series eV plates and brackets, perpendicular and parallel to the CF axis.
Weight: 0.02 lbs. (0.01 kg)

Additional information

Weight 0.02 lbs
