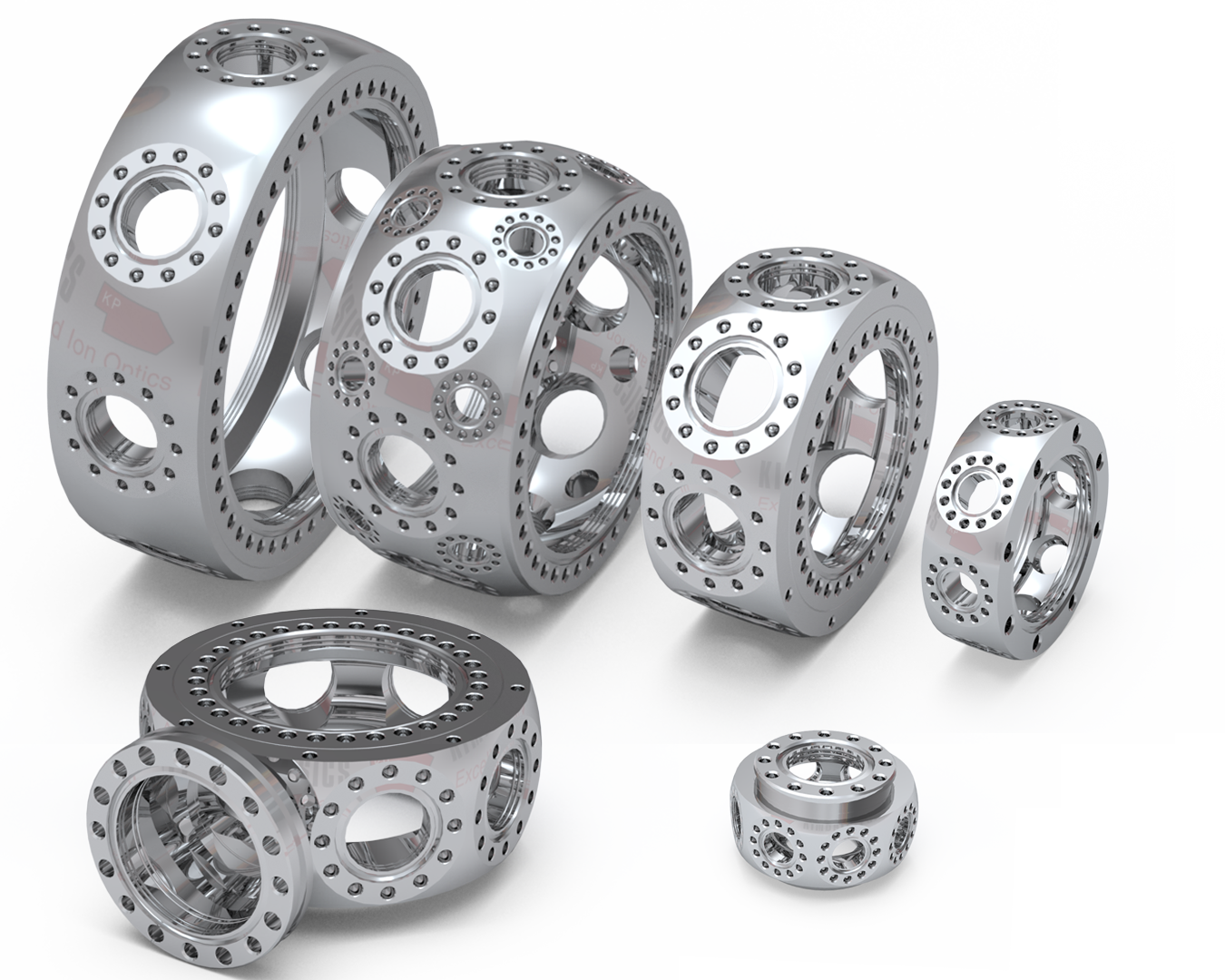

6.0″ Spherical Octagon – Vacuum Chamber with Pumping Port

6.0″ Spherical Octagon – Vacuum Chamber with Pumping Port

See specifications below.

See specifications below.

Part #: 53-181230 Categories: , ,
Model #: MCF600-SphOct-F2E1C7

Description

UHV vacuum chamber with improved conductance turbo pumping port.
(2) 6.00″ CF, (1) 4.50″ CF pump mount and (7) 2.75″ CF
Welded non-rotatable pumping port with external bracket mounting groove for turbo pump suport.
Grabber grooves for internal mounts on all ports.

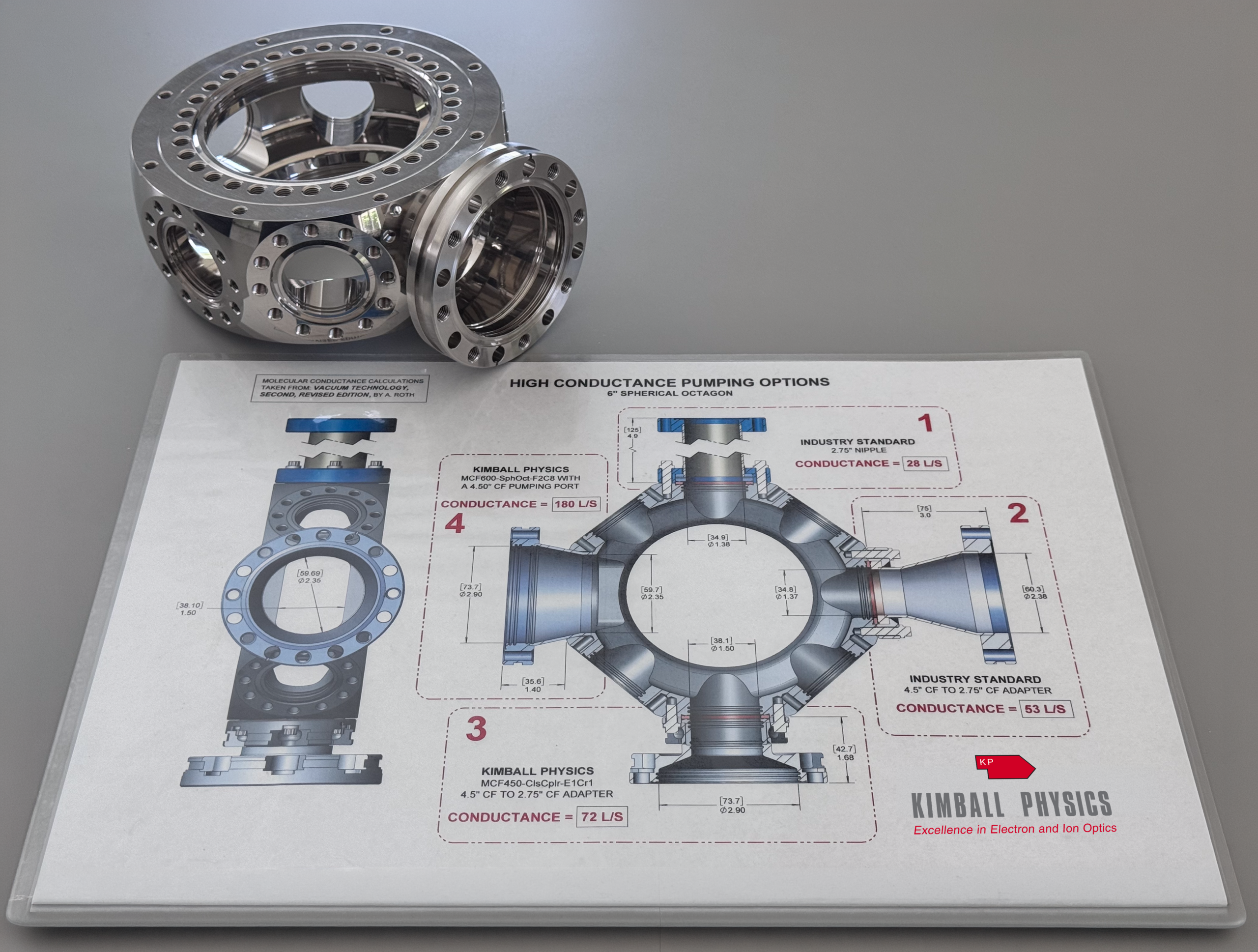

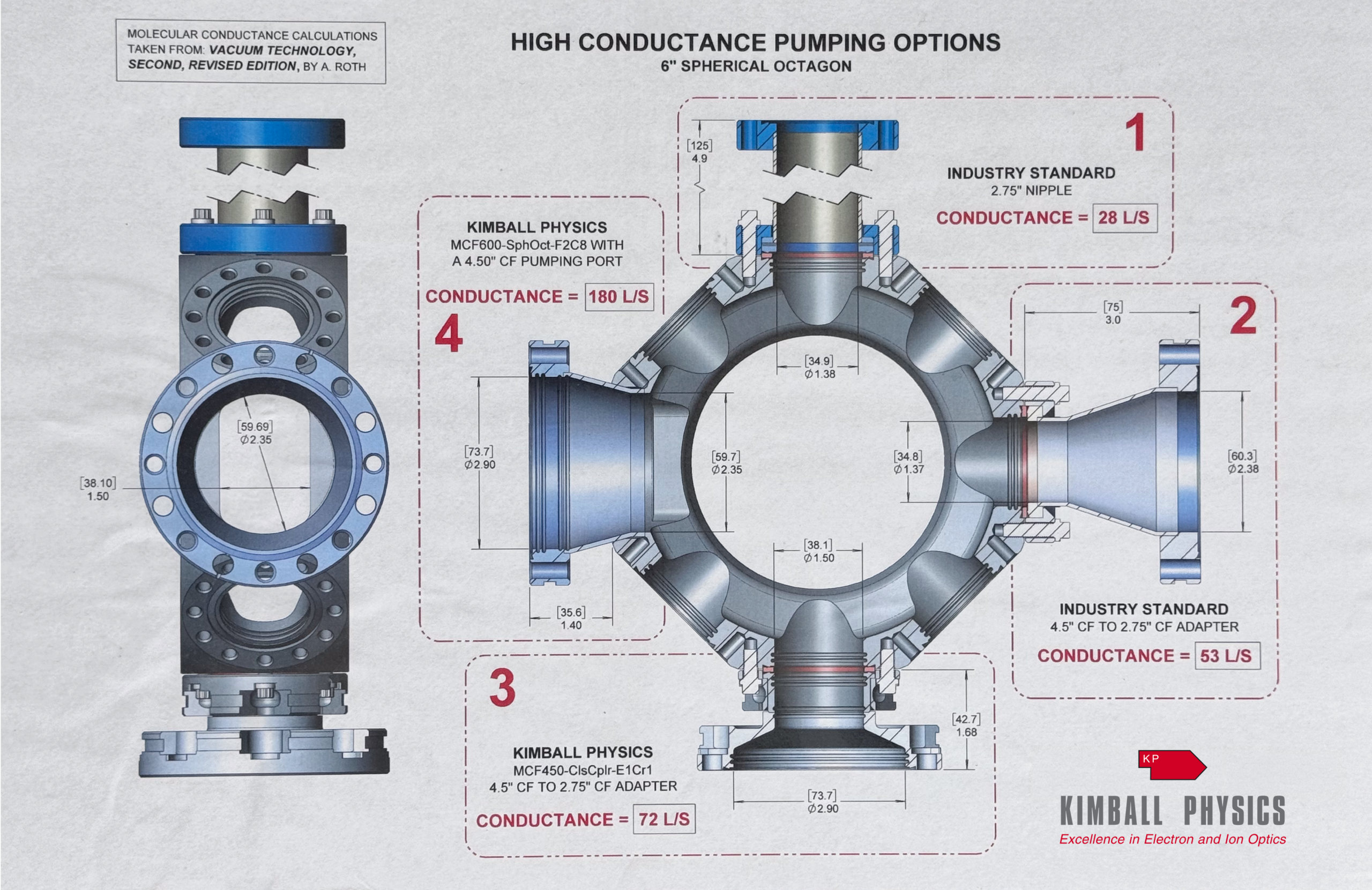

External Mounting capability with (8) bolt holes on 6 in. flange face which mates with MCF600-ExtBrkt-SM – the side mounted External Mounting Bracket (see bracket picture and drawing at left).
Spherical ID: 6.150″ (156.21 mm)
Spherical OD: 7.495 (190.37 mm)
316L stainless steel construction
Internal volume: 76.8 in. (1258.5 cc)
Weight: 11.56 lbs. (5.24 kg)
