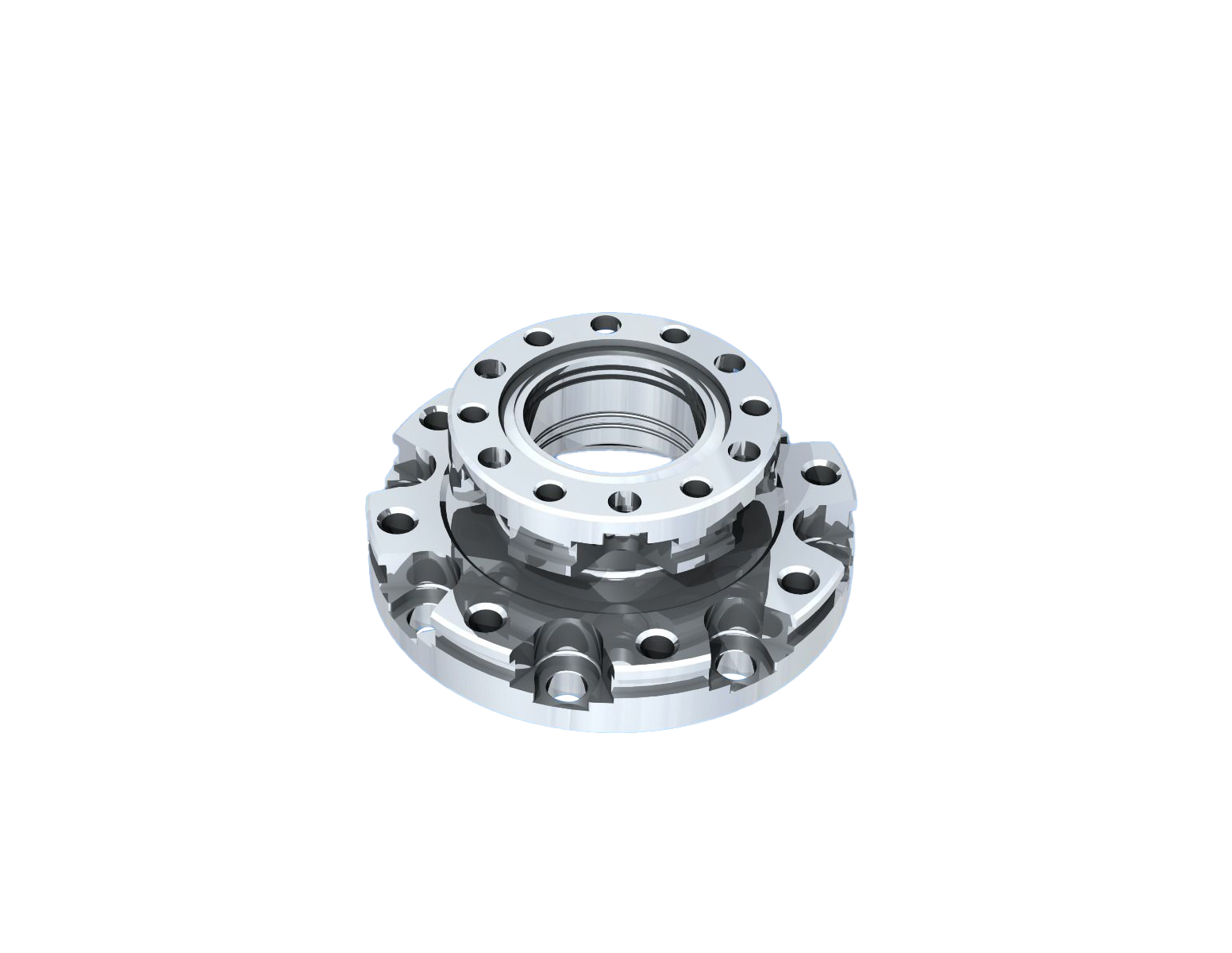

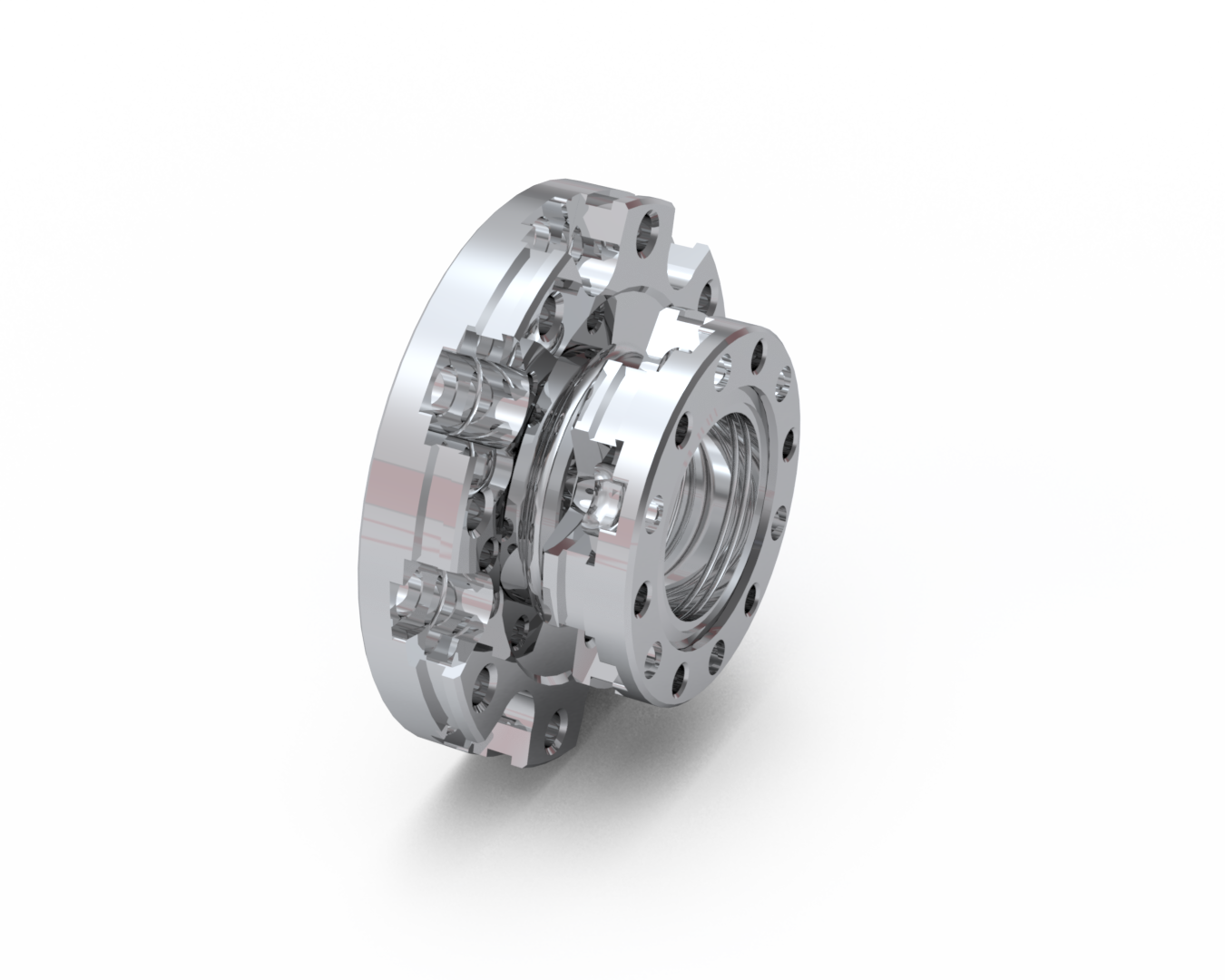

4.50” to 2.75” Close Coupler (Rotatable)

4.50” to 2.75” Close Coupler (Rotatable)

Reduces 4.50″CF to 2.75″CF
Alternating clear and tapped holes on both flanges
Incorporates one pair of Grabber Grooves per sealing surface

Reduces 4.50″CF to 2.75″CF
Alternating clear and tapped holes on both flanges
Incorporates one pair of Grabber Grooves per sealing surface

Part #: 53-610710 Categories: , ,
Model #: MCF450-ClsCplr-E1Cr1

Description

Large ID bores for low pumping conductance

316L stainless steel construction

Gasket Plane to Gasket Plane Length: 1.680” inch (42.67 mm)

Weight: 1.80 lbs. (0.82 kg)

Bolt Types:

  • 12-point-head 1/4-28 x ½ silver plated bolts on 2.75” flange
  • 12-point-head 5/16-24 x 3/4 silver plated bolts on 4.50” flange

Additional information

Weight 1.8 lbs
