Tantalum Disc Cathodes

Tantalum Disc Cathodes

$136.00$489.00

See specifications below.



Part #: - Categories: ,
Model #: ta-discs

Description

The Kimball Physics Tantalum Disc Cathode is a general purpose thermionic emitter. This refractory metal cathode is quite sturdy and provides stable and uniform electron emission for a wide variety of electron source applications.

  • General purpose planar disc cathode
  • Area source 0.005 – 0.02 cm2
  • Operating pressure < 10-5 torr
  • Emission up to mAs
  • 3 disc sizes

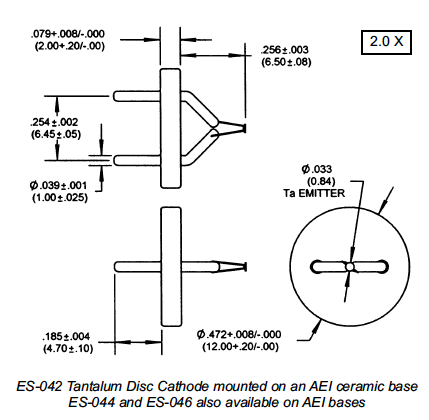

  • On AEI or compact CB-104/105 bases



Additional information

Weight 0.55 lbs
Cathode base

, ,

Cathode model number

, ,

Resources
