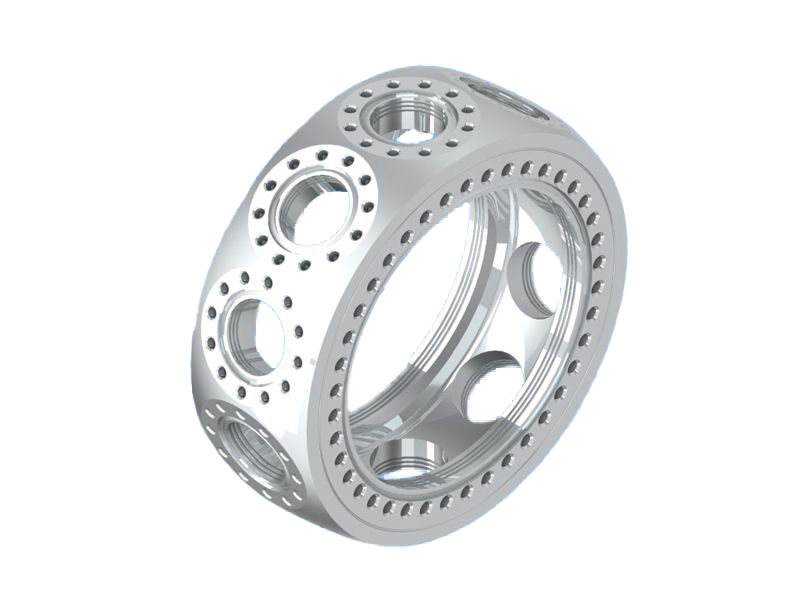

8.0″ Spherical Decagon – Vacuum Chamber

8.0″ Spherical Decagon – Vacuum Chamber

$9,336.00

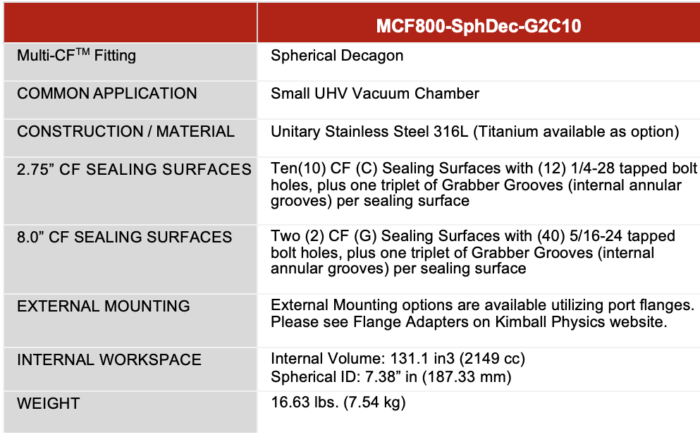

See specifications below.



Model #: MCF800-SphDec-G2C10
Part #: 53-190040 Categories: ,

Description

Spherical Decagon
UHV vacuum chamber
(2) 8.0″CF and (10) 2.75″CF
Grabber Grooves for internal mounts on all ports
Spherical ID: 7.38″ (187.33mm)
Internal volume: 131.1 cu. in. (2,149 cc)
Weight: 16.63 lbs (7.54 kg)

Additional information

Weight 16.63 lbs
