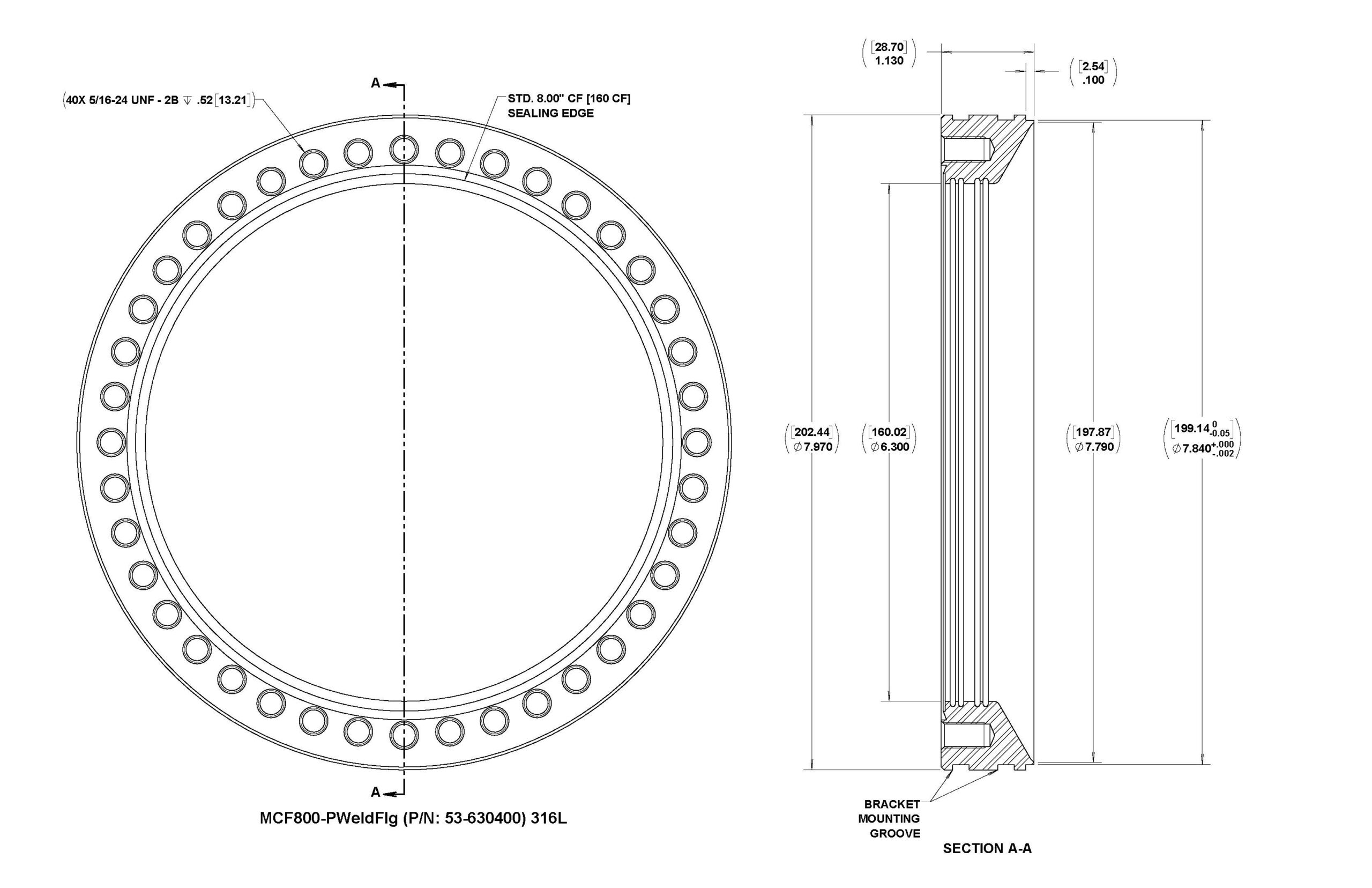

8.00″ Perimeter Weld Flange

8.00″ Perimeter Weld Flange

$554.00

8.00″CF Perimeter Weldable Tapped Flange

Sorry, this item is currently out of stock. Please contact us at info@kimphys.com if you're interested in this item.

Out of stock

Categories: , ,
Model #: MCF800-PWeldFlg

Description

Weld into spheres, tubes, cones and other shapes
Oversize conical bores improve chamber access
Tapped holes do not require nut clearance
Has two sets of grooves for External Mounting Clamps
Incorporates Grabber Grooves (for Internal Mounting system)
Weight: 4.31 lbs. (1.95 kg)

Additional information

Weight 4.308 lbs
