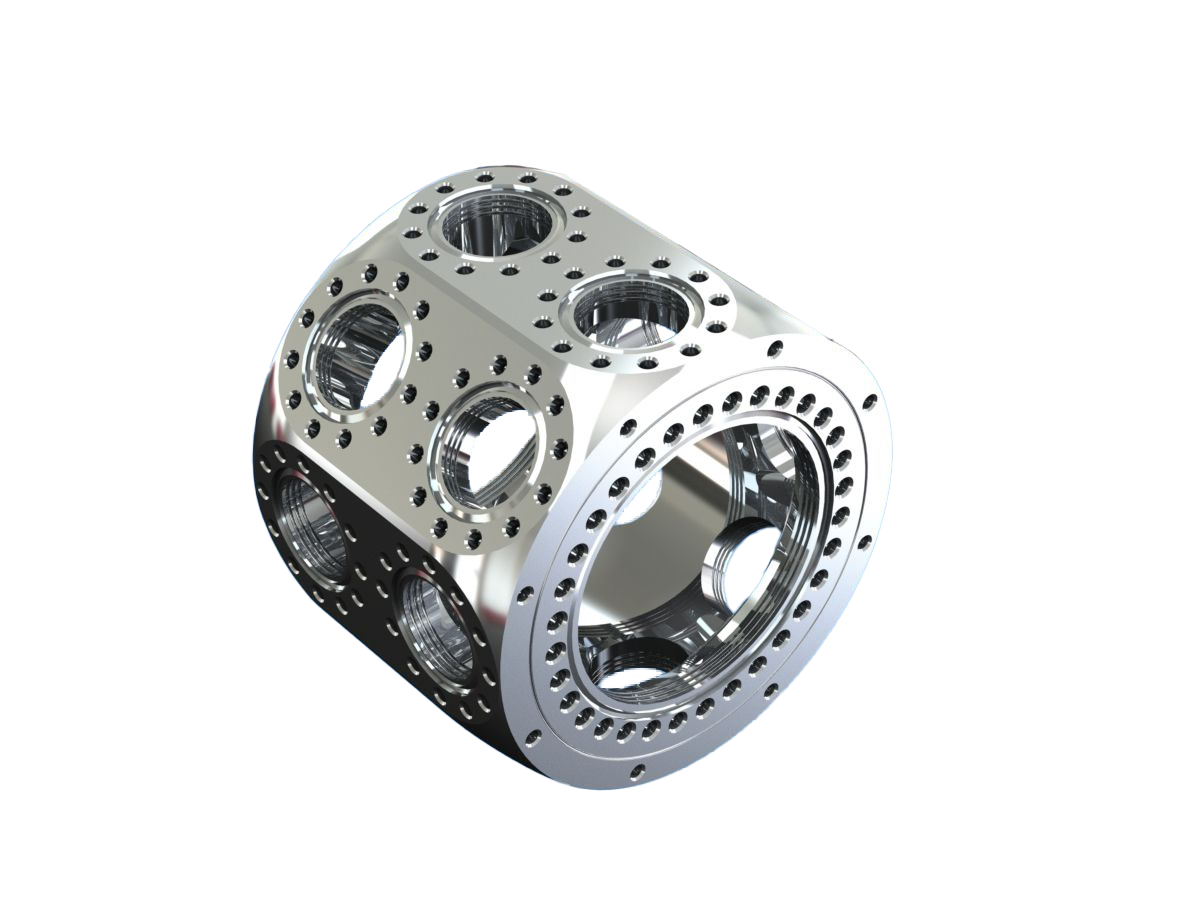

6.0″ Double Spherical Octagon – Vacuum Chamber

6.0″ Double Spherical Octagon – Vacuum Chamber

$11,808.00

See specifications below.



Model #: MCF600-DblSphOct-F2C16
Part #: 53-180360 Categories: ,

Description

UHV vacuum chamber
(2) 6.00″CF and (16) 2.75″CF
Grabber Grooves for internal mounts on all ports
Cylindrical ID: 5.75″ (146.05mm)
Internal volume: 144 cu. in. (2,359.7 cc)
Weight: 20.2 lbs (9.2 kg)

External Mounting capability with (8) bolt holes on 6 in. flange face which mates with MCF600-ExtBrkt-SM – the side mounted External Mounting Bracket (see bracket picture and drawing at left)

Additional information

Weight 20.2 lbs
