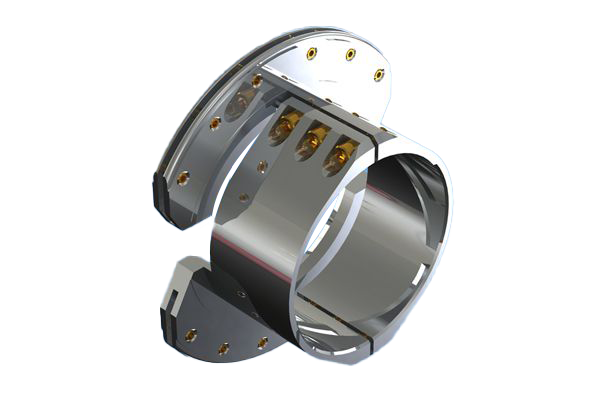

4.50″ Groove Grabber – 1.75″ Cylindrical

4.50″ Groove Grabber – 1.75″ Cylindrical

$1,086.00

Pricing indicated is for a pair of Groove Grabbers
Attaches to Grabber Grooves in 4.50″ CF ports in Kimball Physics vacuum chambers & fittings
Designed to clamp (1) 1.75″ cylinder
See Related Products Section (to the right) for eV Parts option
All screws are gold plated for lubrication
Weight: 0.31 lbs. (0.14 kg)

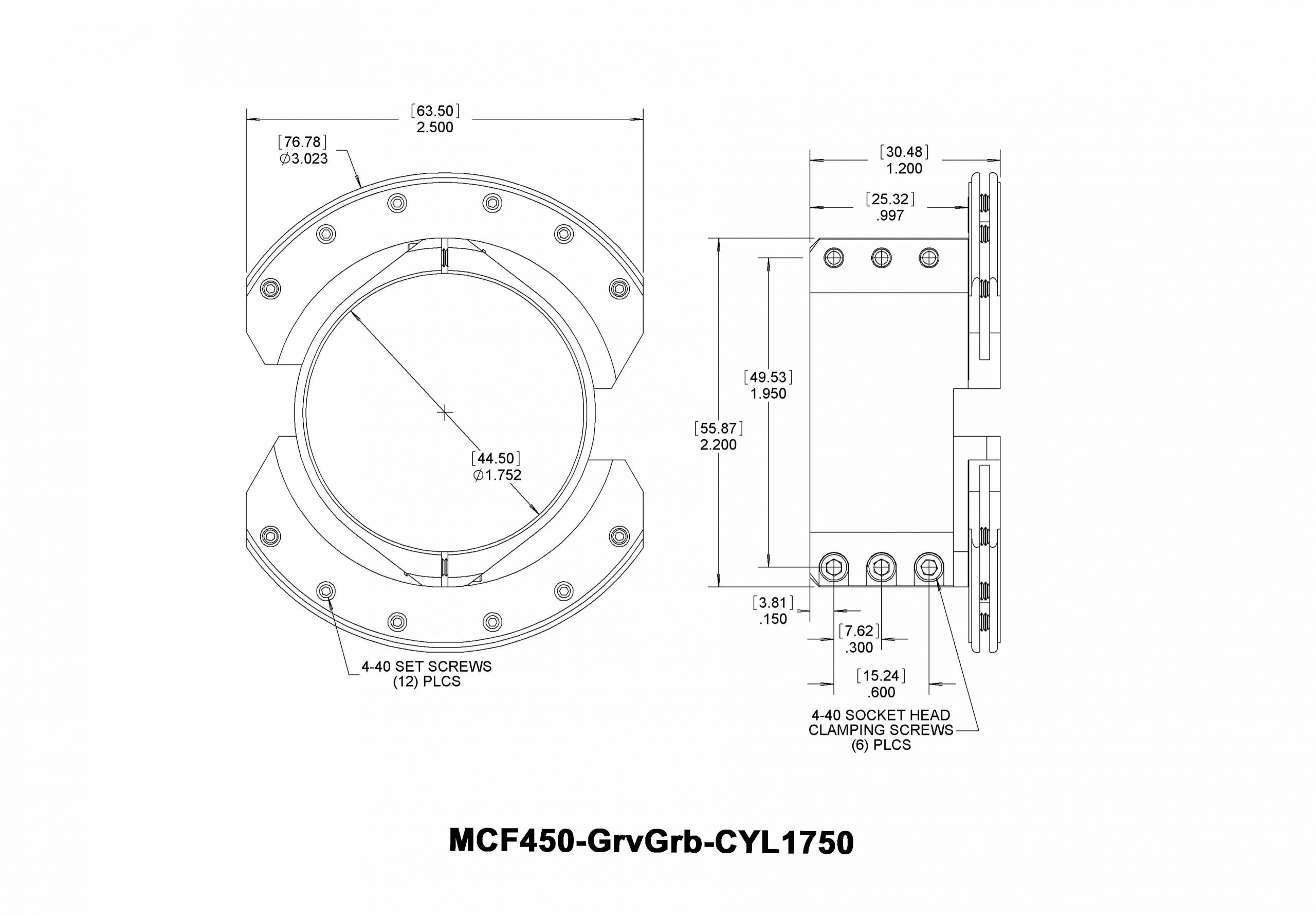

Model #: MCF450-GrvGrb-CYL1750
Part #: 53-740700 Categories: ,

Description

Groove Grabber

Additional information

Weight 0.31 lbs
