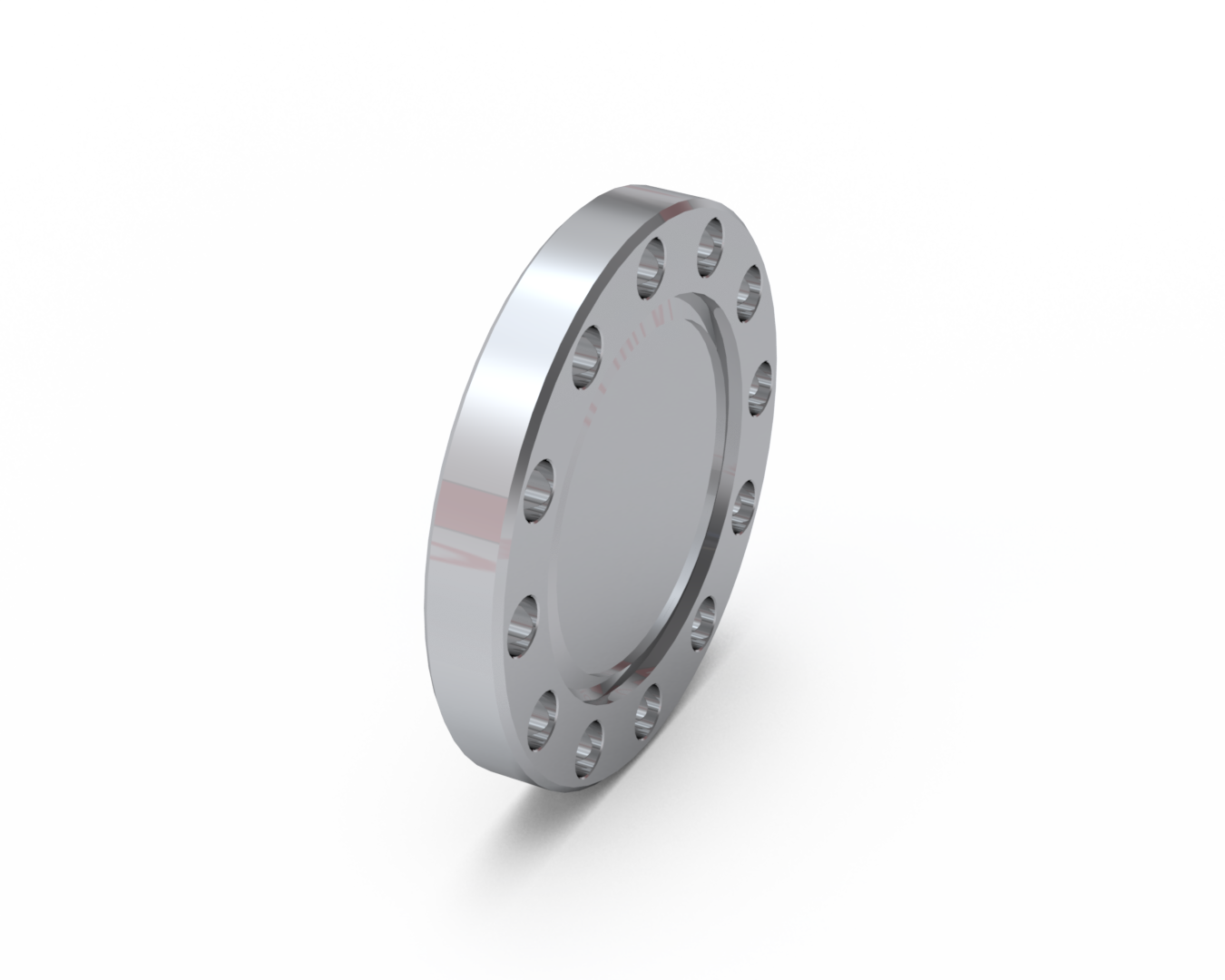

2.75″ Thin Flange (0.400″) – Blank

2.75″ Thin Flange (0.400″) – Blank


See specifications below.

Out of stock

Part #: 53-640600 Categories: , ,
Model #: MCF275-ThnFlg-C2-400


2.75″CF 0.400″ thick
Can be used as a spacer in a UHV system
Double density clear bolt holes
Machine custom apertures to allow for:
– Calibration of the pumping speed of a vacuum pump
– Determination of the out-gassing rate of a vacuum chamber
– Differential pumping.
Provide a platform for mounting experimental apparatus directly to the membrane
Made from 316L stainless steel
Weight: 0.49 lb. (0.22 kg)

Additional information

Weight 0.487 lbs
