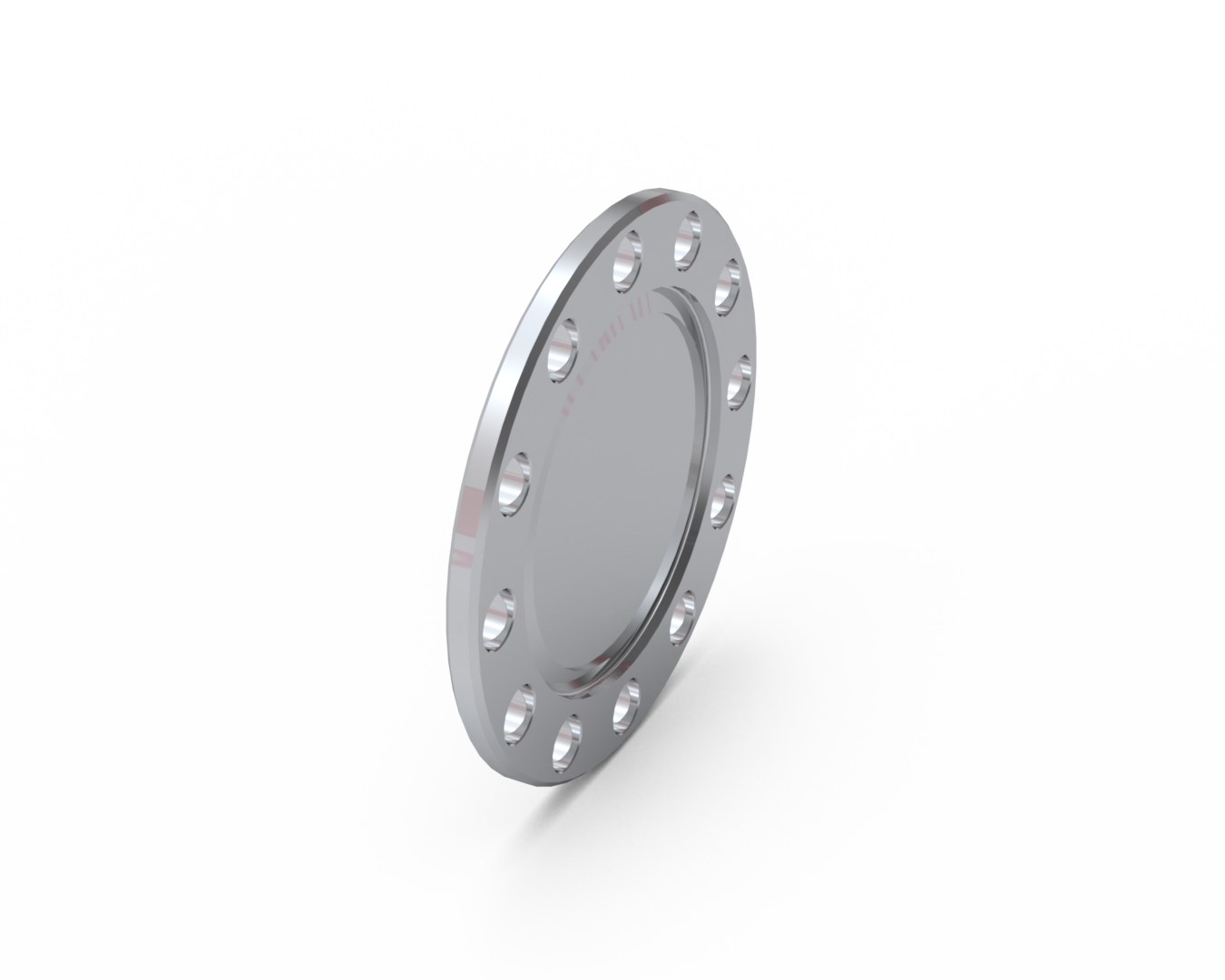

2.75″ Thin Flange (0.175″) – Blank

2.75″ Thin Flange (0.175″) – Blank

$206.00

See specifications below.

4 in stock



Part #: 53-640400 Categories: , ,
Model #: MCF275-ThnFlg-C2-175

Description

  • 2.75″ CF 0.175″ nominal “gasket to gasket” thickness (includes gasket crushing allowance) with actual thickness dimension of 0.155″
  • Can be used as a spacer in a UHV system
  • Double density clear bolt holes
  • Machine custom apertures to allow for:
    – Calibration of the pumping speed of a vacuum pump
    – Determination of the out-gassing rate of a vacuum chamber
    – Differential pumping.
  • Provide a platform for mounting experimental apparatus directly to the membrane
  • Made from 316L stainless steel
  • Weight: 0.15 lb. (0.07 kg)

Additional information

Weight 0.15 lbs
