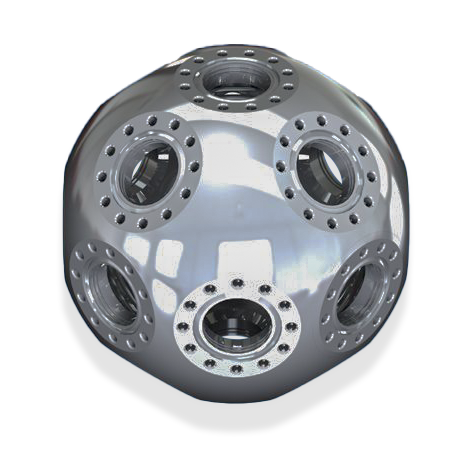

2.75″ Spherical Triple Octagon – Vacuum Chamber

2.75″ Spherical Triple Octagon – Vacuum Chamber

See specifications below.

See specifications below.

Model #: MCF275-SphTrpOct-C18
Part #: 53-100730 Categories: ,

Description

Triple Spherical Octagon
UHV vacuum chamber
(18) 2.75″ CF
Grabber Grooves for internal mounts on all ports
Spherical ID: 6.50″ (165.1 mm)
Internal Volume: 163.7 in.cu. (2682.6 cc)
Weight: 29.1 lbs (13.2 kg)
(2) welded ports

Additional information

Weight 29.1 lbs
