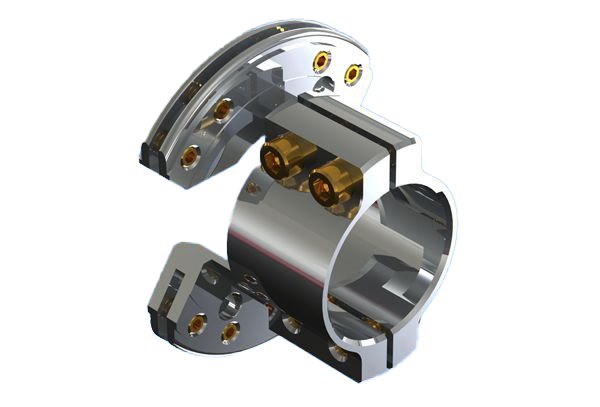

2.75″ Groove Grabber – 0.75″ Cylindrical

2.75″ Groove Grabber – 0.75″ Cylindrical


Pricing indicated is for a pair of Groove Grabbers.
Attaches to Grabber Grooves in 2.75″ CF ports in Kimball Physics vacuum chambers & fittings
Designed to clamp (1) 0.750″ cylinder
See Related Products Section (to the right) for eV Parts option
All screws are gold plated for lubrication
Weight: 0.08 lbs. (0.04 kg)

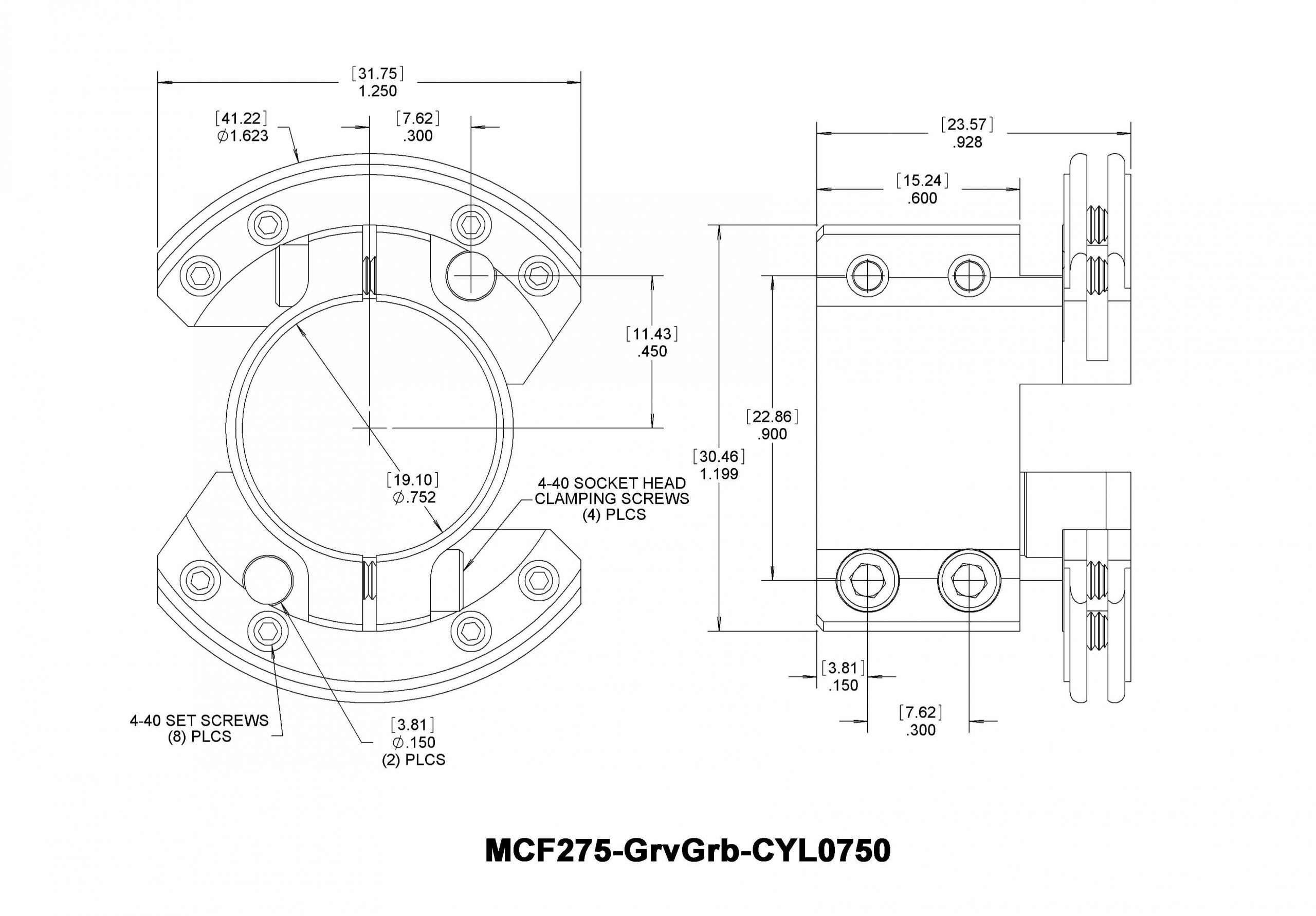

Model #: MCF275-GrvGrb-CYL0750
Part #: 53-720500 Categories: ,


Groove Grabber

Additional information

Weight 0.08 lbs
