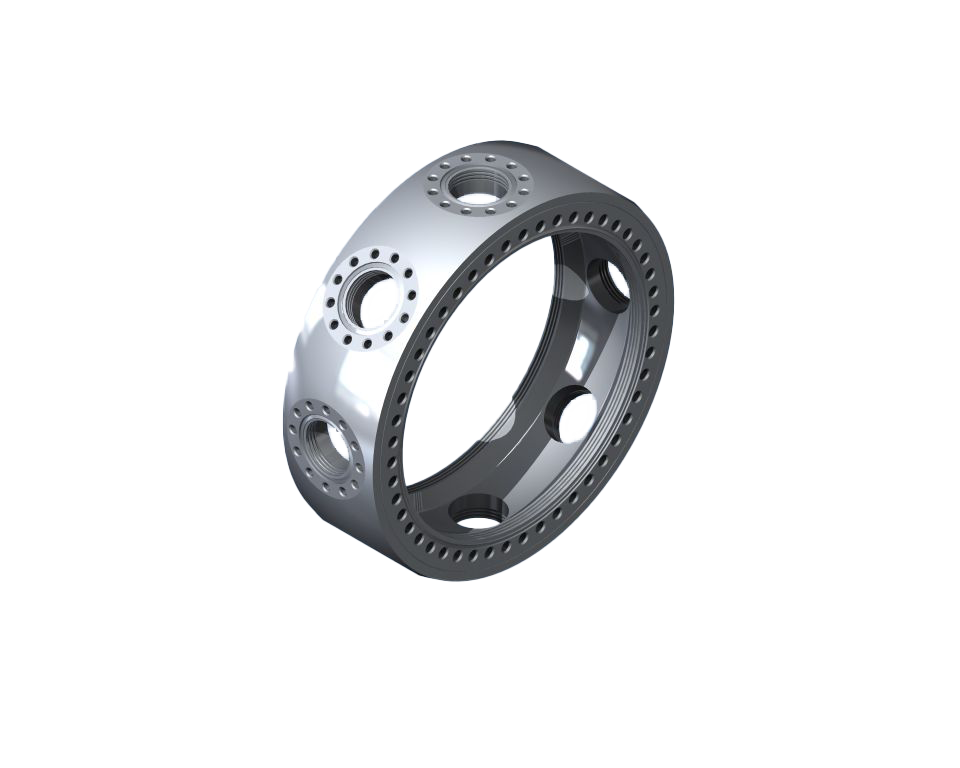

10.0″ Spherical Octagon – Vacuum Chamber

10.0″ Spherical Octagon – Vacuum Chamber

See specifications below.

See specifications below.

Model #: MCF1000-SphOct-H2C8
Part #: 53-181110 Categories: ,

Description

Spherical Octagon
UHV vacuum chamber
(2) 10.0″CF and (8) 2.75″CF
Grabber Grooves for internal mounts on all ports
Spherical ID: 9.15″ (350.3 mm)
Internal volume: 202.3 cu. in. (3,314 cc)
Weight: 21.64 lbs (9.82 kg)

Additional information

Weight 21.64 lbs
