Threaded Rod

Threaded Rod

$72.00

Many parts are available to assist in a variety of construction problems. Metal rods with the same diameter as the ceramic rod are furnished in several different lengths. These may be used in many ways but are mainly intended for mounting large structures.



Model #: TR Category:

Description

Made from stainless steel or molybdenum and are intended for mounting large structures. They screw into a variety of Groove GrabbersTMClamping Plate Assemblies and other Kimball components.

Stainless Steel products include:

SS-TR-6-32-12000 (Thread 6-32, length 12.0″)
SS-TR-4-40-12000 (Thread 4-40, length 12.0″)
SS-TR-0-80-12000 (Thread 0-80, length 12.0″)

Molybdenum product:

Mo-TR-0-80-6000 (Thread 0-80, length 6.0″)
(The Molybdenum rod is not available for multi-package discounts.)

The standard package for all Threaded Rods contains (1) part.

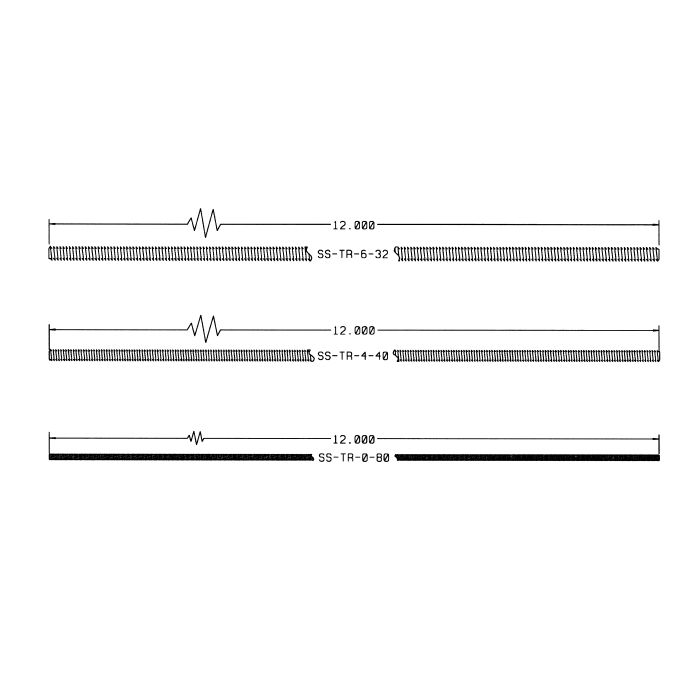

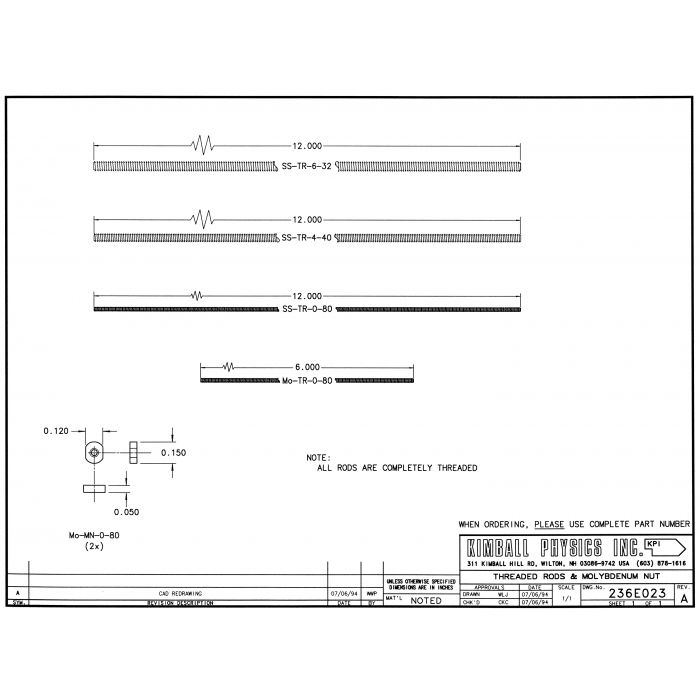

See Drawing above.

Additional information

Weight 0.55 lbs
