Rugged Phosphor Screens

Rugged Phosphor Screens


See specifications below.

Part #: - Categories: ,
Model #: PHOS-RP22


Phosphor: High Luminosity P-22 Blue
Ruggedized Phosphor Screen: uses binder to resist damage
Vacuum: works well in vacuums up to 10-8 torr, then possible outgassing at higher vacuums
Input: 1 W/cm2 max
Bakeable: up to 200o deg C
Backing Material:  Stainless Steel (SS) 304 or Conductive Glass
Standard Screen Sizes :  0.5″, 0.75″, 1.00″,and 1.50″ (inch) diameters

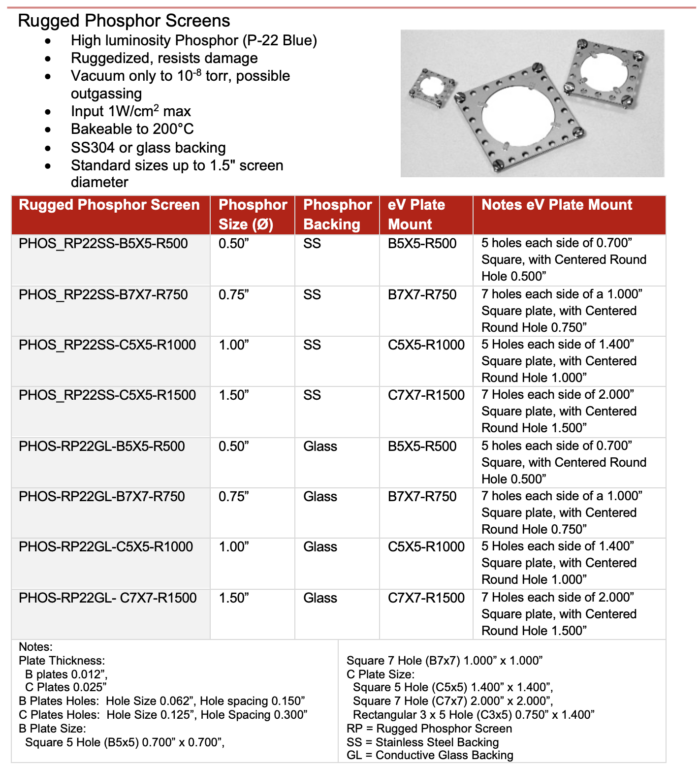

Rugged Screen Phosphor Specs


Additional information

Weight 1 lbs
Phosphor size / Base type

0.5" diameter, Stainless Steel, 0.75" diameter, Stainless Steel, 1.0" diameter, Stainless Steel, 1.5" diameter, Stainless Steel, 0.5" diameter, Conductive Glass, 0.75" diameter, Conductive Glass, 1.0" diameter, Conductive Glass, 1.5" diameter, Conductive Glass
