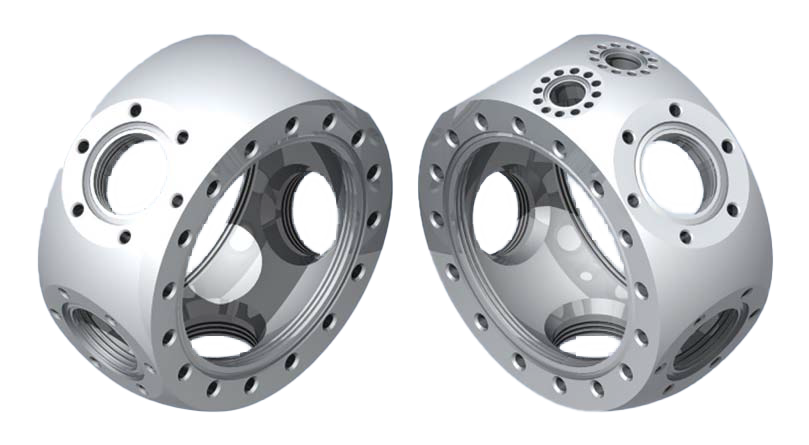

6.0″ Spherical Pentagon (With 2 minis) – Vacuum Chamber

6.0″ Spherical Pentagon (With 2 minis) – Vacuum Chamber

See specifications below.

See specifications below.

Model #: MCF600-SphPent-F2C5A2
Part #: 53-150100 Categories: ,

Description

UHV vacuum chamber
(2) 6.00″CF, (5) 2.75″CF and (2) 1.33″CF
Grabber Grooves for internal mounts on 2.75″CF and larger
Spherical ID: 4.80″ (180.34mm)
Internal volume: 53.4 cu. in. (875 cc)
Weight: 8.42 lbs (3.82 kg)
