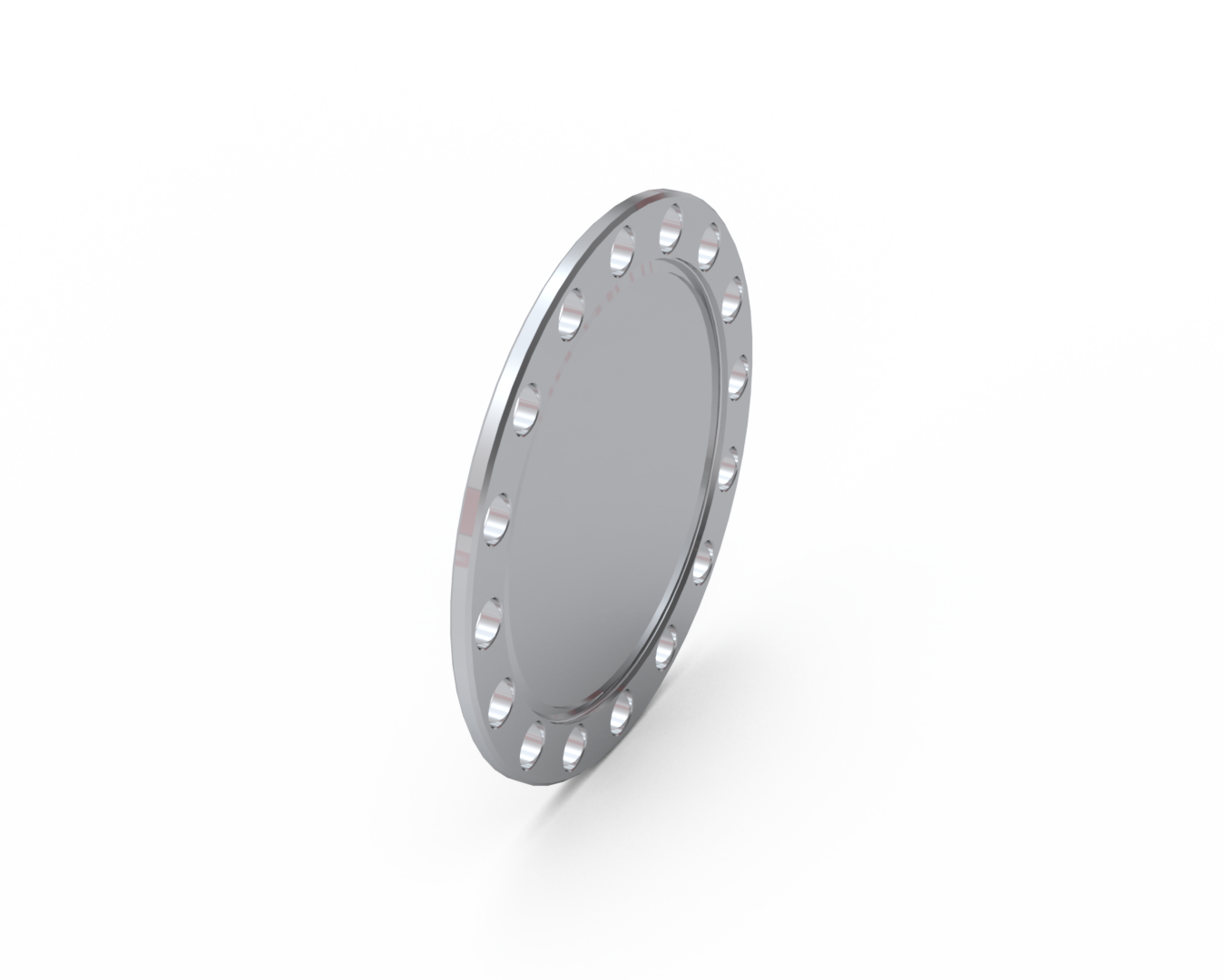

4.50″ Thin Flange – Blank (0.175″)

4.50″ Thin Flange – Blank (0.175″)


See specifications below.

5 in stock

Part #: 53-640800 Categories: , ,
Model #: MCF450-ThnFlg-E2-175


4.50″CF 0.175″ thick
Can be used as a spacer in a UHV system
Double density clear bolt holes
Machine custom apertures to allow for:
– Calibration of the pumping speed of a vacuum pump
– Determination of the out-gassing rate of a vacuum chamber
– Differential pumping.
Provide a platform for mounting experimental apparatus directly to the membrane
Made from 316L stainless steel
Weight: 0.30 lb. (0.14 kg)

Additional information

Weight 0.299 lbs
