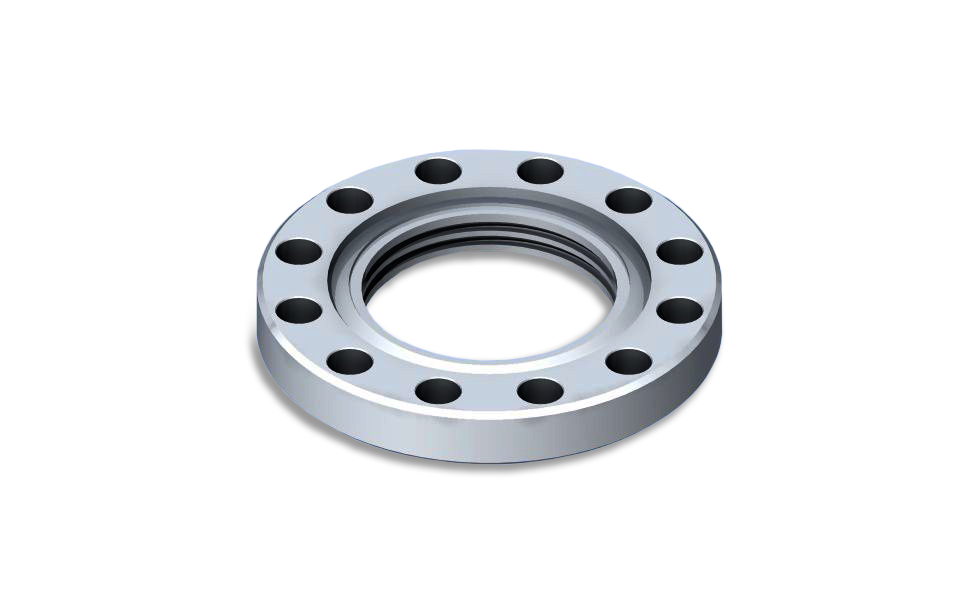

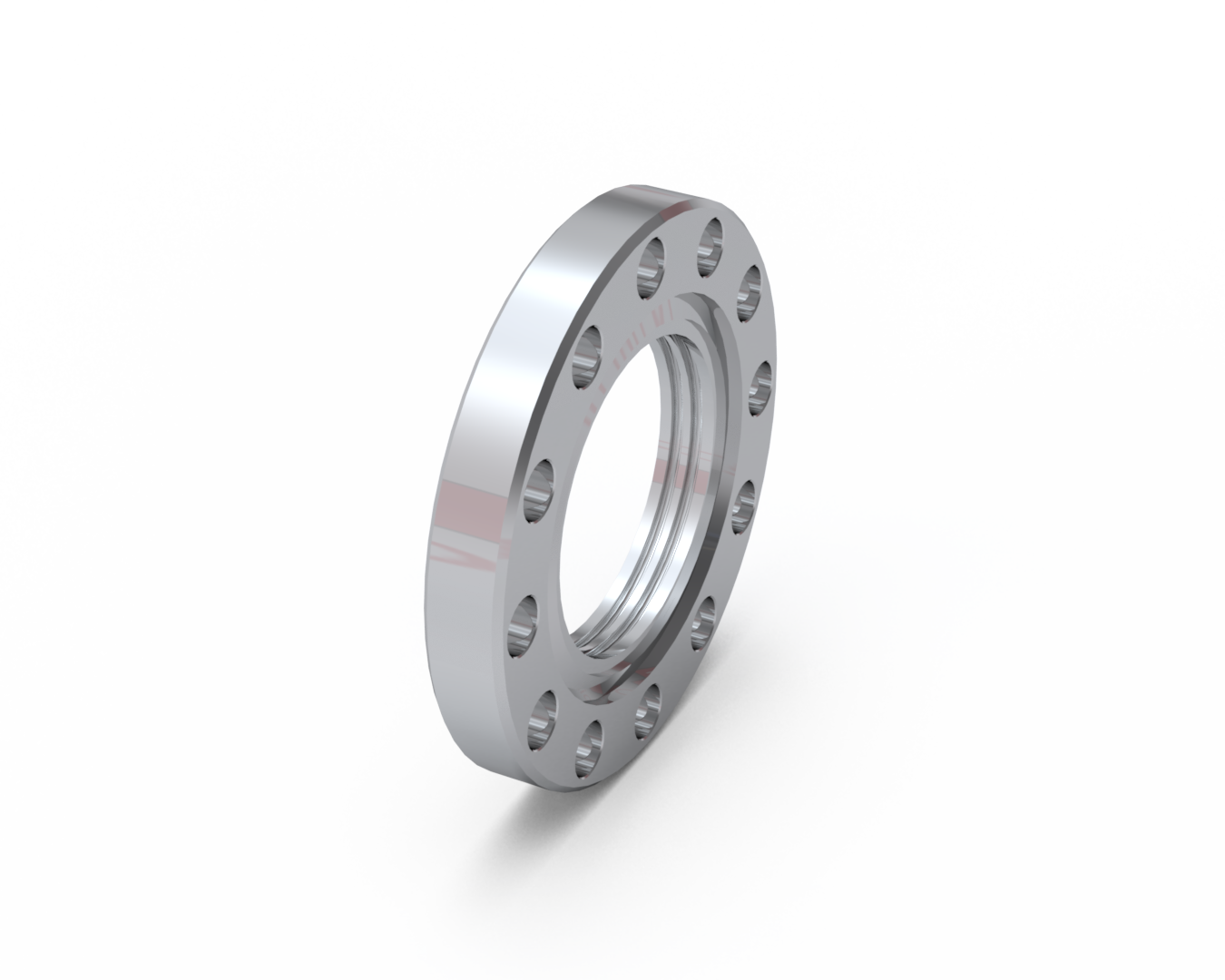

2.75″ Thin Flange -(0.400″) – Bore (1.500″)

2.75″ Thin Flange -(0.400″) – Bore (1.500″)

$206.00

See specifications below.

Out of stock

Part #: 53-640700 Categories: , ,
Model #: MCF275-ThnFlg-C2-400-ID1500GG

Description

  • 2.75″ CF 0.400″ nominal “gasket to gasket” thickness (includes gasket crushing allowance) with actual thickness dimension of 0.380″
  • Bore ID 1.500”
  • Can be used as a spacer in a UHV system
  • Double density clear bolt holes
  • Provides an easy method for inserting a phosphor screen or similar detector in front of a vacuum window
  • Imports the Groove Grabber (Internal Mounting) technology into a UHV system
  • Made from 316L stainless steel
  • Weight: 0.33 lb. (0.15kg)

Additional information

Weight 0.33 lbs
