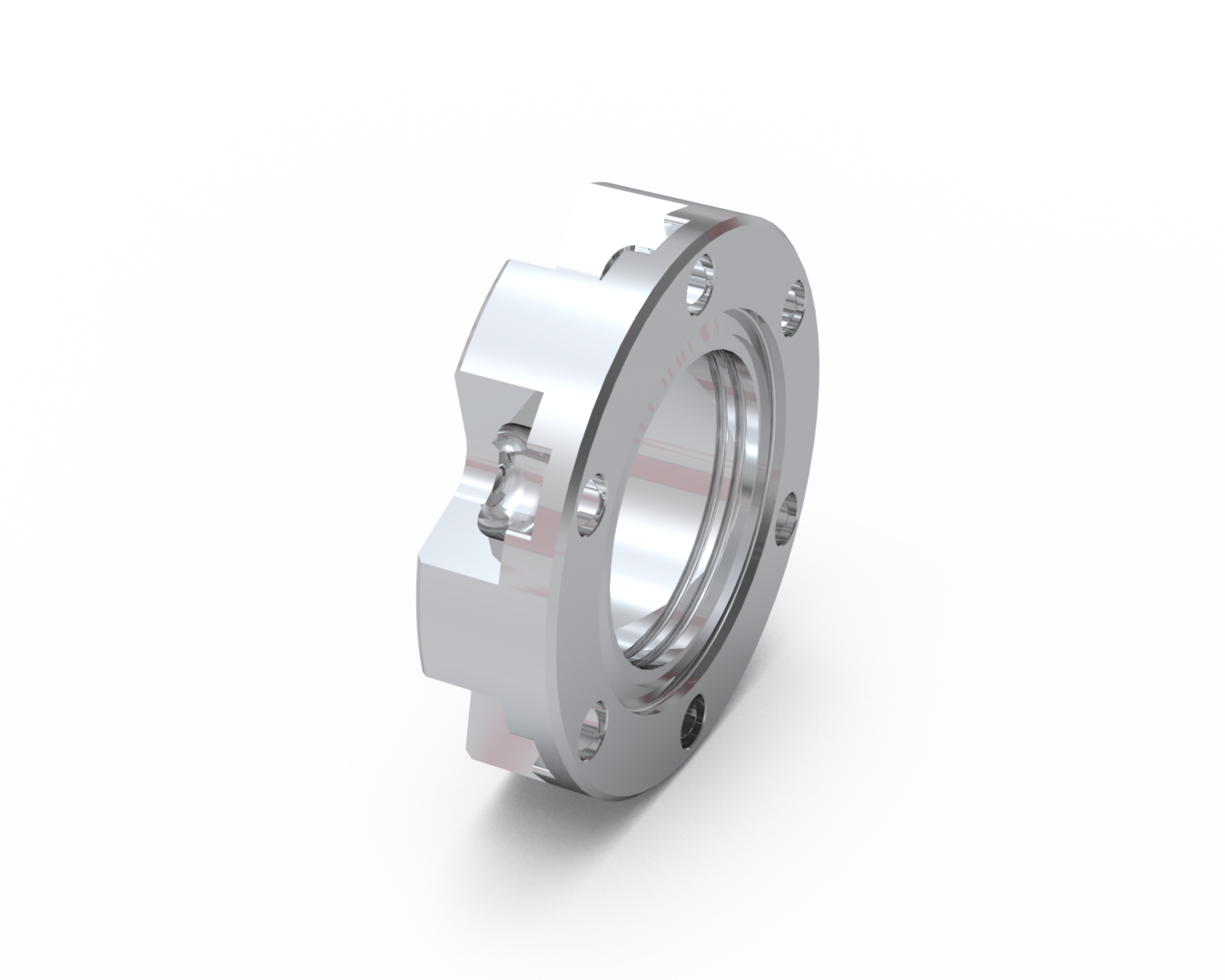

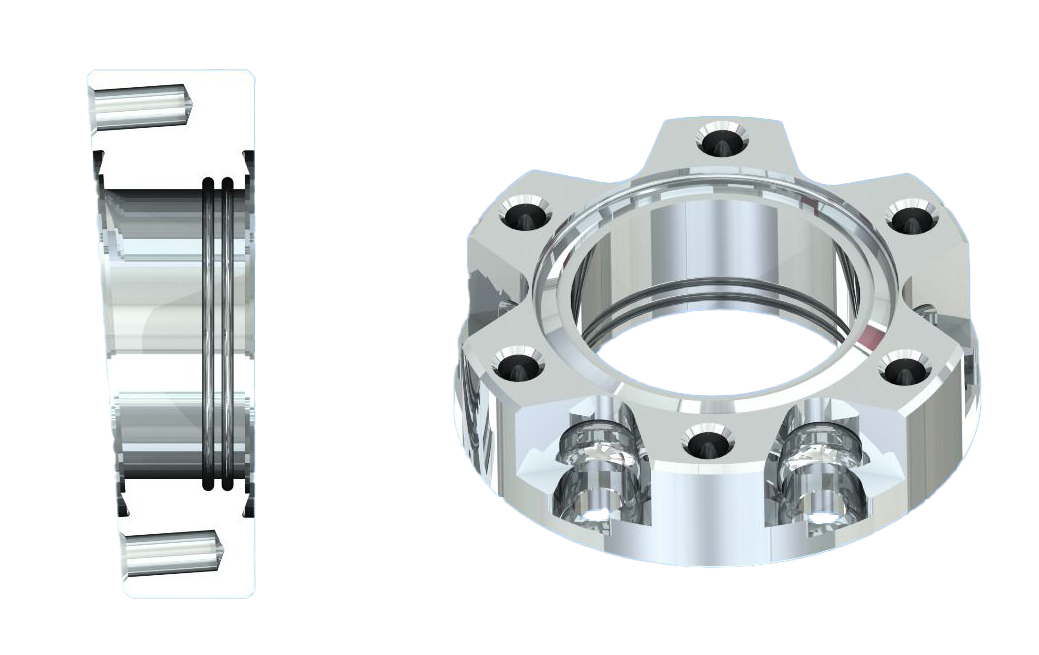

2.75″ Tilt Adapter – 4 Degree

2.75″ Tilt Adapter – 4 Degree

$348.00

Joins two 2.75″CF components, one with tapped holes and one with clear holes, at a 4° off-set axial angle. Design was initially created for laser applications where it can be advantageous to have a viewport tilted off axis to avoid damage due to reflected beams.



Model #: MCF275-TiltAdptr-C2-4Deg
Part #: 53-610330 Categories: ,

Description

  • 2.75″ CF Tilt Adapter
  • Kimball Physics expanded ID; 1.5″ diameter bore
  • Alternating clear and tapped holes
  • Non-rotatable
  • Unitary 316L stainless steel construction
  • Weight: 0.57 lb. (0.26 kg)
  • CUSTOM angles up to 10 degree available upon request

Additional information

Weight 0.57 lbs
