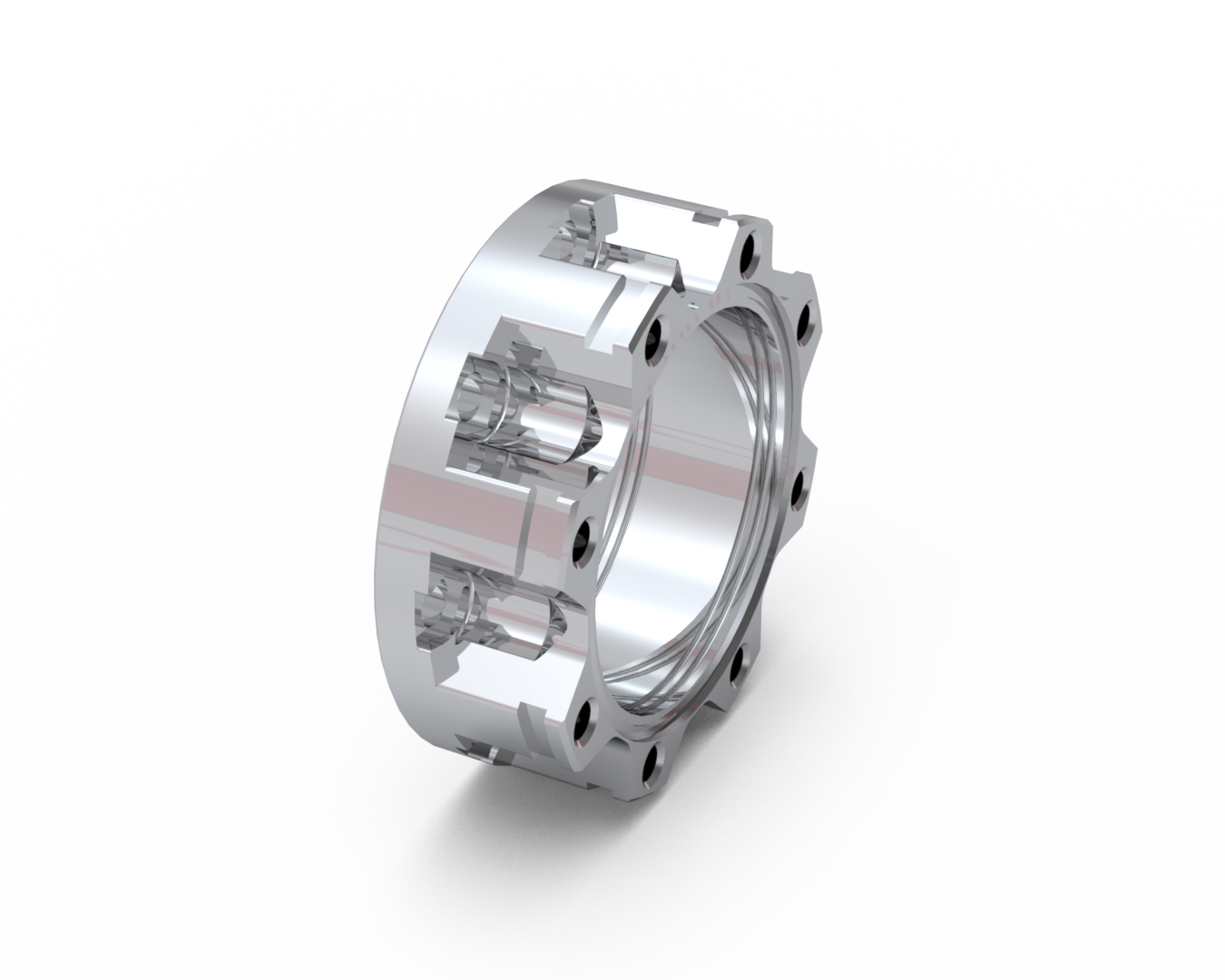

Flange Adapters interface with CF (Conflat®) fittings from Kimball Physics and other manufactures to provide additional options including:
-
- Internal mounting capabilities (Grabber Grooves)
- External mounting capabilities
- Reduction in the port aperture diameter from 2.75″ CF to 1.33″ CF.
- Adding additional ports.
Multi-CFTM UHV Flange Adapters: 2.75” to 1.33” CF Port

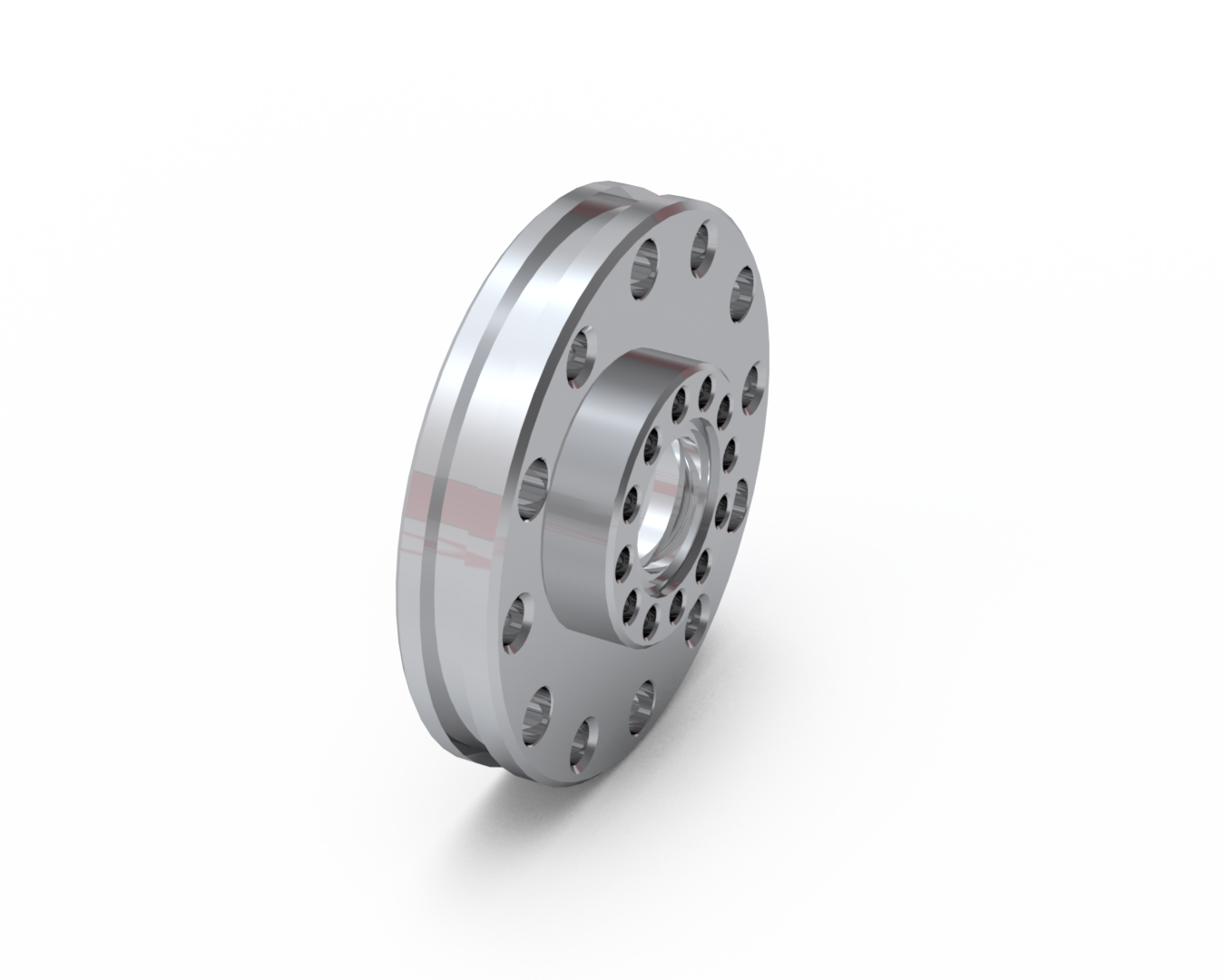

The MCF275-FlgAdptr-C1A1 Flange Adapter reduces a 2.75″CF to 1.33″CF port. with alternating clear and tapped holes on 2.75″CF. Includes Groove Grabber capability to any UHV system. Also includes an External Groove for External Mounting Brackets.
NEW: Multi-CFTM UHV Flange Adapters: 2.75” to 0.95” CF Ports
The MCF275-FlgAdptr-C1X2 and MCF275-FlgAdptr-C1X3 Flange Adapters enable a single 2.75” CF port to provide either two (2) or three (3) 0.95” CF sub-miniature ports. The flange adapters also provide an external outside diameter OD channel that can be used for external mounting.
The flange adapters are precision CNC fabricated from a single piece of stainless steel and are UHV compatible. The axis of the sub-mini ports is slightly angled radially outward to provide more clearance for any attachments, such as electrical connectors to our 0.95” CF sub-mini Feedthroughs.
To LEARN MORE about our complete product line of Multi-CF Vacuum Fittings Flange Adapters, please visit our Learning Center Overview of Multi-CF Systems and Hardware: Flange Adapters, Miniature and Sub-Miniature Multi-CF Hardware or refer to our Multi-CF Fittings-Flange Adapters overview document (PDF).
