4.50″ Groove Grabber – Transverse Tapped Mounting

4.50″ Groove Grabber – Transverse Tapped Mounting

$180.00

Attaches to Grabber Grooves in 4.50″ CF ports in Kimball Physics vacuum chambers & fittings

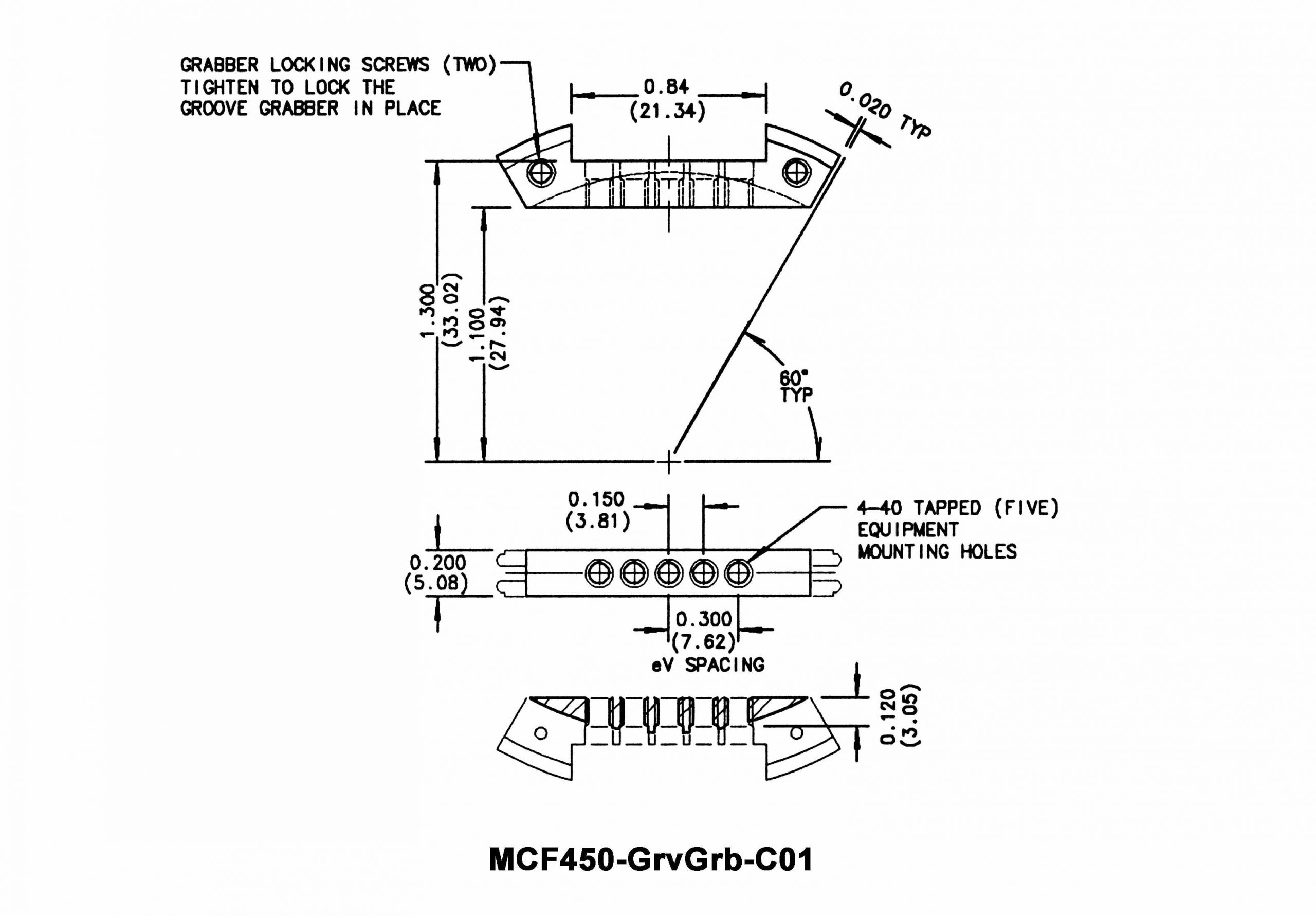

(5) 4-40 tapped holes (3 screws incl) for mounting “C” Series eV plates & brackets parallel to port axis
All screws are gold plated for lubrication
See Related Products Section (to the right) eV Parts options
Weight: 0.01 lbs. (0.004 kg)



Model #: MCF450-GrvGrb-C01
Part #: 53-740100 Categories: ,

Description

Internal mounting system
Transverse tapped mounting
Attach to Grabber Grooves in Kimball Physics chambers & fittings
Compatible with eV parts
Fits 4.50″ CF

Additional information

Weight 0.009 lbs
