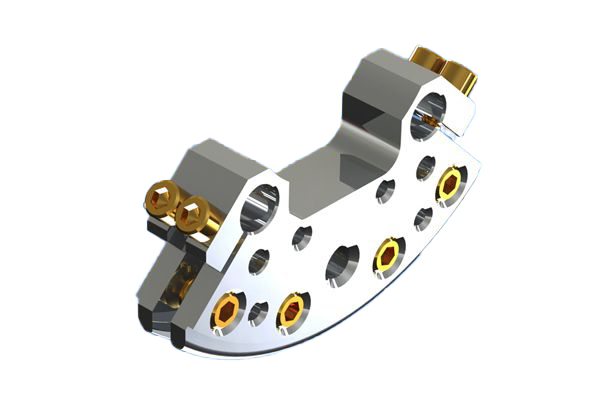

2.75″ Groove Grabber – Centering

2.75″ Groove Grabber – Centering

$204.00

Attaches to Grabber Grooves in 2.75″ CF ports in Kimball Physics vacuum chambers & fittings

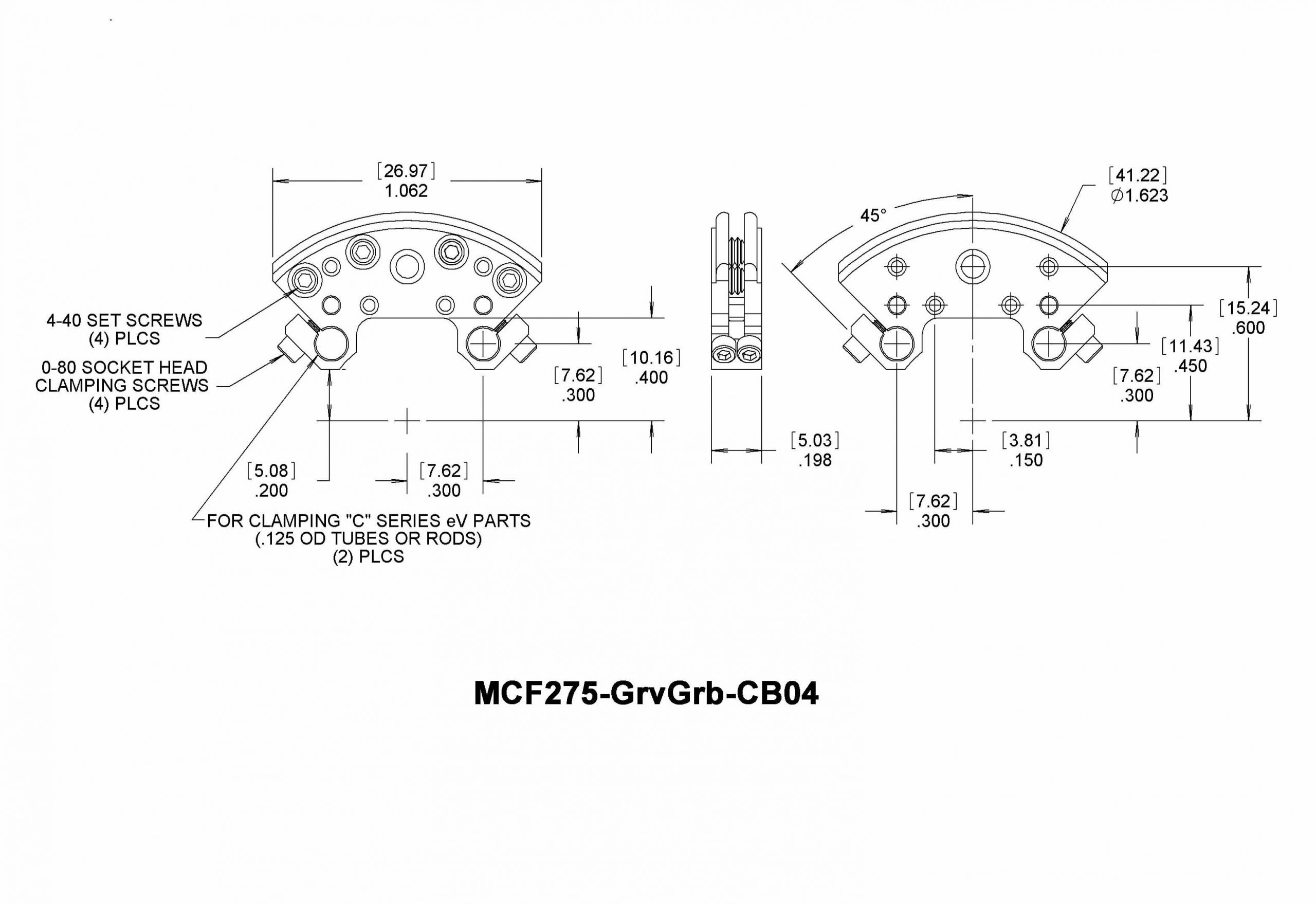

Designed to clamp (2) 0.125″ rods which are spaced to center eV plates or Element Clamps
(1) 4-40 tapped hole for mounting “C” Series eV plates & brackets perpendicular to port axis
(4) 0-80 tapped holes for mounting “B” Series eV plates & brackets perpendicular to port axis
See Related Products Section (to the right) for eV Parts options
All screws are gold plated for lubrication



Model #: MCF275-GrvGrb-CB04
Part #: 53-720400 Categories: ,

Description

Groove Grabber

Additional information

Weight 0.55 lbs
