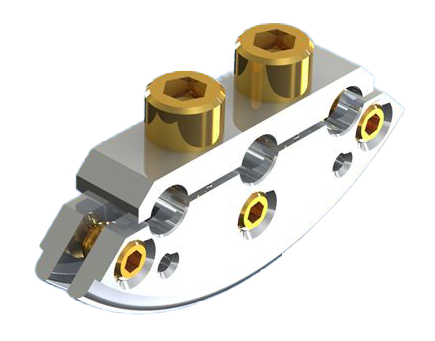

2.75″ Groove Grabber – Split Axial Clamping

2.75″ Groove Grabber – Split Axial Clamping

$234.00

See specifications below.

7 in stock



Part #: 53-720200 Categories: , ,

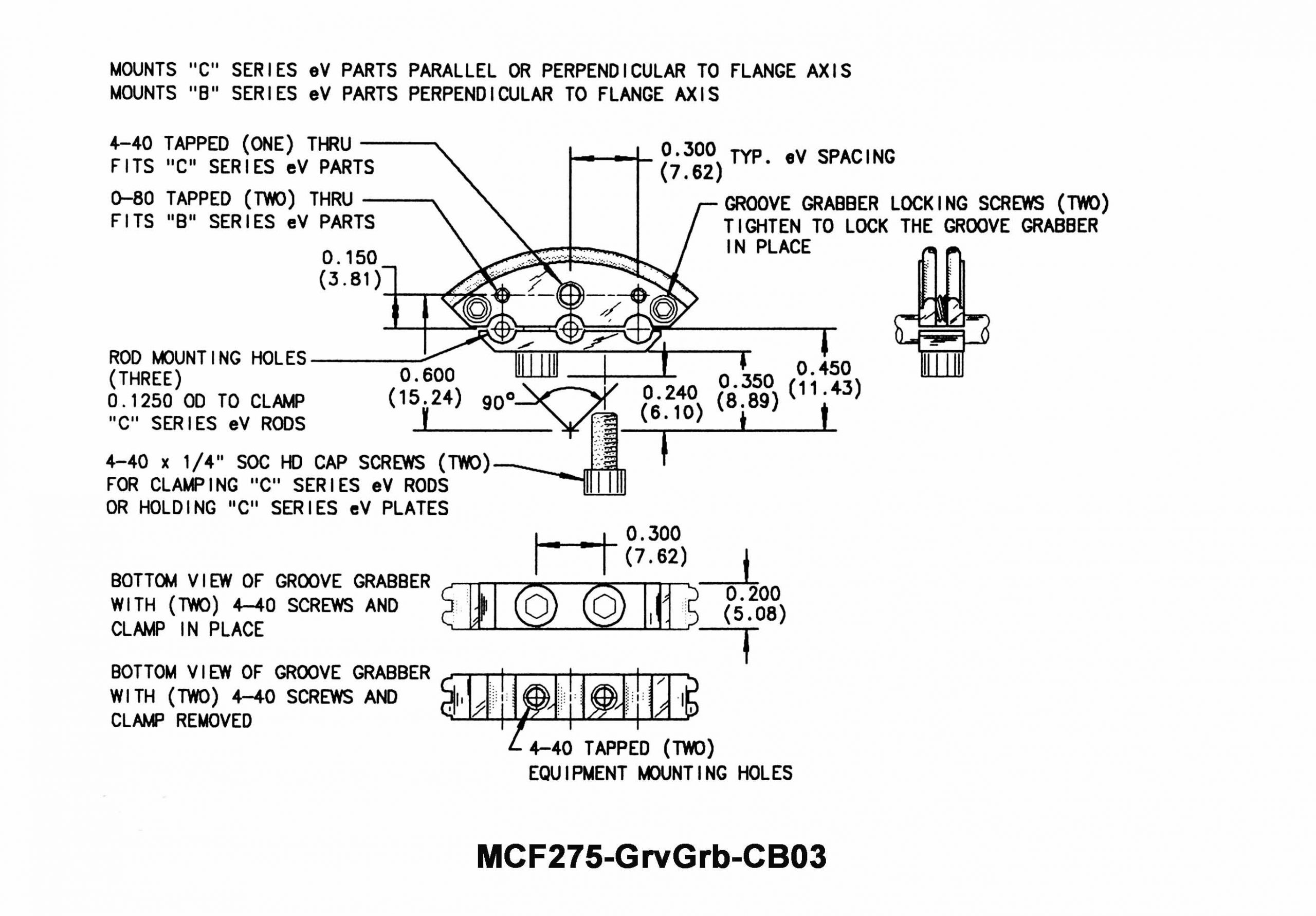

Model #: MCF275-GrvGrb-CB03

Description

Attaches to Grabber Grooves in 2.75″ CF ports in Kimball Physics vacuum chambers & fittings
Split design for clamping (3) 0.125″ rods or tubes parallel to port axis
(2) 4-40 tapped holes (2 screws included) for mounting “C” Series eV Plates and Brackets parallel to port axis
(1) 4-40 tapped hole for mounting “C” Series eV Plates and Brackets perpendicular to port axis
(2) 0-80 tapped holes for mounting “B” Series eV Plates and Brackets perpendicular to port axis
See Related Products Section (to the right) for eV Parts options
All screws are gold plated for lubrication
Weight: 0.01 lbs. (0.004 kg)

Additional information

Weight 0.012 lbs
