Heavy Duty Groove Grabber Assemblies CF275 – CF1000

Heavy Duty Groove Grabber Assemblies CF275 – CF1000

Heavy Duty Groove Grabbers offer a fully customizable mounting plate which utilizes a 20° taper lock design to interface with the Groove Grabbers. The taper lock makes the mounting plate capable of supporting heavy loads while accurately centering the bore inside the vacuum chamber.

Email

Heavy Duty Groove Grabbers offer a fully customizable mounting plate which utilizes a 20° taper lock design to interface with the Groove Grabbers. The taper lock makes the mounting plate capable of supporting heavy loads while accurately centering the bore inside the vacuum chamber.

Part #: - Categories: , ,
Model #: MCFXXX-GrvGrb-H-Blank

Description

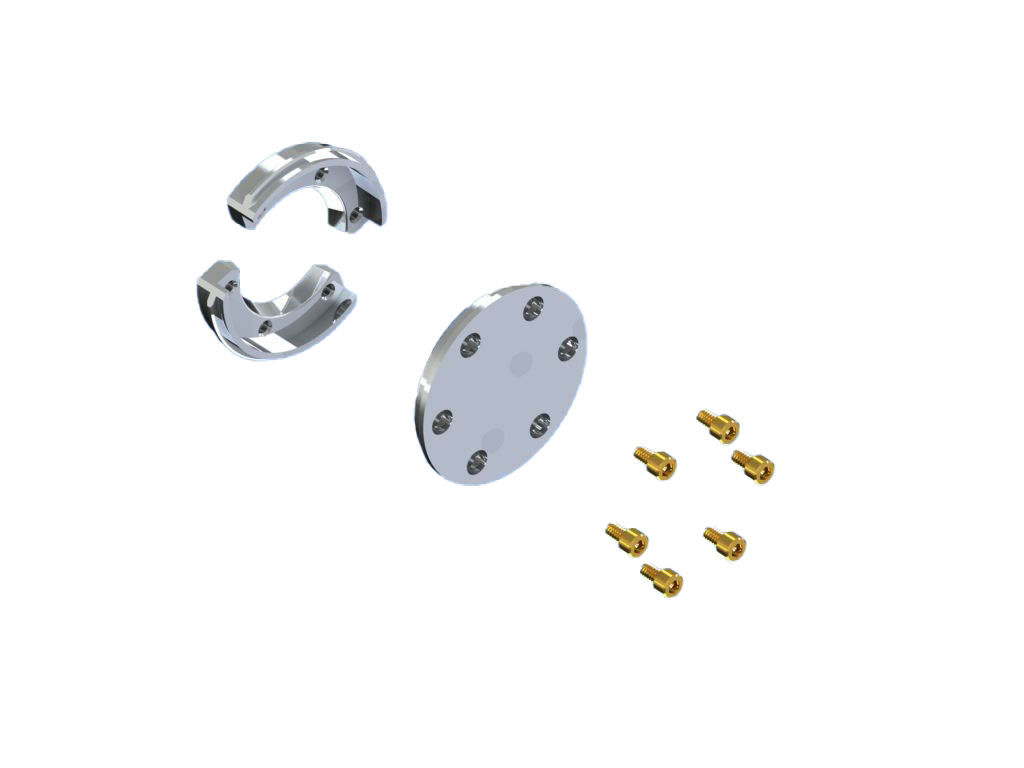

Assemblies include Groove Grabbers, blank mounting plate and required screws.

  • Screws are 18-8 SS and are gold plated for lubrication
  • Groove Grabbers and Mounting Plate are 316L SS
  • A maximum 0.700 diameter center bore can be machined in to the mounting plate

Assemblies are available for:

2.75″CF with 0.700″ max center bore
4.50″CF with 2.00″ max center bore
6.00″CF with 3.40″ max center bore
8.00″CF with 5.40″ max center bore
10.0″CF with 7.40″ max center bore

See Resources tab for Step files.

Additional information

Weight 0.55 lbs
